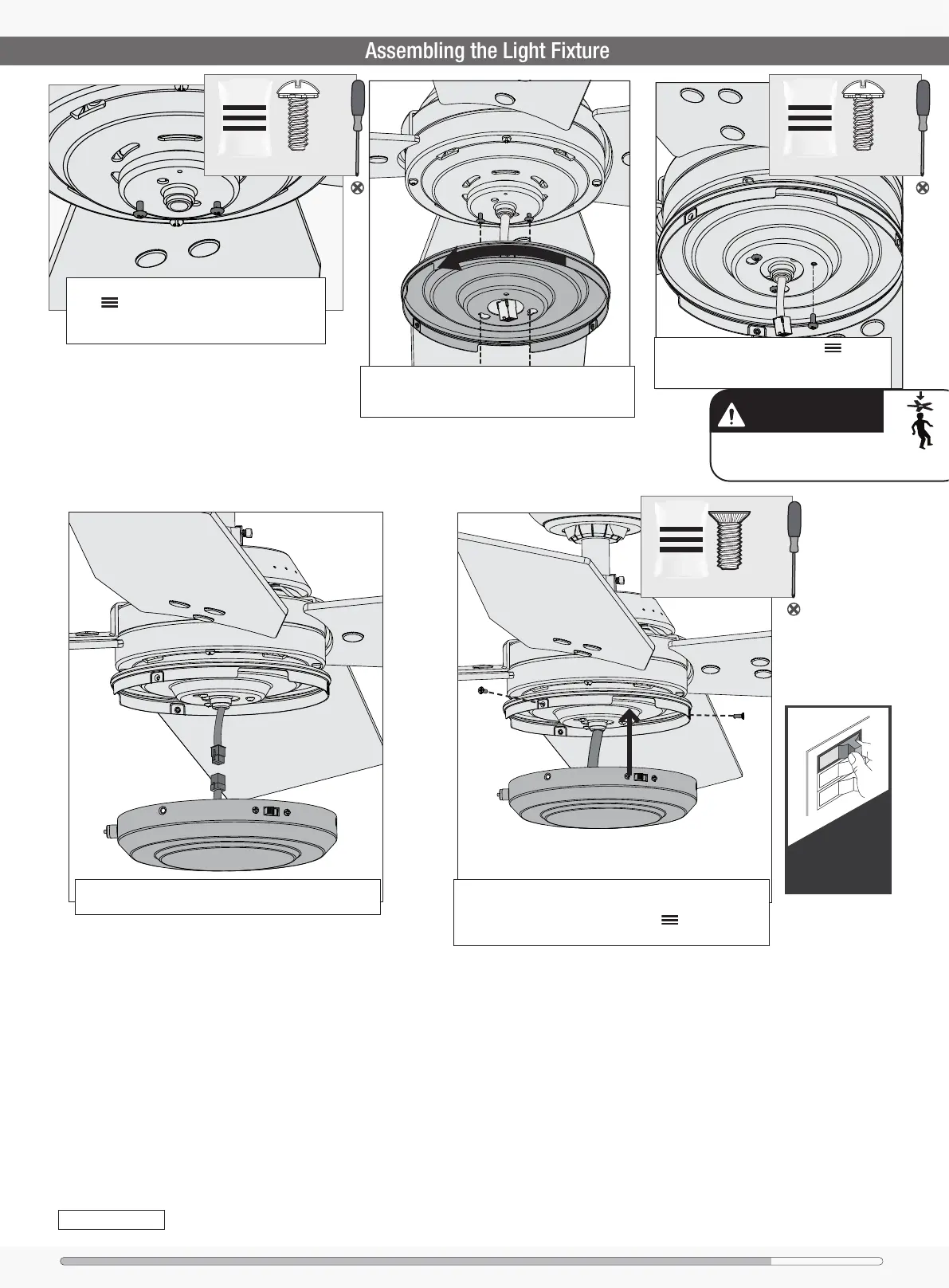

Assembling the Light Fixture
Align the keyhole
slots in the top
of the light kit
assembly with the
partially installed
assembly screws.
Wrap the keyhole
slots around the
screws and twist
counterclockwise.
Partially install two light kit assembly screws, found
in the hardware bag, halfway into the motor
housing as shown. It does not matter which two
screw holes you choose.
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure
the trim ring to the mounting plate.
2 of 3
Light Kit Screw
bag
1 of 3
Light Kit Screw
bag
Insert the third screw, found in the
hardware bag, into place and then tighten all
three screws.
Feed the wire plug through the center hole of the upper
switch housing, then wrap keyhole slots around the
screws and twist counterclockwise.
3 of 3
Light Kit Screw
bag
Connect the plugs from the upper and lower switch housings.
Make sure to line up the colored markings on the connectors.
Lift the lower switch housing until its screw holes are aligned
with the screw holes in the upper switch housing. Install the
three switch housing screws, found in the hardware bag.
Tighten all three screws.
ON
Turn Power
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Upper Switch Housing Reverse
Fan style may vary.
Note:

Hunter Cassius Specifications

General

Blade Span	52 inches
Number of Blades	5
Motor Type	AC
Control Type	Pull Chain
Mounting Type	Downrod
Reversible Blades	Yes
Indoor/Outdoor	Indoor
Category	Ceiling Fan
Speeds	3
Light Kit	No
