Canopy
Screws
bag
1 of 3
Canopy
Screws
bag

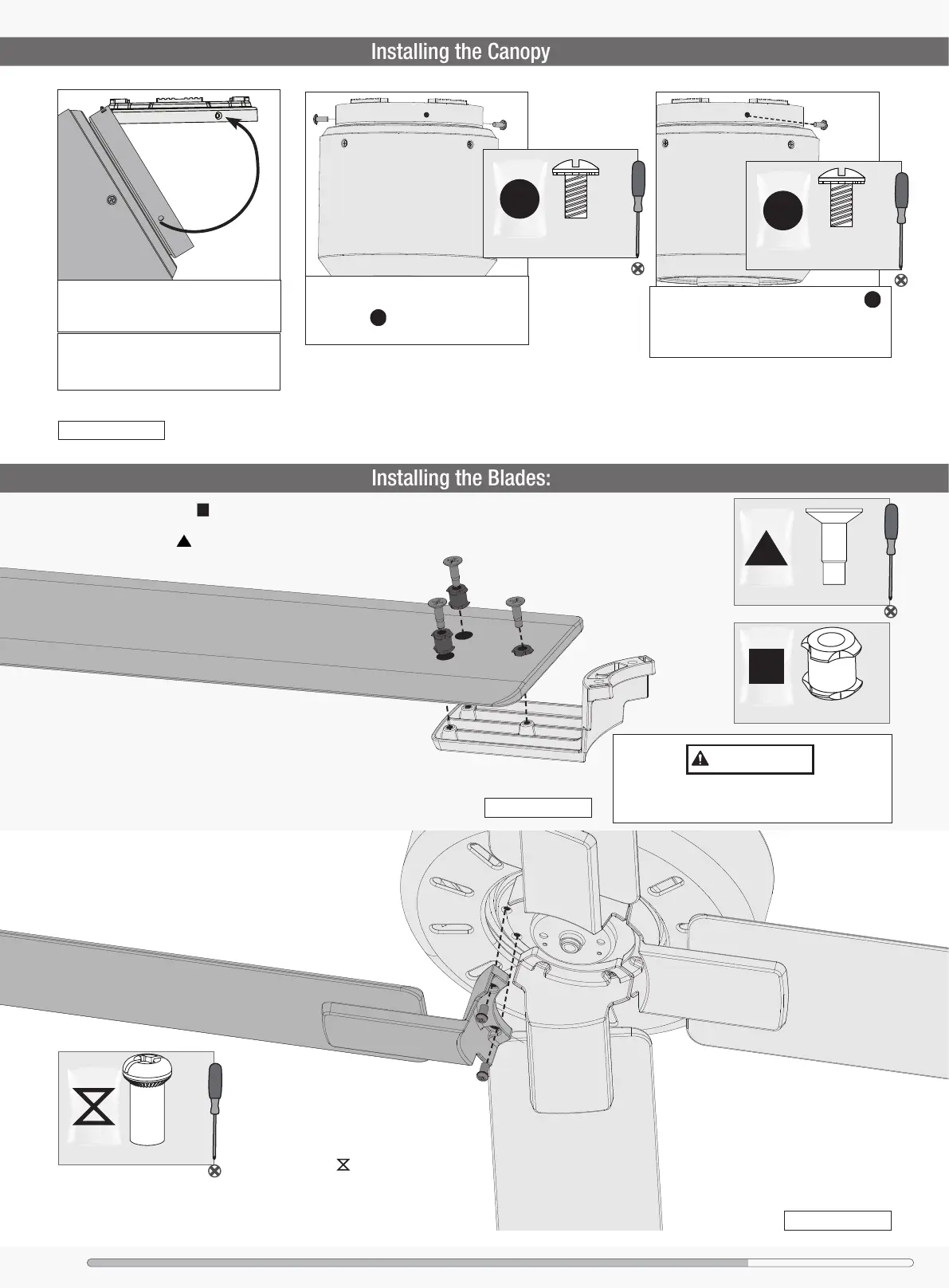

Swing the fan up to align the canopy screw
holes with the mounting holes on the ceiling
plate.
Hold the canopy up with the screw holes
aligned. Partially install two canopy screws,
found in the hardware bag, into the
holes opposite the ceiling plate hooks.
Partially install a canopy screw, found in the
hardware bag, between the ceiling plate hooks.
When all the holes are properly aligned, securely
tighten all three canopy screws.
Note: The slots in the canopy must
remain engaged while swinging the
canopy for alignment.
Fan style may vary.
Note:
Fan style may vary.
Note:
x15
x15
Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.
Repeat x5
bag
bag
Blade Screw
Grommet
IMPORTANT
NOTE: Follow the instructions on the blade. Installing it
incorrectly could result in your fan not functioning.
Fan style may vary.
Note:
Ceiling Bracket Hanging Fan Wiring Canopy Blades Control
x10
Repeat x5
Blade Arm Screw
bag
Lightly attach the blade arms to the motor with
screws found in the hardware bag, then
securely tighten after both screws are attached.
