Screw light kit screws from the
hardware bag halfway into
the motor housing. It does not
matter which two screw holes
you choose.
Connect the plugs from the upper and
lower switch housings. Make sure to line
up the colored markings on the connectors.
Partially install two of the light kit screws found in
the hardware bag. Align the notches in the sides
of the lower switch housing with the screws on the
upper switch housing. Twist the lower switch housing
clockwise to lock into place.
Install the last light kit screw. Tighten all three
screws securely.
Feed the wire plug through the center
hole of the upper switch housing,
then wrap keyhole slots around the
screws and twist counterclockwise.
Insert a third screw, found in the
hardware bag, into place and
then tighten all three screws.
1 of 6
1 of 6
2 of 6
Light Kit Screw
Light Kit Screw
Light Kit Screw
bag
bag
bag
2 of 6
Light Kit Screw
bag
1
STEP
4
STEP
5
STEP
6
STEP
2
STEP
3
STEP

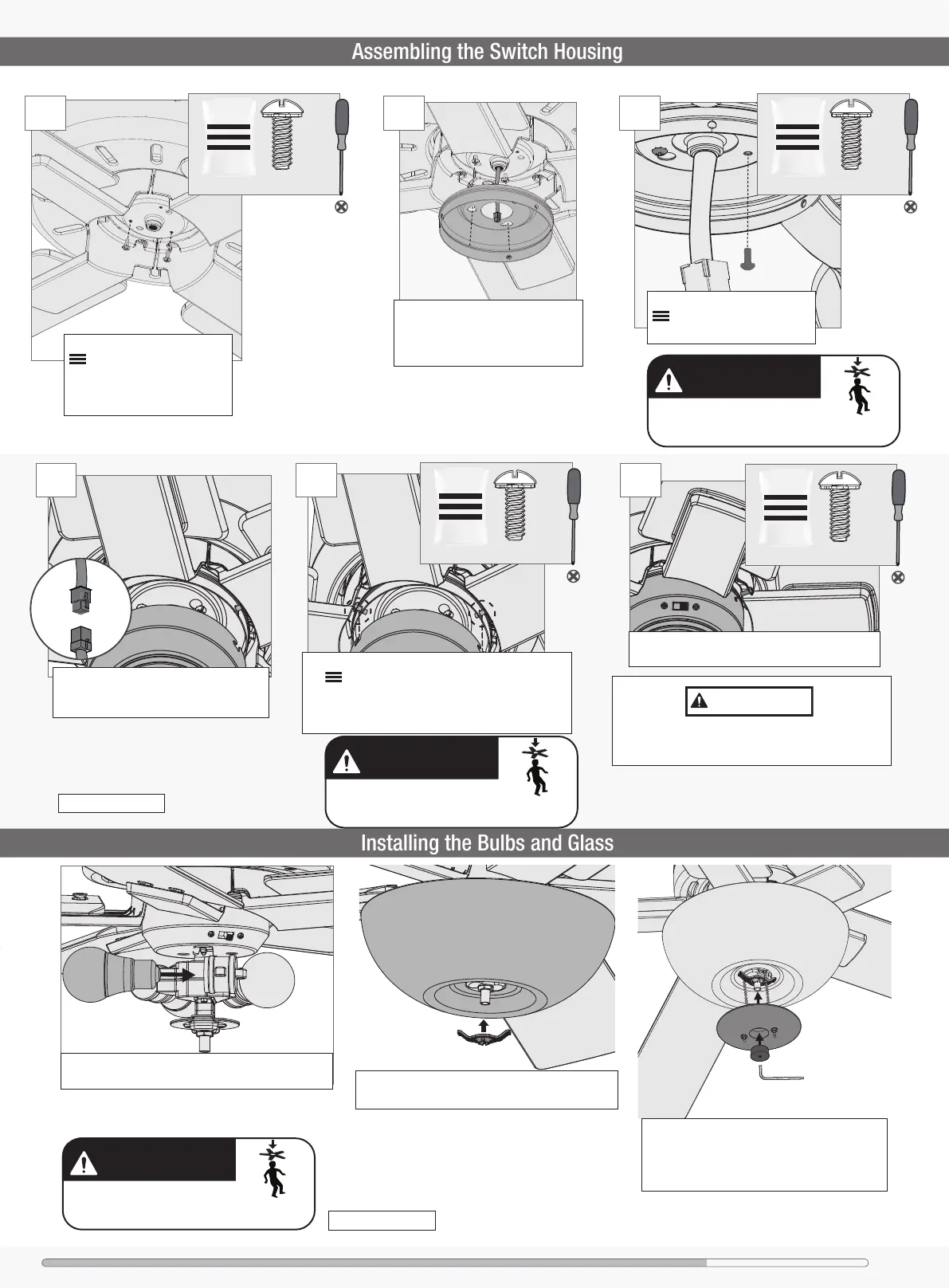

Assembling the Switch Housing
FAN FALL HAZARD
Make sure all three screws are tight to secure
the upper switch housing to the mounting plate.
FAN FALL HAZARD
Make sure all three screws are tight to secure the
lower switch housing to the upper switch housing
IMPORTANT
NOTE: Blades will need to be rotated to access all
screw holes.
Ceiling Bracket Hanging Fan Wiring Canopy Blades Control
Installing the Bulbs and Glass
Press the globe and globe keeper ush against the
metal plate.
Thread the light pull chain and fan pull chain
through their corresponding hole in the globe
retainer. Attach the nial to the threaded rod and
tighten with included Allen wrench.
Install the included bulbs into the sockets. When
necessary, replace with bulbs of same wattage.
Repeat x3
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
To Next Page
