8
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass Remote
Fan style may vary.
Note:
Insert the third screw,
found in the hardware
bag, into place and then
tighten all three screws.

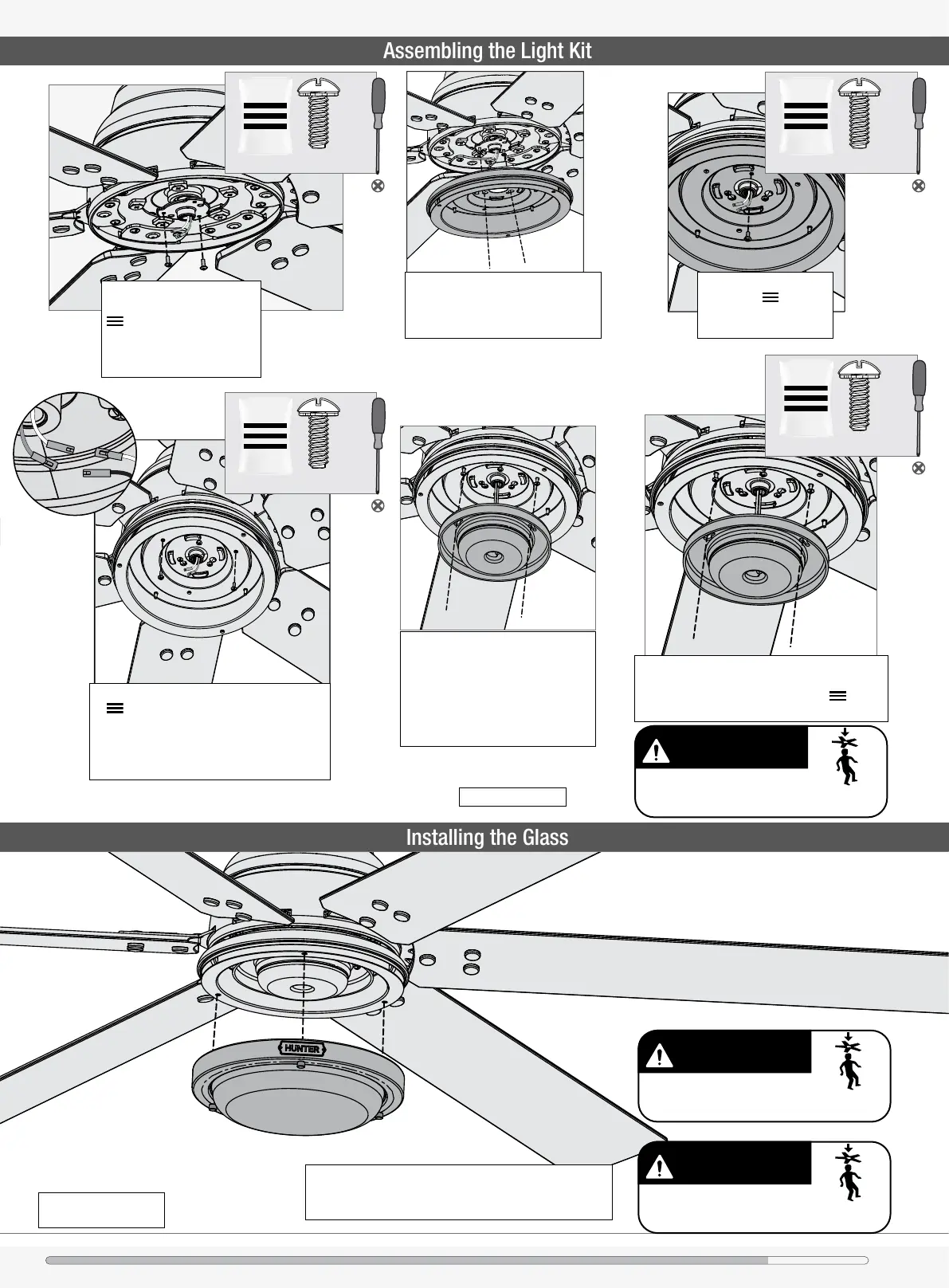

Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light fixture.
2 of 6
Light Kit Screw
bag
Fan style may vary.
Note:
Align the keyhole slots in the light kit
housing with the two screws. Make
sure all the wires from the fan and the
light kit are snug inside the center of
the light kit, not pinched in between
the upper switch housing and the light
kit or hanging out of the sides.
Turn the light kit counterclockwise until the light
kit screws are firmly situated in the narrow end of
the keyhole slots. Install the third screw and
tighten all three screws securely.
Partially install two of the light kit screws found
in the bag. It does not matter which two
screw holes you choose. Connect the plugs from
the upper switch housing and the LED assembly.
Make sure to line up the colored markings on
the connectors.
NOTE: Check to ensure
proper engagement.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Lift the glass assembly and align the three screw holes of
the light kit with the three preassembled thumbscrews of the
glass assembly. Tighten all three thumbscrews to secure.
FAN FALL HAZARD
Make sure all three screws are tight to secure
the trim ring to the mounting plate.
Feed the wire plugs through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws
and twist counterclockwise.
1 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
bag
2 of 6
Light Kit Screw
bag
Blade Arm Screw
To Next Page
