Controllers
Hydrawise controllers are capable of operating lighting transformers equipped with the PXSYNC
interface box. Commonly used transformers with the PXSYNC are the PX or EX models. We also offer
a DX Transformer that can be controlled from an irrigation controller via the 24-volt EXTERNAL
connection built inside the controller.

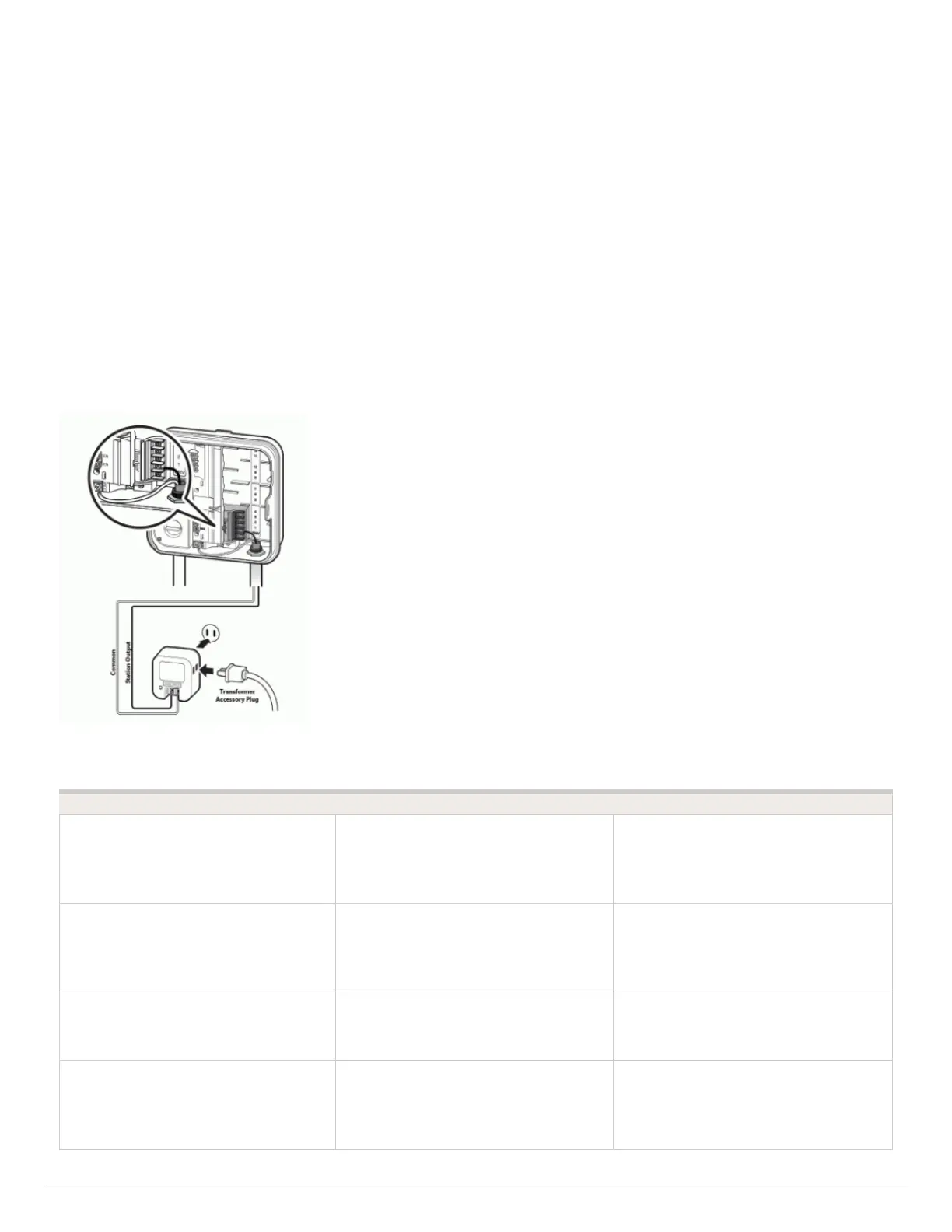

Connect wires from the first PXSYNC or external ports inside the DX box to a station output number
(and the Common) on the Hydrawise controller. See the wiring illustration example below:
NOTE: If the controller is using a Pump or Master Valve, please reference the chart below for important
information.
Controller P/MV Terminal Output
HC
If a pump or master valve is in use, the
lighting transformer should not be used
in conjunction with the irrigation
controller.
Single station output will operate one at
a time. Irrigation must not be
programmed for the duration of the
lighting schedule.
PRO-HC
If a pump or master valve is in use, the
lighting transformer should not be used
in conjunction with the irrigation
controller.
Single station output will operate at a
time. Irrigation must not be programmed
for the duration of the lighting schedule.
HPC
If using PUMP or master valve, this
station output must be set to OFF in the
programming.
Single station output will operate at a
time. Irrigation must not be programmed
for the duration of the lighting schedule.
HCC
If using PUMP or master valve, this
station output must be set to OFF in the
programming.
Two station outputs will operate at a
time. Any two programs will run
simultaneously (lighting program and
irrigation program).
