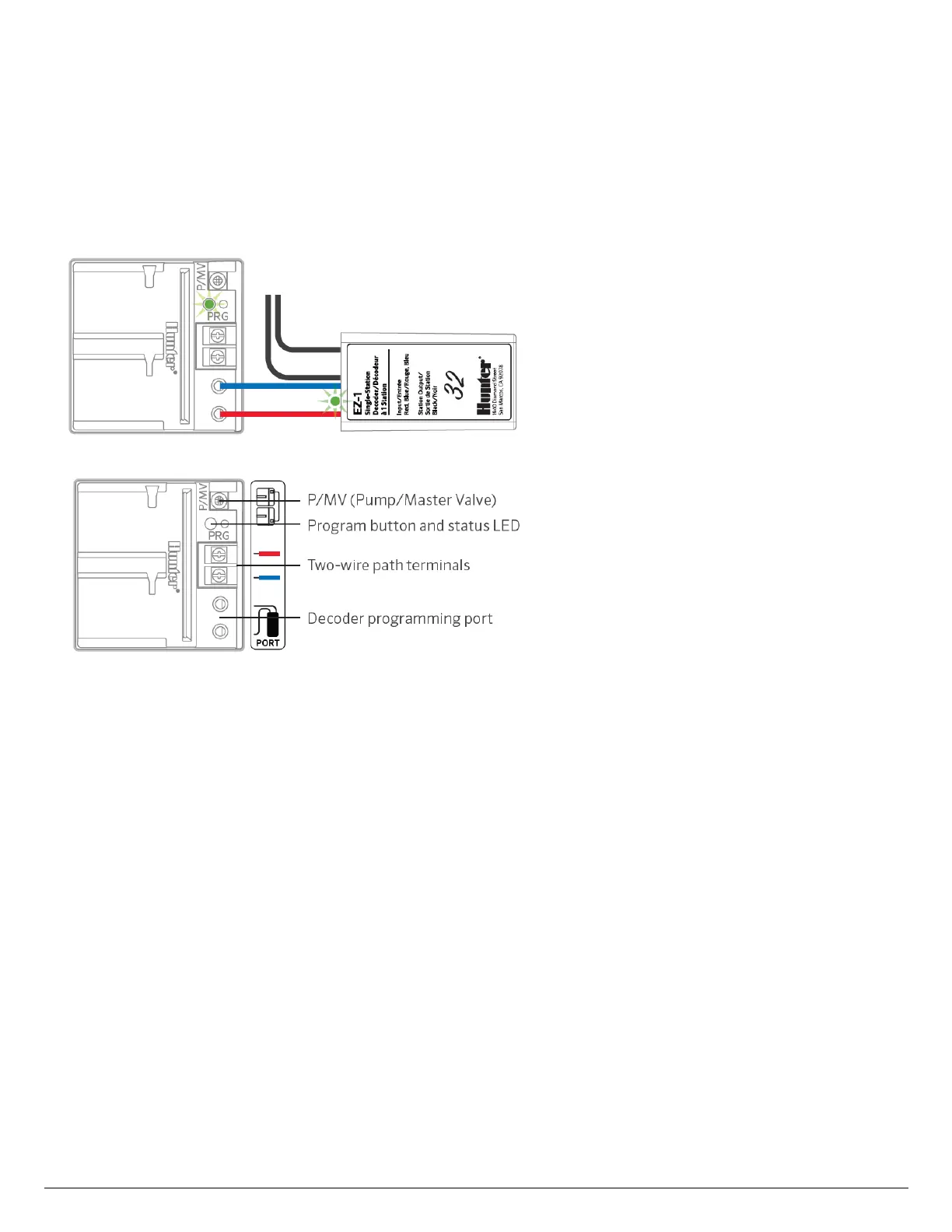

programming port (it doesn’t matter which wire goes into which hole).
2. Manually start the station you want to assign to the decoder. This can be done using
the controller face panel or remote control, if so equipped.
3. When the station is running, push the “PRG” button on the PC-DM. The LED on the
PC-DM and on the EZ-1 decoder will flash green once to indicate the decoder has
been programmed.
4. To assign a decoder as a P/MV, complete steps 1–3; however, don’t start any stations.
EZ-1 Decoder with P/MV
To activate a P/MV via decoder, connect a jumper wire from the P/MV on the PC-DM to the
P/MV terminal on the 4-station master module (as shown in the icon next to the P/MV
terminal). This wire can be a simple 18G station wire stripped 1/2" on each end that bridges
these two terminals to allow operation. See the illustration below.
