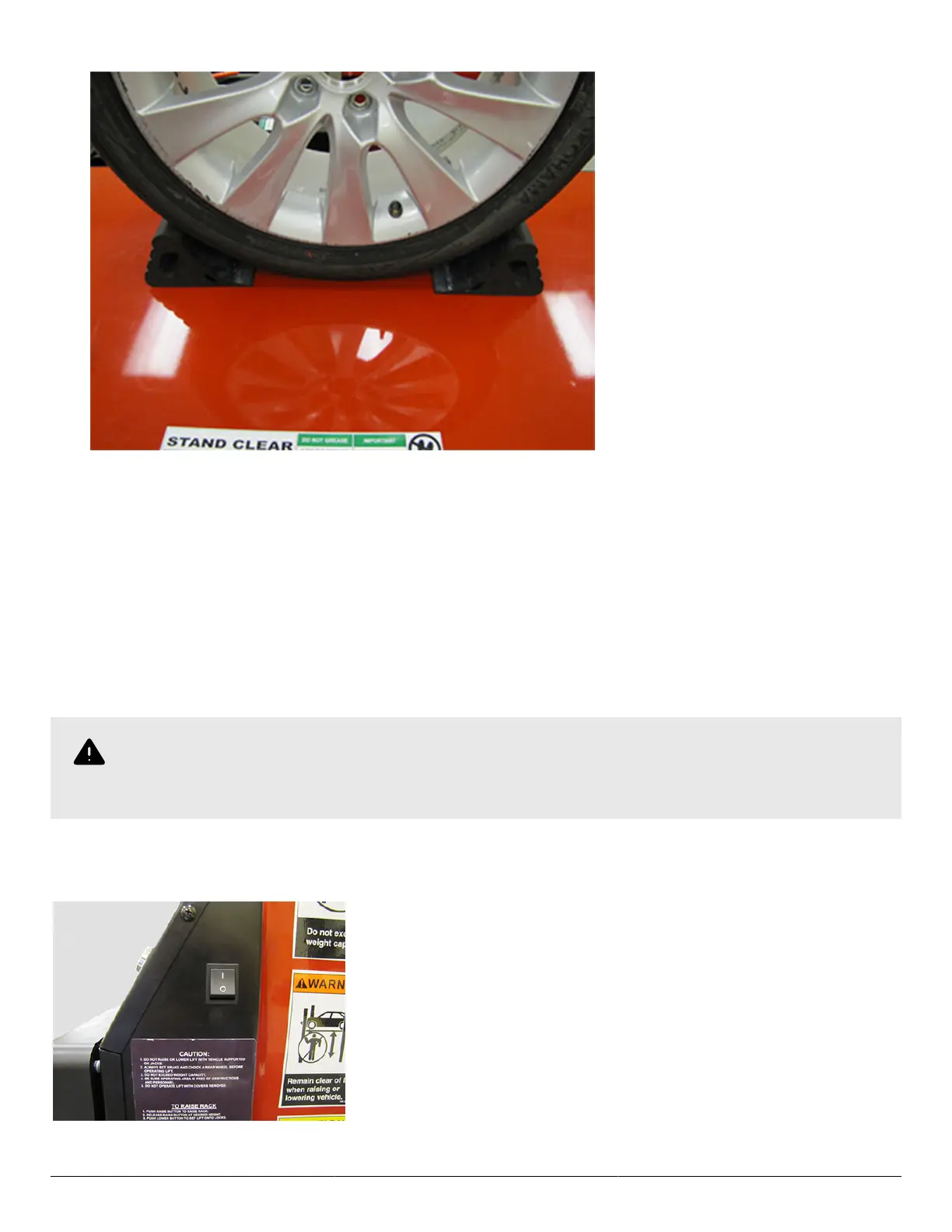

3. Leave the wheel chocks in place while elevating the lift, performing service operations on the vehicle, and while
lowering the lift.
4. After lowering the lift, remove the wheel chocks from the front and rear of the tire before moving the vehicle.
4.3.Lift Operation
Raising the Lift. 4 post lifts have consoles mounted to the front left post.
There are no controls on the pump housing. Check the lift and immediate area for obstructions and remove any that are
found.
Verify that the turnplates and runway slip plates are locked in place.
WARNING
Do NOT operate lift with jacks in use. Serious injury may result if the lift is raised or lowered with a vehicle
supported by jacks.
Verify “POWER” light is illuminated, indicating electrical power is supplied to console and the power switch located on the
side of the console is in the “ON” position.
Depress and hold the “RAISE” button. The pump will begin to operate, raising the lift.
.
