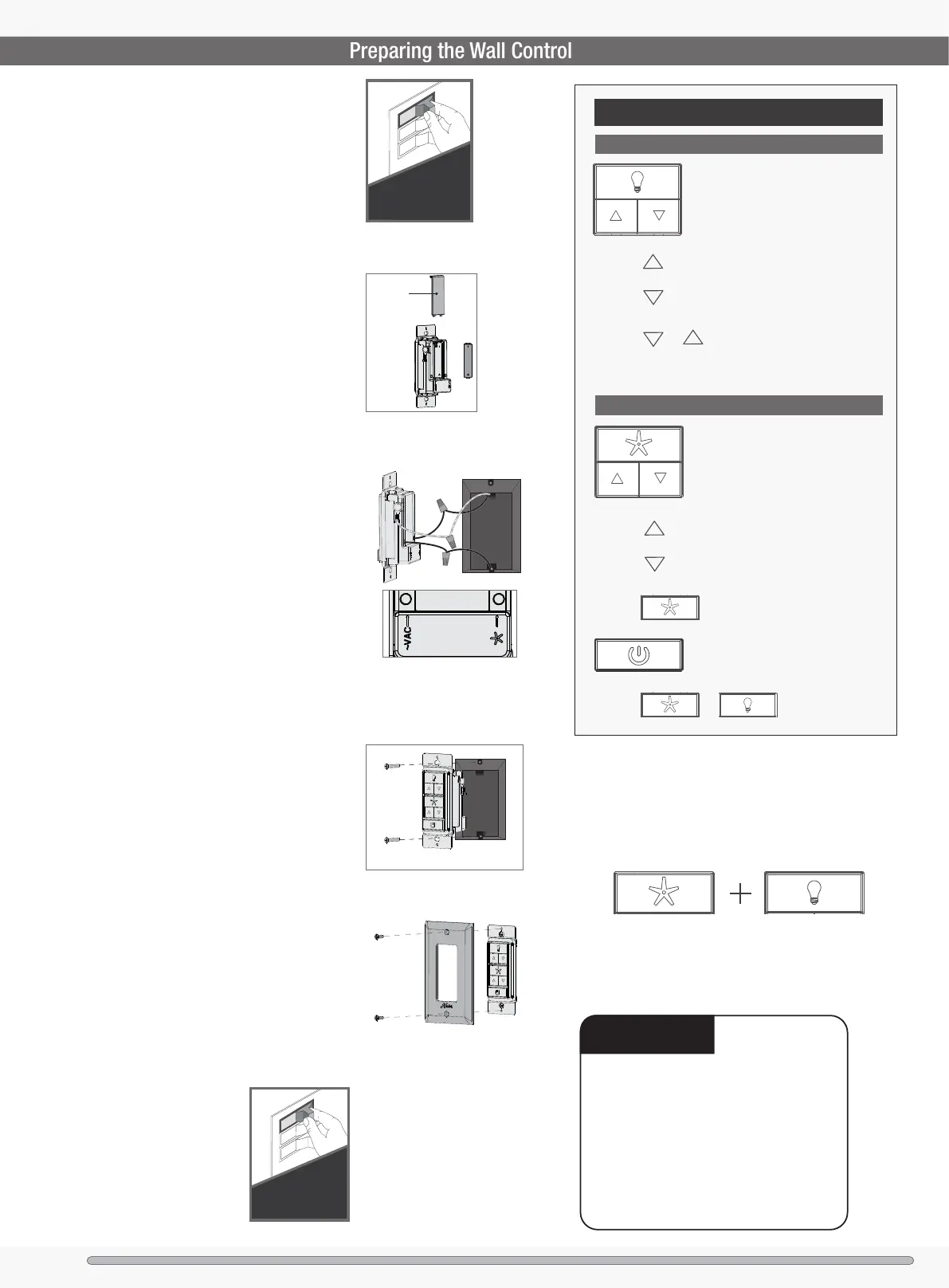

Preparing the Wall Control
Ensure the power is OFF at the outlet box
and wall switch location before proceeding
with installation.
Turn Power
OFF
OFF
1
Turning off the power
2
Installing the battery
To access the battery compartment, slide the
battery door up.
Replace the used battery with two AAA
batteries when needed. Clean the battery
contacts prior to installing the batteries.
Please contact your local battery recycling
center for proper battery disposal information.
Battery
Door
3
Wiring the Wall Control
Connect the grounding wire from the wall
control to the ground control from the
switch box using the provided wire nuts.
Connect the “LIVE IN” from the switch
box to the “~VAC” from the wall control
using the provided wire nuts.
Connect the “LIVE OUT” from the switch
box to the “FAN” out from the wall control
using the provided wire nuts.
Push all wires into the switch box.
4
Installing the Wall Control
Install the longer screws through the
slots in the wall control into the switch
box screw holes.
ON
ON
Turn Power
Turning on the power
6
5
Installing the Wall Plate
Install the shorter screws through the
wall control plate and into the screw
holes in the wall control.
The remote transmitter is already paired to the
receiver and ready to use. If you need to pair
your remote, cycle power to the fan by turning
power off and back on at the wall switch (or
circuit breaker if necessary). Within three
minutes, do the following:
7
Reference the included remote function
card for information on how to use your
wall control!
8
Light Dimming
Control
Dimming Mode
On/Off
+
Light On/Off
Light High
Light Low
Long
Press
Long
Press
Long
Press
LIGHT FUNCTIONS
FAN FUNCTIONS
KEY PRESS FUNCTION
Fan On/Off
+
Fan High
Fan Low
Reverse
Pair Function
Power On/Off
Long
Press
Long
Press
Long
Press
Long
Press
Fan Speed
Control
NOTICE
• Always purchase the correct size and grade of
battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the
device prior to battery installation.
• Ensure the batteries are installed correctly with
regard to polarity (+ and -).
• Remove batteries from equipment which is not to
be used for an extended period of time.
• Remove used batteries promptly.
