7
8
Blade Arm Screw

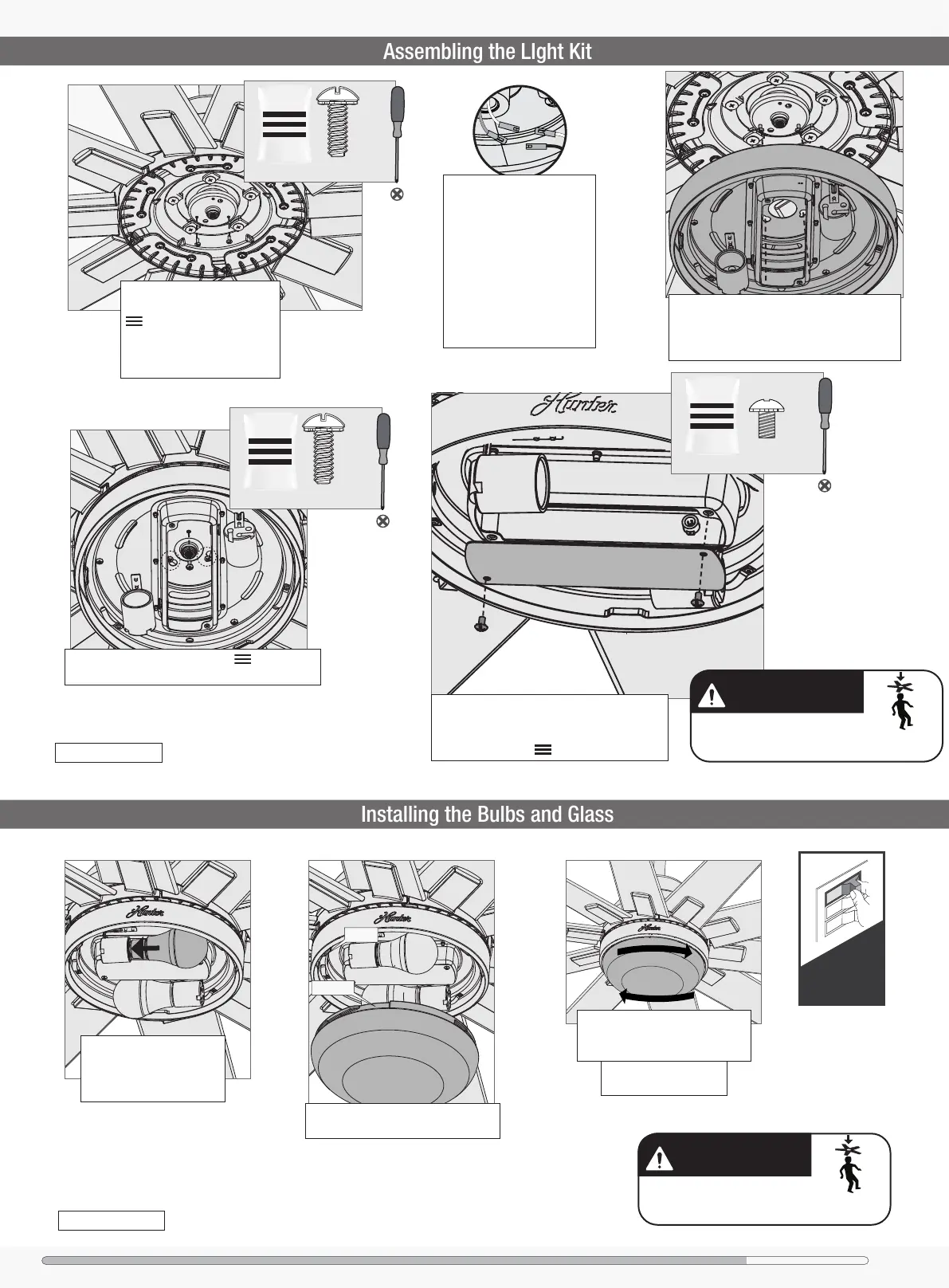

Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise.
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
2 of 3
Light Kit Screw
bag
1 of 3
Light Kit Screw
bag
2 of 2
Short Light Kit
Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two short light kit assembly
screws, found in the hardware bag.
Fan style may vary.
Note:
Installing the Bulbs and Glass
ON
Turn Power
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the notches in
the globe with the tabs in the light kit.
Notch
Tab
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Wall Control
Feed the wires coming from
the bottom of the motor
housing through the center
hole in the light kit assembly.
Connect the wires from the
light kit to the wires from the
fan. Connect the white wire to
the white wire. Connect the
blue wire to the black wire.
Tuck the excess wiring above
the light kit.
Fan style may vary.
Note:
To Next Page
