Hunter Port Royale - Install the Canopy; Install the Blades

7
1886
1886
Preparing the Light Fixture
Installing the Light Fixture Hood

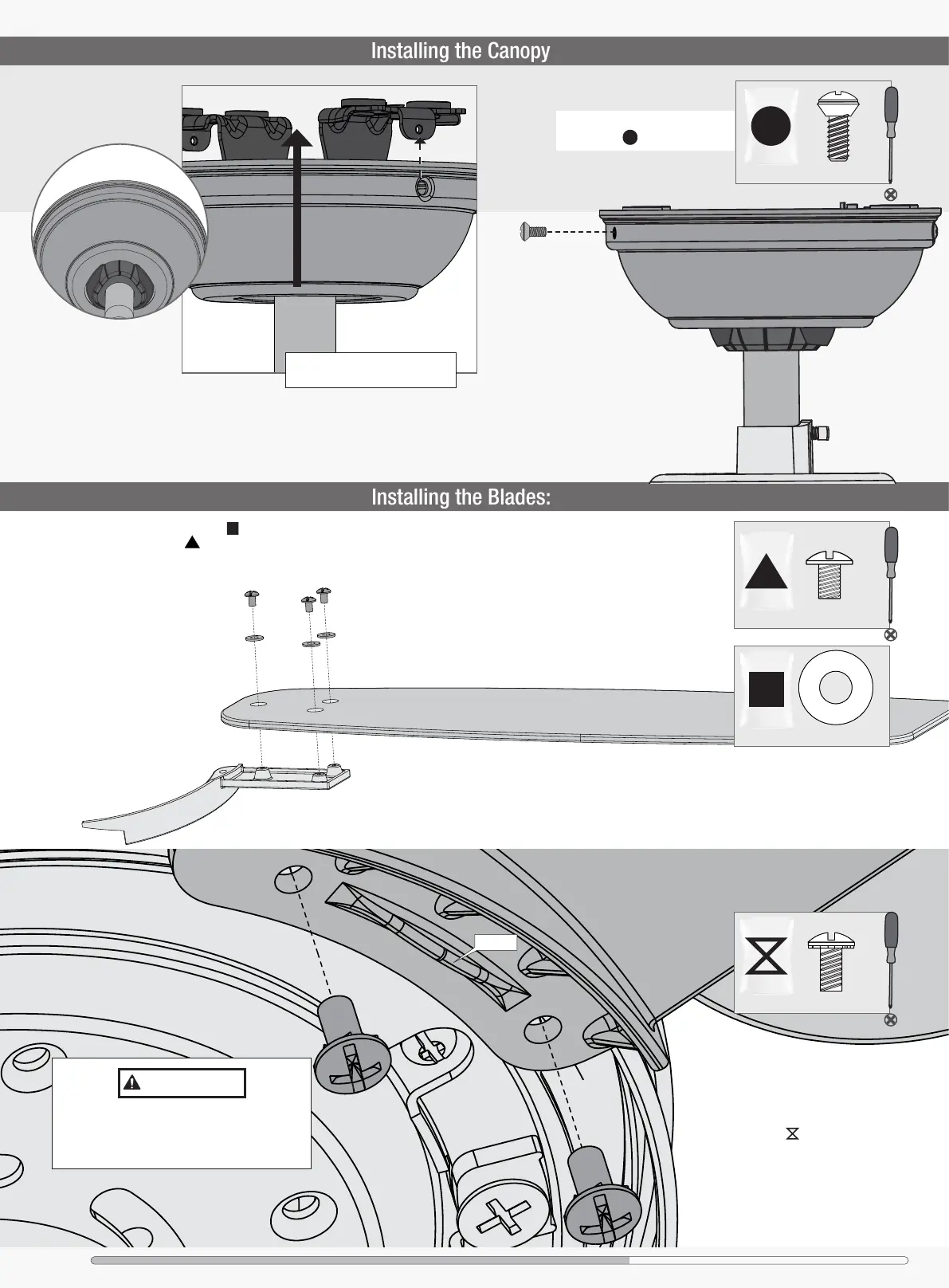

Installing the Blades:
Repeat x4
Repeat x4
x8
bag
Blade Arm Screw
Lightly attach the blade arms to the motor with
screws found in the hardware bag, then
securely tighten after both screws are attached.
Put the blade washers, found in the hardware bag, onto the
blade screws, found in the hardware bag. Then install the blade
screws to secure each blade to a blade iron.
x12
x12
bag
bag
Blade Screw
Washer
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Cage Remote Cradle
IMPORTANT
NOTE: The blade arms should be mounted with
the ridge facing downward. Installing it incorrectly
could result in your fan not functioning.
Ridge
Installing the Canopy
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
Canopy Screw
