Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the canopy
Canopy
Canopy Screw
Ceiling Bracket
Wood Screw
Wire Nut
Washer
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

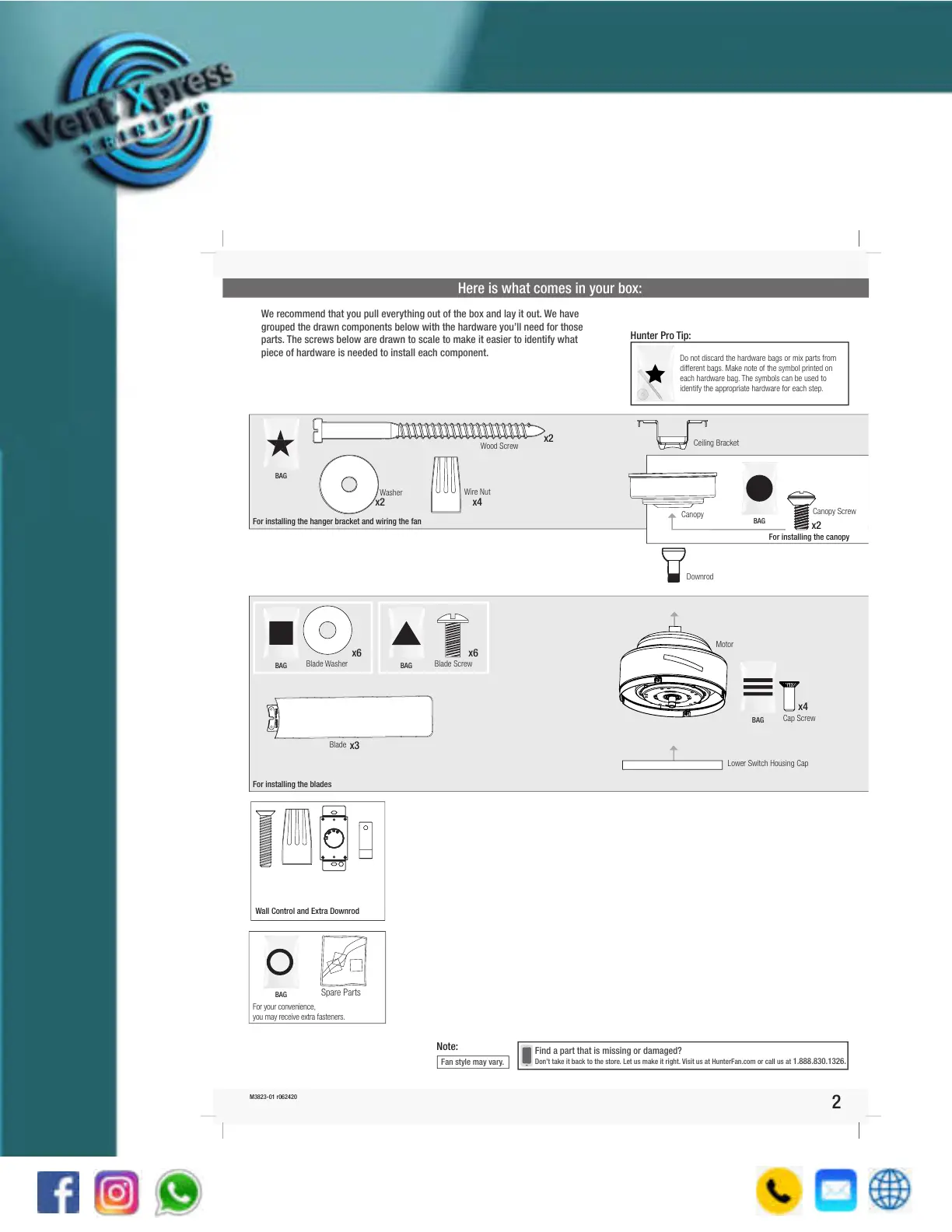

Here is what comes in your box:
x6 x6
For installing the blades
Lower Switch Housing Cap
Blade ScrewBlade Washer
Spare Parts
For your convenience,
you may receive extra fasteners.
Downrod
Motor
M3823-01 r062420
x3
Blade
Wall Control and Extra Downrod
Fan style may vary.
Note:
HUNTER - PRESTO - CEILING FAN
INSTALLATION GUIDE
To Next Page
