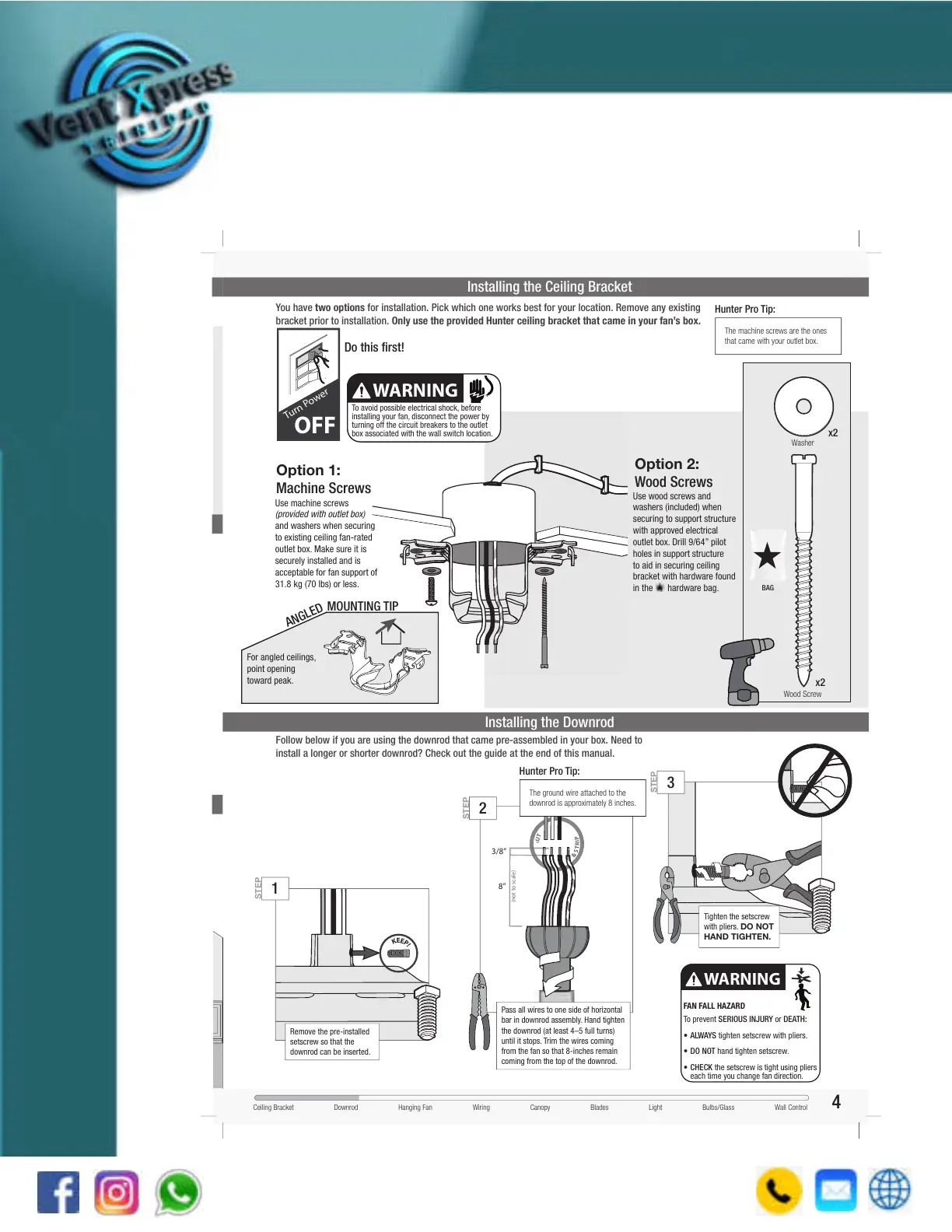

Installing the Ceiling Bracket
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the
hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
T
urn P
o
wer
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
A
NG
L
E
D
M O U N T IN G
T IP
BAG
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Installing the Downrod
Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
8”
3/8”
C
U
T
&
S
T
R
I
P
(not t
o scale)
Pass all wires to one side of horizontal
bar in downrod assembly. Hand tighten
the downrod (at least 4–5 full turns)
until it stops. Trim the wires coming
from the fan so that 8-inches remain
coming from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
K
E
E
P
!
2
3
1
STEP
STEP
STEP
Hunter Pro Tip:
The ground wire attached to the
downrod is approximately 8 inches.
Remove the pre-installed
setscrew so that the
downrod can be inserted.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT
hand tighten setscrew.
• CHECK
the setscrew is tight using pliers
each time you change fan direction.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Wall Control
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
HUNTER - PRESTO - CEILING FAN
INSTALLATION GUIDE
