42709-01 • 02/26/10 • Hunter Fan Company

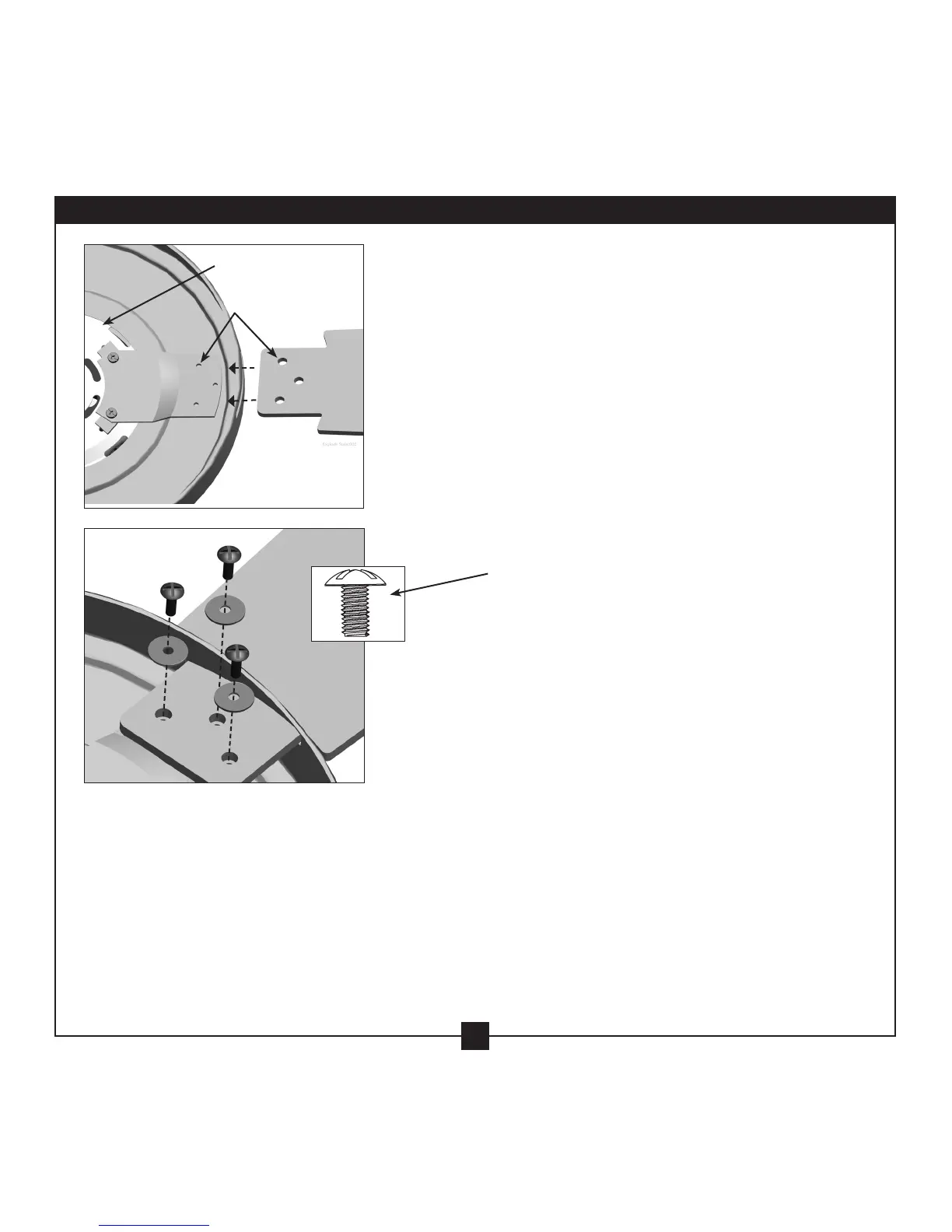

9 • Assembling the Blades

Step 9-1

Step 9-2

Holes

Fan Motor

9-1. Insert blade into slot. Align the holes on the blade with the holes

in the fan motor.

9-2. Slide at washers onto the shafts of the blade assembly screws.

9-3. Attach the blade to the motor using the blade assembly screws.

9-4. Repeat for each blade.

Blade Assembly

Screw
