7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Installing the Glass Bowl
7-16. First install B10 candelabra bulbs (60 Watt Maximum) into the
sockets.
7-17. Attach the extra pull chain (included) to the fan pull chain using
the plastic breakaway connector. (You may nd the plastic
breakaway connector on the end of the extra chain.)
7-18. read the fan pull chain through the hole in the metal disk. en,
thread the fan pull chain through the hole in the center of the glass
bowl.
7-19. read the light pull chain through the hole in the center of the
glass bowl. en, read the light pull chain throught the hole in
the center of the cover plate.
7-20. read the fan pull chain through the grommet hole in the side of
the cover plate.
7-21. Place the cover plate up against the
glass bowl. Align the holes in the cover
plate and glass bowl.
7-22. read the light pull chain through
the nial and screw the nial onto the
threaded rod end until tight.

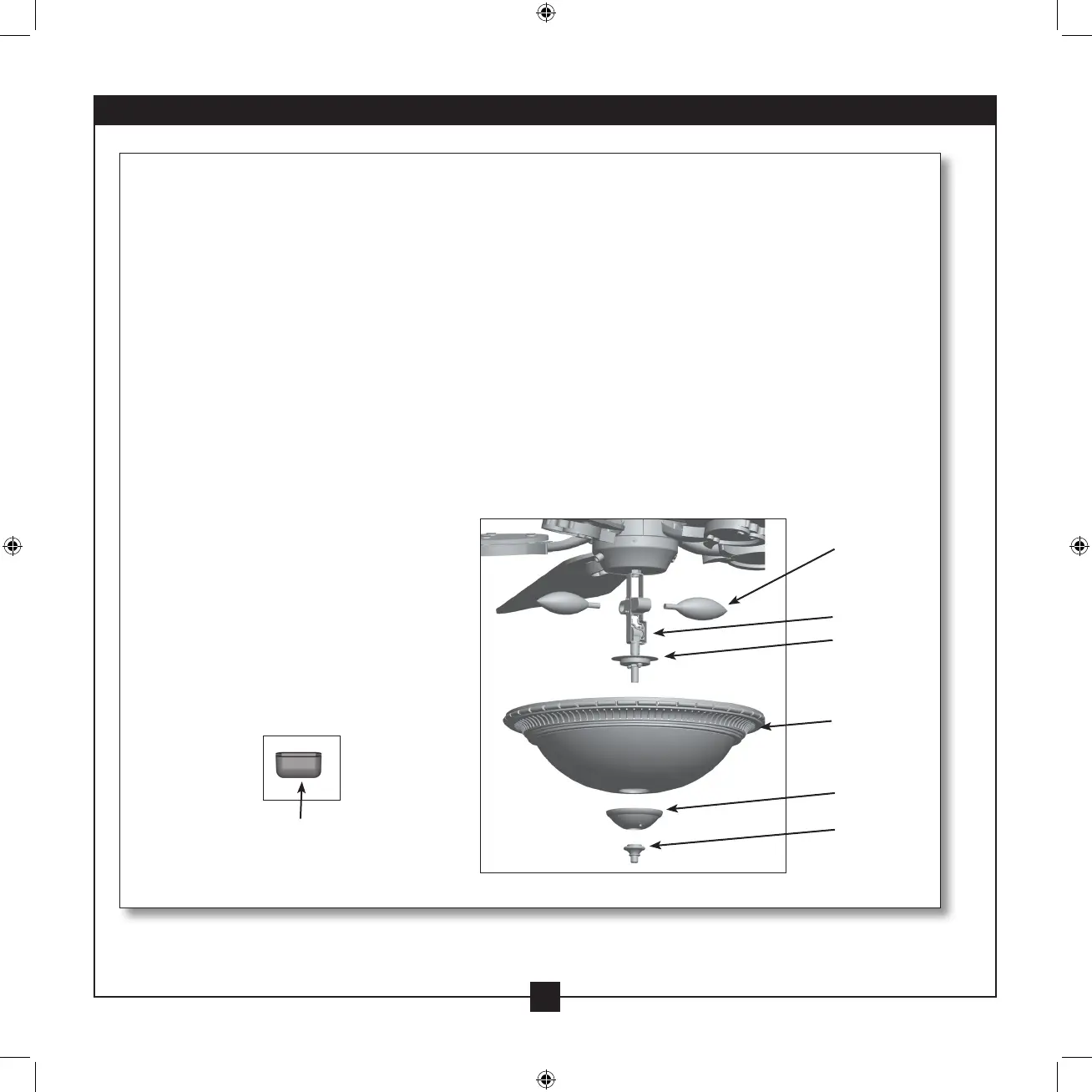

Breakaway
Connector
Light Bulbs
(B10
Candelabra
Base 60 Watt
Maximum)
Metal Rod
Metal Disk
Glass Bowl
Cover Plate
Finial
To Next Page
