06. UsetheUp and Downbuttonsagaintomovetheawningtodisconnectposition“S”.
07. Press and hold the Up and Down buttons simultaneously and wait for the awning to complete two short movements: one up movement and (after a few seconds)
one down movement, until it stops again in the set position. Then release the two buttons.
0403
0605
0201
07
THE
END
“0”
03
1
5
sec.
“1”
( )
S
“1”
5
sec.
2
5
sec.
1
“1”
( )
S
“S”
5
sec.
2

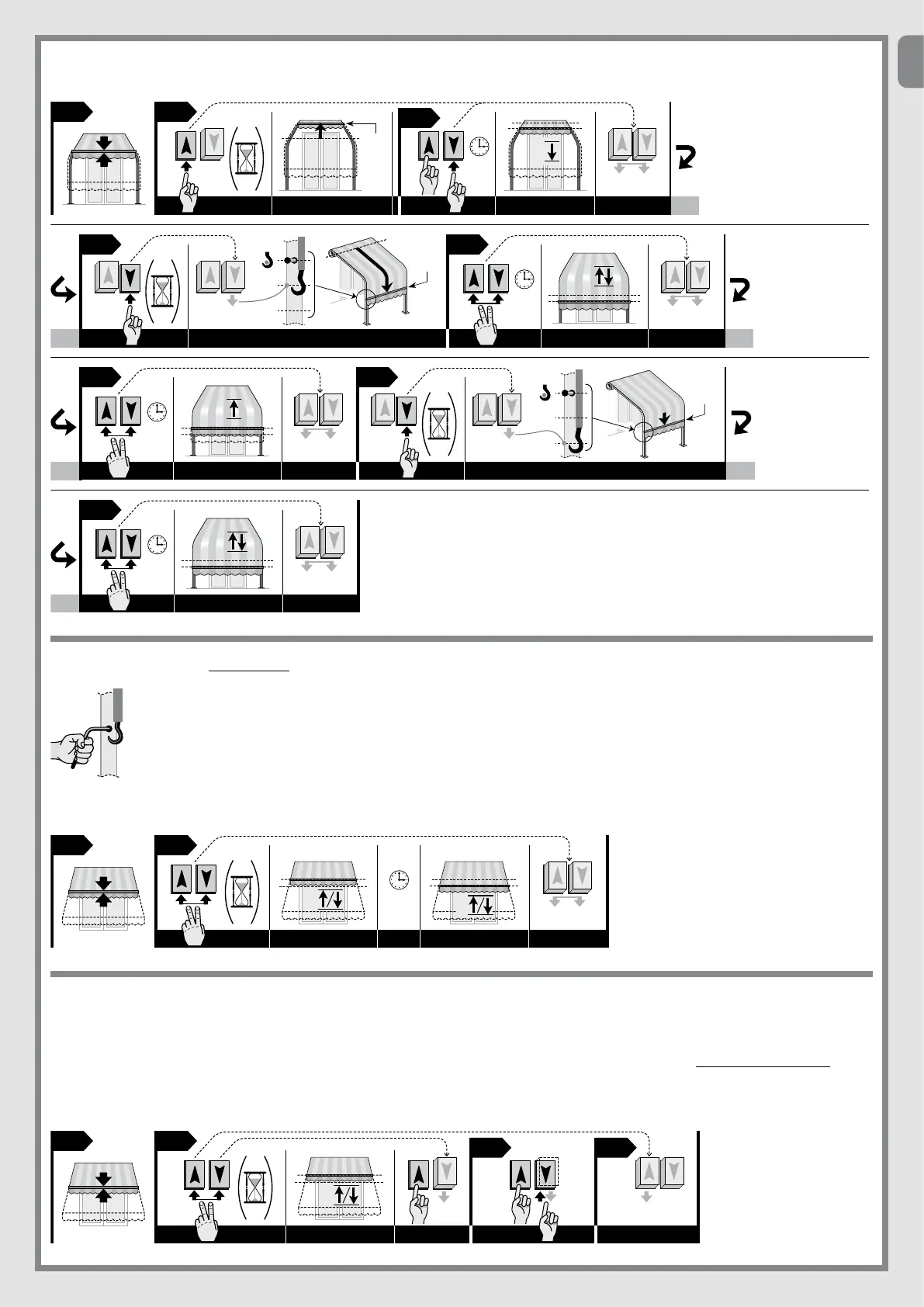

5.8 - Awning with MANUAL hook-up of fabric on opening: “FTA” function
“1”
( )
S
This function has been developed exclusively for awnings with a manual mechanism to block the canvas in the opening position (for
examplethemechanismonawningswithstraightarms,onarbourawningsetc.).Themotorenablesmemorisationofonlyonehook-upposition.If
the function is active, during closure the motor is stopped automatically as soon as the awning comes into contact with the blocking mechanism on
its route. To then release the awning, press the Down button, wait for the awning to reach limit position “1”, release the mechanism manually and
close the awning by means of the Up button.
Caution! - The “FTA” function can only be set after programming the limit position values “0” and “1”. When “FTA” is active, the “RDC”
function acts on the entire travel of the awning.
01. UsetheUp or Down button to move the awning to the point of mid-travel.
02. Press and hold the Up and Down buttons simultaneously and wait for the awning to perform a short movement, a pause and then a second short move
0201
5
sec.
THE
END
1
1
5.9 - Deleting the entire memory
Caution! - This procedure deletes all data in the Con trol unit memory, including positions “0” and “1”.
01. UsetheUp or Down button to move the awning to the point of mid-travel.
02. Press and hold the Up and Down buttons simultaneously and wait for the awning to perform a short movement, after which release only one of the two buttons
03. With 3 seconds after the awning has performed the short movement, press the previously released button (in point 02) three times.
04. The release the other pushbutton.
Note–Ifcancellationiscompletedcorrectly,onactivationofanupordowncommand,theawningwillperformtwoshortmovements(=nolimitpositionprogrammed).
0201
x 3
03 04
THE
END
