IV. Live tool Y axis
No additional tools will need to be setup
There are two additional axis map codes used for milling
on the main spindle utilizing the Y axis.
G103 - Milling on the face of the part with Y axis
G104 - Milling on the diameter of the part with Y axis
Everything is programmed very similar to the G101 map
code. The only differences are
C axis can be used to position the material.
No polar interpolation in this map.
Y axis is used instead of polar interpolation.

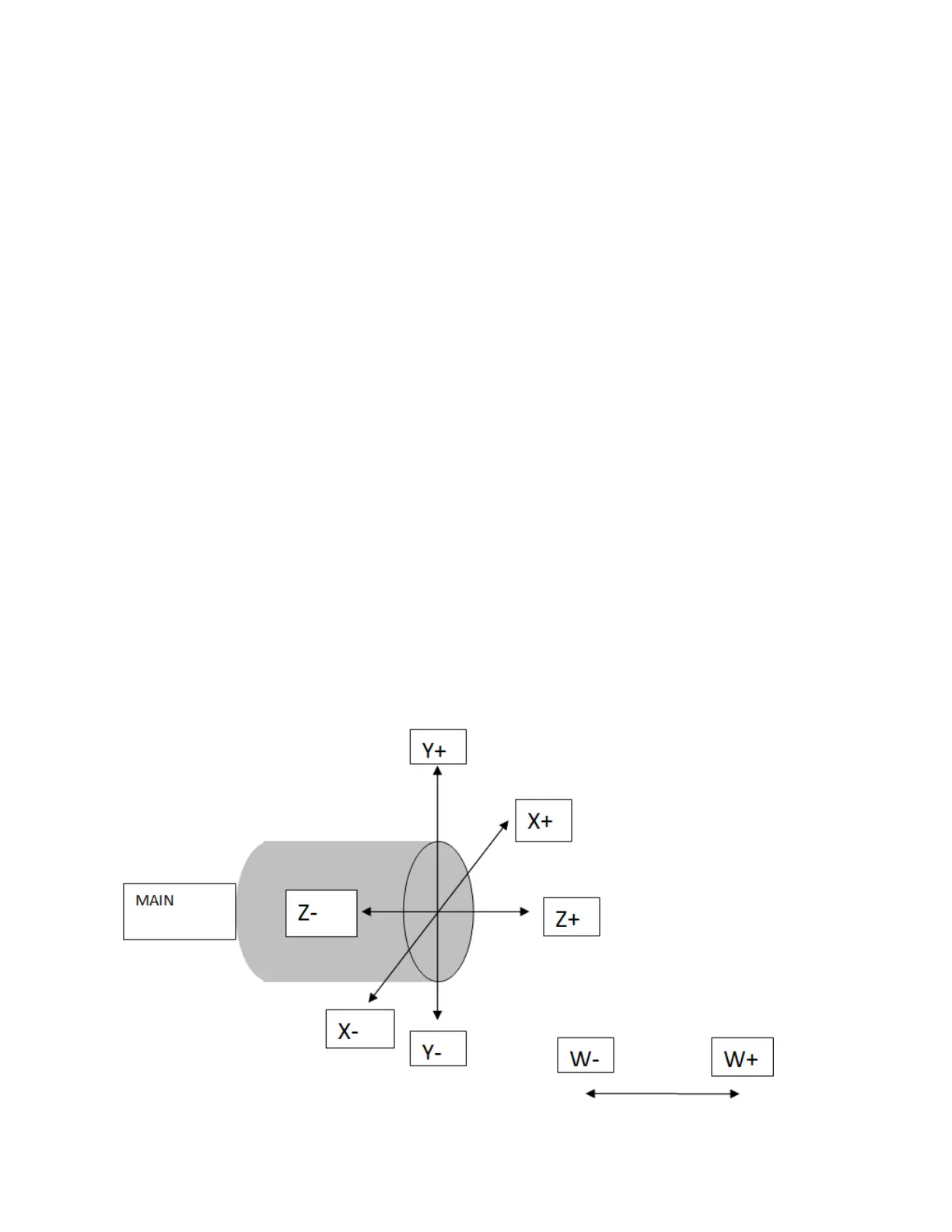

G103 AXIS MAP DIAGRAM
