5. How to Assemble

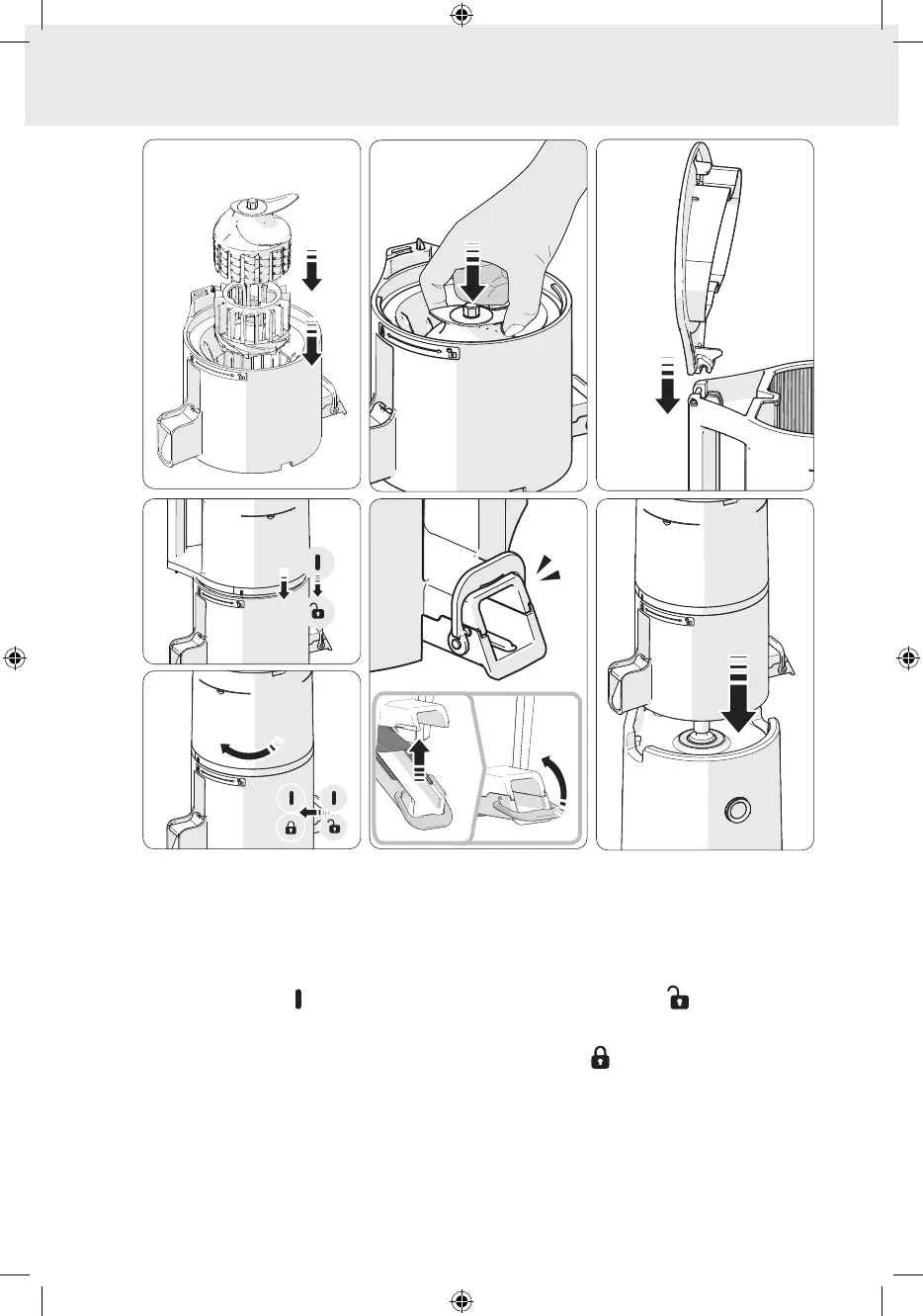

01 Insert the Bottom part of multi-screw(⑤) into the chamber (④), and insert the Top part
of multi-screw (
③) as shown in the figure.
02 Firmly press down the Multi-screw set and assembled in the chamber.
03 Assemble the hopper cover (
①-1) vertically onto the hopper (②-1).
04 Align the hopper [
] assembly guide mark (②-3) with the chamber [ ] assembly
guide mark (
⑤-2) to assemble them.
05 Turn the assembled hopper clockwise up to the chamber [
] assembly guide mark.
If the internal parts are not assembled correctly, the hopper will not close.
06 Check if the discharge cover and the loop (
⑤-4) of the chamber are properly closed.
1. Lift the discharge cover to close it and fasten it with the loop.
2. If the packing is not correctly assembled or the lever is not properly closed, juice may leak or
the lever may open during extraction.
07 Place the correctly assembled chamber set onto the product body (
⑥).
Assemble the chamber set first and then install it on the product body.
