HUROM H-310A - How to Assemble

08

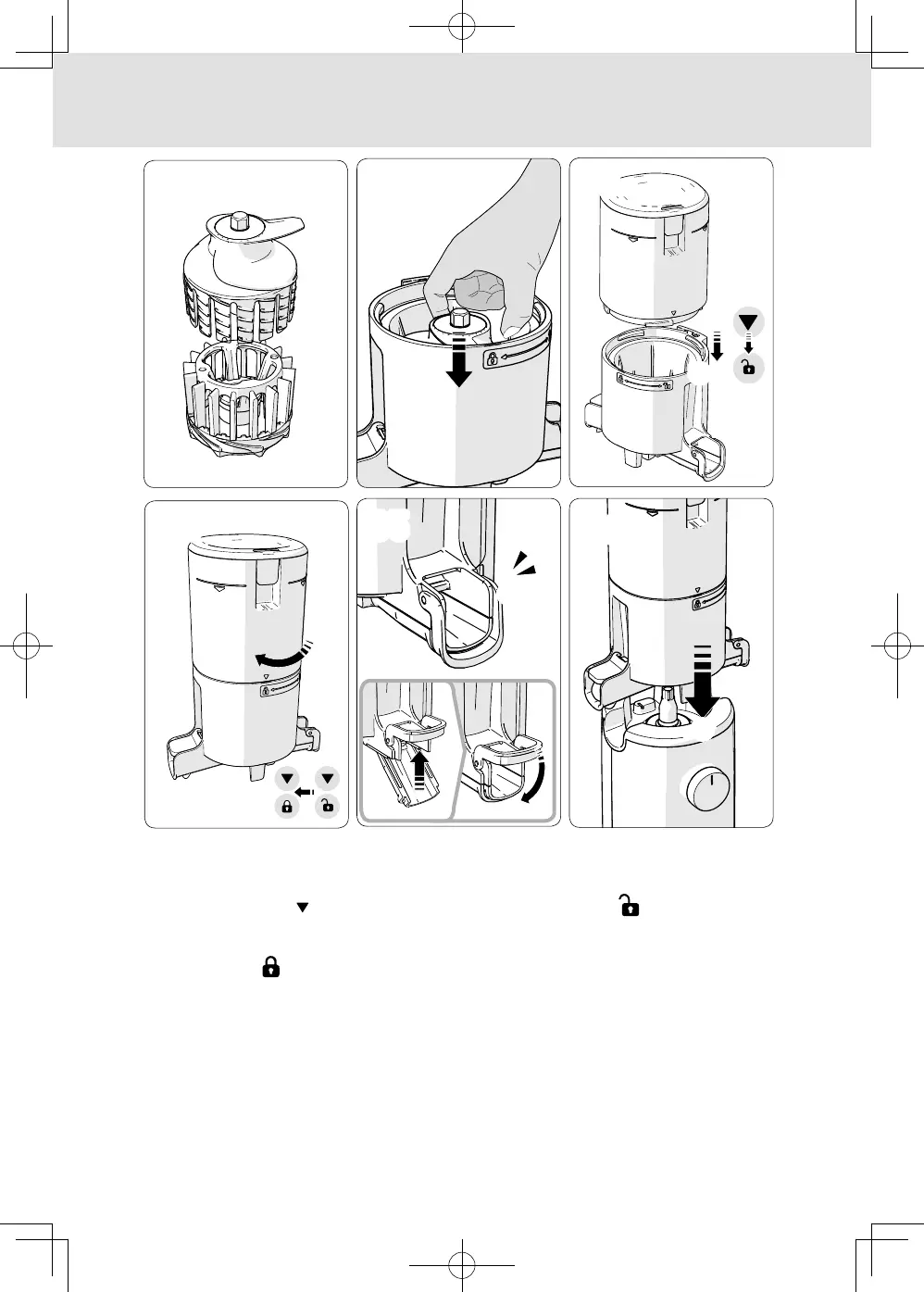

Assemble the bottom of the multi-screw (ΐ) with the top of the multi-screw (Ώ) as shown in the
figure.
Press down the multi-screw set assembled in the chamber.
Align the hopper [
] assembly guide mark (΍) with the chamber [ ] assembly guide mark
(
ΐ) to connect.
Turn the assembled hopper clockwise until its guide mark is aligned with the chamber assembly
guide mark [
].
If the internal components are not assembled correctly, then the hopper won't close.
Check that the discharge cover and the loop (
ΐ) of the chamber are properly fastened.
1. Close the discharge cover and fasten it with the loop.
2. If the packing is not in place or the lever is not fastened properly, juice may leak or the lever may open
during extraction.
Place the well-assembled chamber set onto the product body (
Α).
Assemble the chamber set and connect it to the product body.
01
02
03
04
05
06
5. How to Assemble
01
Α
02
03
ΐ
΍
06
0504
ΐ
Α
08
