06 07

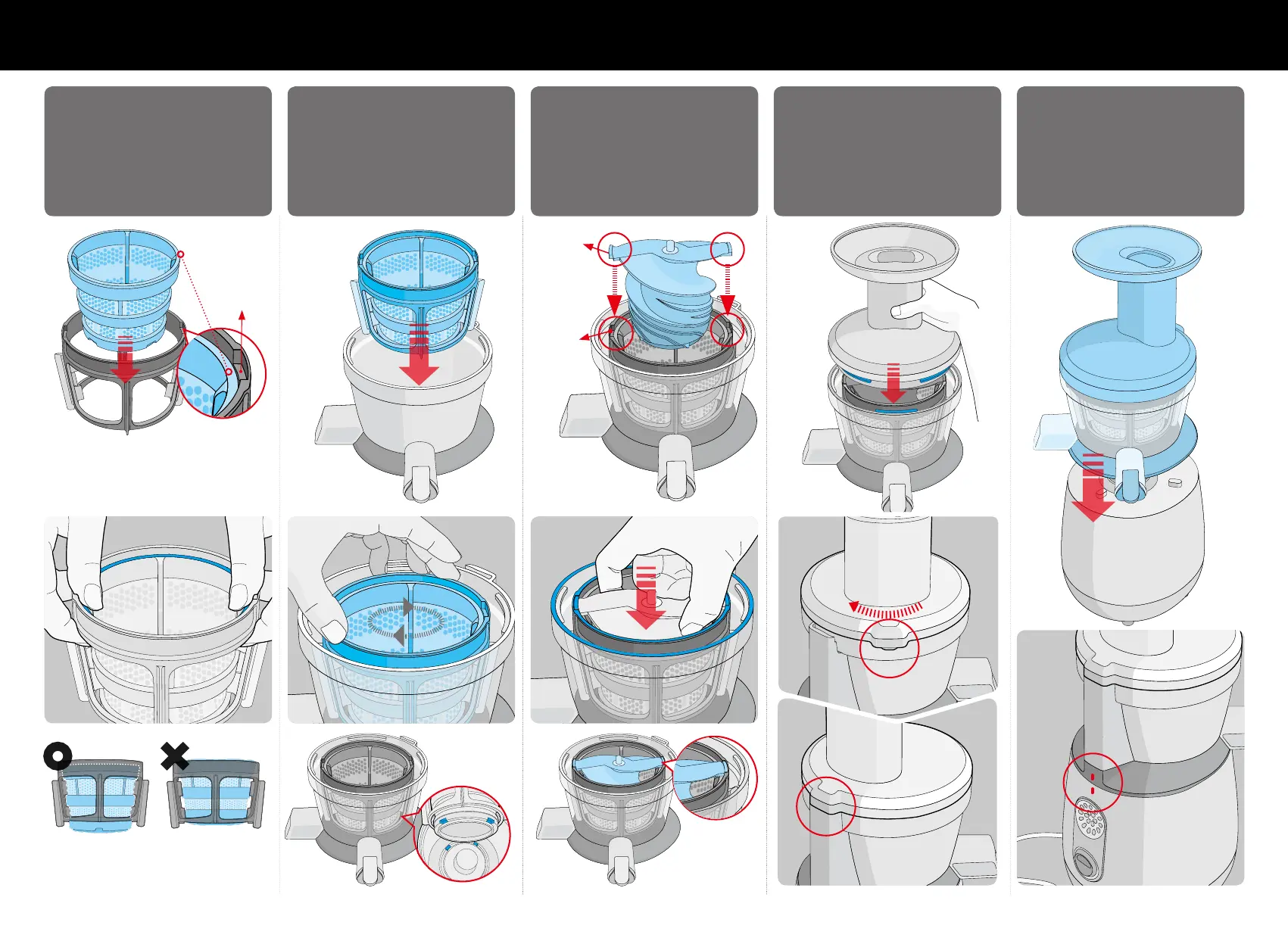

How to assemble
After putting the hopper on
the chamber, turn it clockwise
until it is locked completely.
Mount the chamber set on the
body.
54
Assemble the strainer under
the groove of spinning brush
just like from the picture.
Put the assembled part in
proper place by moving left
and right in the chamber just
like the picture no.1.
Assemble the squeezing
screw like the picture.
If they are not completely
assembled, the chamber set will not
be closed.
Put the auger by turning it to fit in
the spinning brush grooves.
Align the mark on the back of the
body to the mark on the chamber
set for correct assembly.
1 2 3
Spinning
brush
groove
Spinning
brush
grooves
* If the strainer is not placed below the
groove, the hopper will not be locked.
Squeezing
screw
wings
<REAR>
<REAR>
To Next Page
