3. How to Assemble Juicer

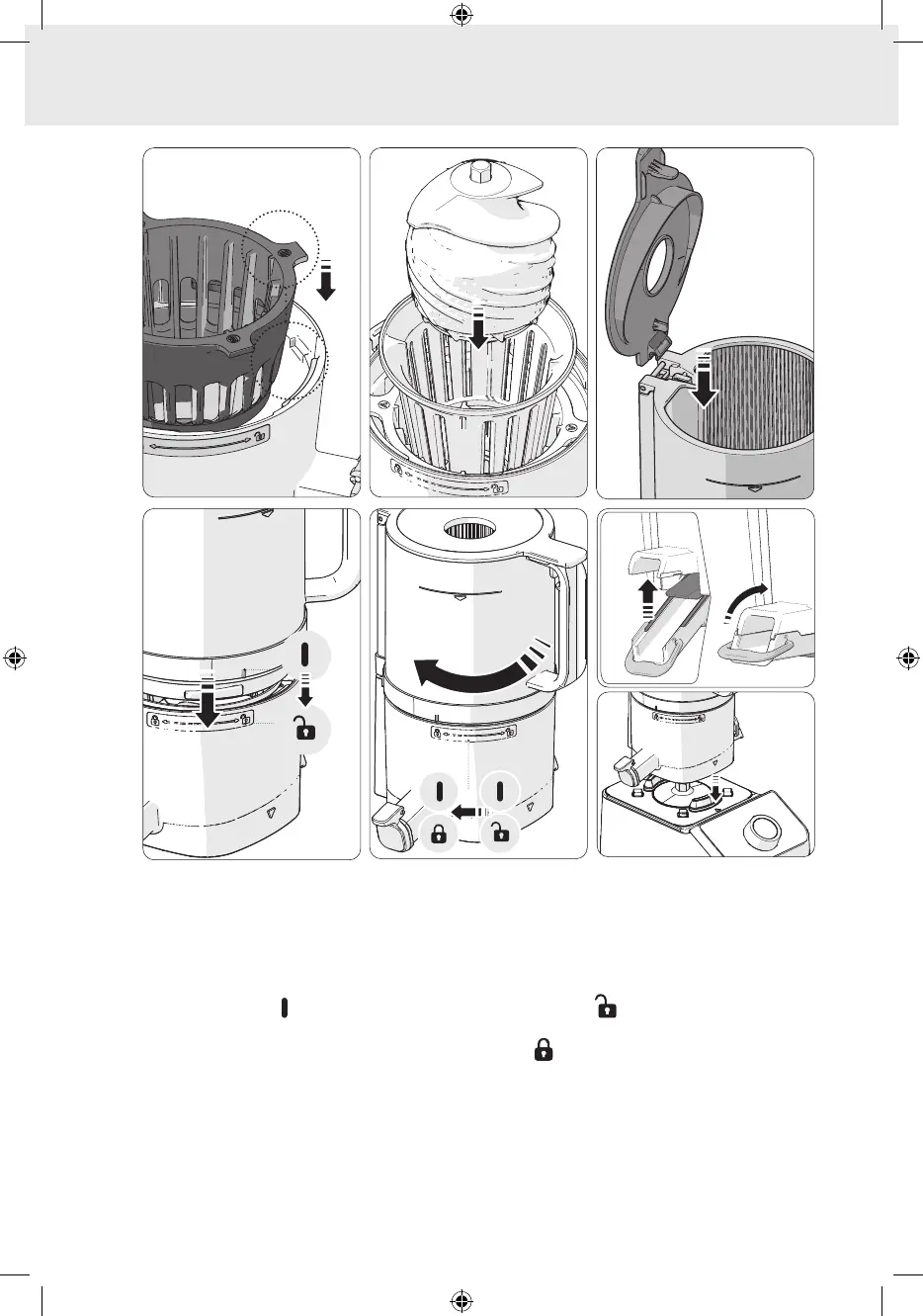

01 Match the protruded part at the top of the outer filter (⑤-1/⑥-1) with the chamber’s groove (⑦-5) to
assemble.
02 Assemble the inner filter and screw on the outer filter, which is assembled on the chamber.
Assemble them so that the binding point of the inner filter (④-1) joins the protrusion at the top of the outer filter
(⑤-1/⑥-1).
03 Assemble the hopper cover (①-3) vertically onto the hopper (②-1).
04 Align the hopper [ ] assembly guide mark (⑦-1) with the chamber [ ] assembly guide mark (②-3)
to assemble them.
05 Turn the assembled hopper clockwise up to the chamber [ ] assembly guide mark.
If the internal parts are not assembled correctly, the hopper will not close.
06 Check if the discharge cover (⑦-2) and the loop of the chamber are properly closed.
1. Lift the discharge cover to close it and fasten it with the loop.
2. If the packing is not correctly assembled or the lever is not properly closed, juice may leak or the lever may
open during extraction.
07 Place the correctly assembled chamber set onto the product body according to the chamber guide
mark (⑦-8) and the product body guide mark (⑨-2).
If the hopper is assembled on top of the product body, the hopper is not locked all the way due to the orange
"looseproof bump".
If the chamber is not settled according to the guide mark, turn it slightly left and right to settle it at the guide
mark.
⑤-1
/⑥-1
⑦-5
①-3
②-1
01
③
④-1
02
03
⑦-2
06
04
②-3
05
①
⑦-1
07
⑦-8
⑨-2
