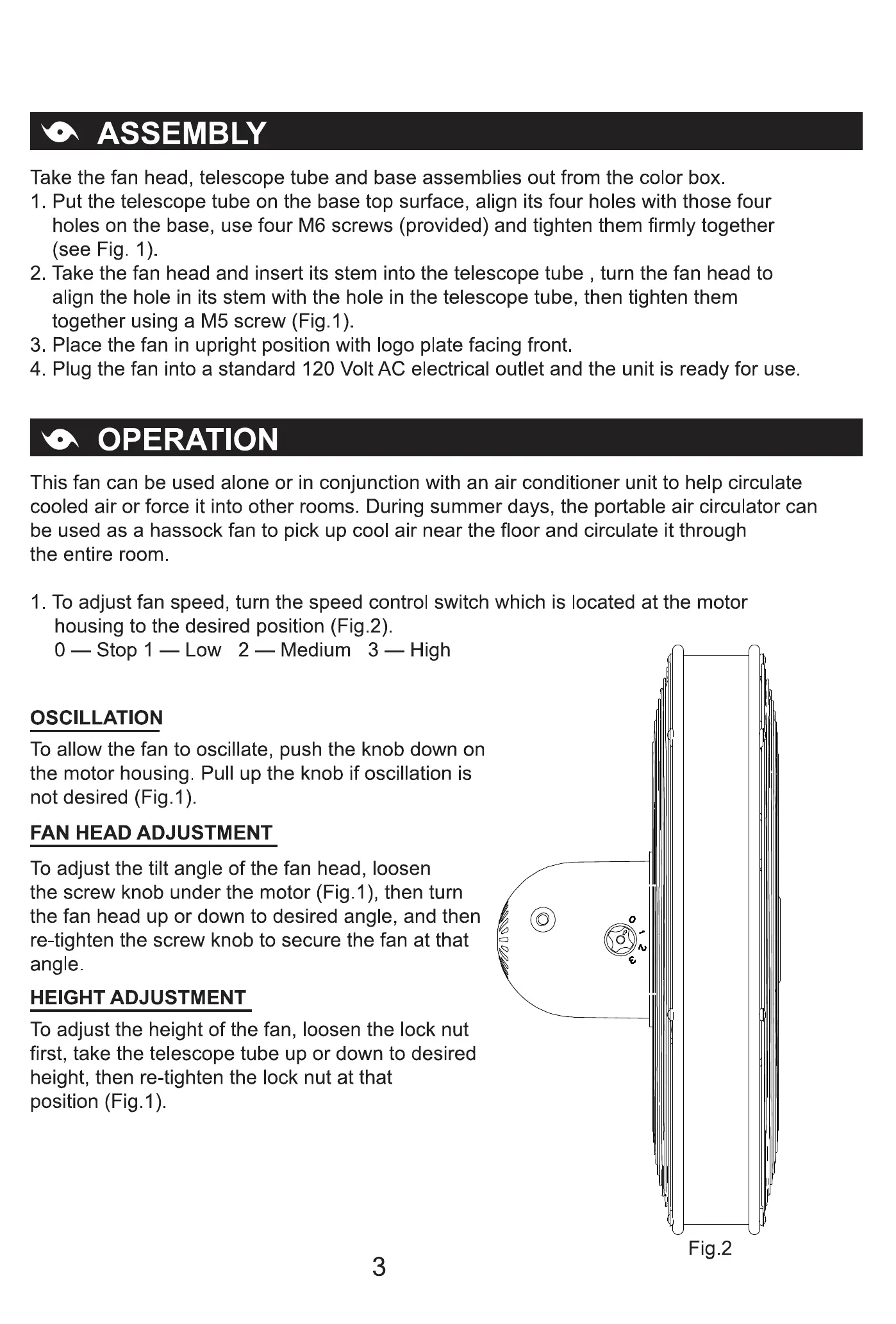

• ASSEMBLY
Take the fan head, telescope tube and base assemblies out from the color box.
I . Put the telescope tube on the base top surface, align its four holes with those four
holes on the base, use four M6 screws (provided) and tighten them firmly together
(see Fig. 1).
2. Take the fan head and insert its stem into the telescope tube , turn the fan head to
align the hole in its stem with the hole in the telescope tube, then tighten them
together using a M5 screw (Fig. I
3. Place the fan in upright position with logo plate facing front.
4. Plug the fan into a standard 120 Volt AC electrical outlet and the unit is ready for use.
• OPERATION
This fan can be used alone or in conjunction with an air conditioner unit to help circulate
cooled air or force it into other rooms. During summer days, the portable air circulator can
be used as a hassock fan to pick up cool air near the floor and circulate it through
the entire room
1. To adjust fan speed, turn the speed control switch which is located at the motor
housing to the desired position (Fig.2).
O— Stop I — Low 2 — Medium 3 — High
OSCILLATION
To allow the fan to oscillate, push the knob down on
the motor housing. Pull up the knob if oscillation is
not desired (Fig. 1).
FAN HEAD ADJUSTMENT
To adjust the tilt angle of the fan head, loosen
the screw knob under the motor (Fig. I), then turn
the fan head up or down to desired angle, and then
re-tighten the screw knob to secure the fan at that
angle.
HEIGHT ADJUSTMENT
To adjust the height of the fan, loosen the lock nut
first, take the telescope tube up or down to desired
height, then re-tighten the lock nut at that
position (Fig. 1)
3
Fig.2
