12
5.1 General information
5. Connecting the equipment

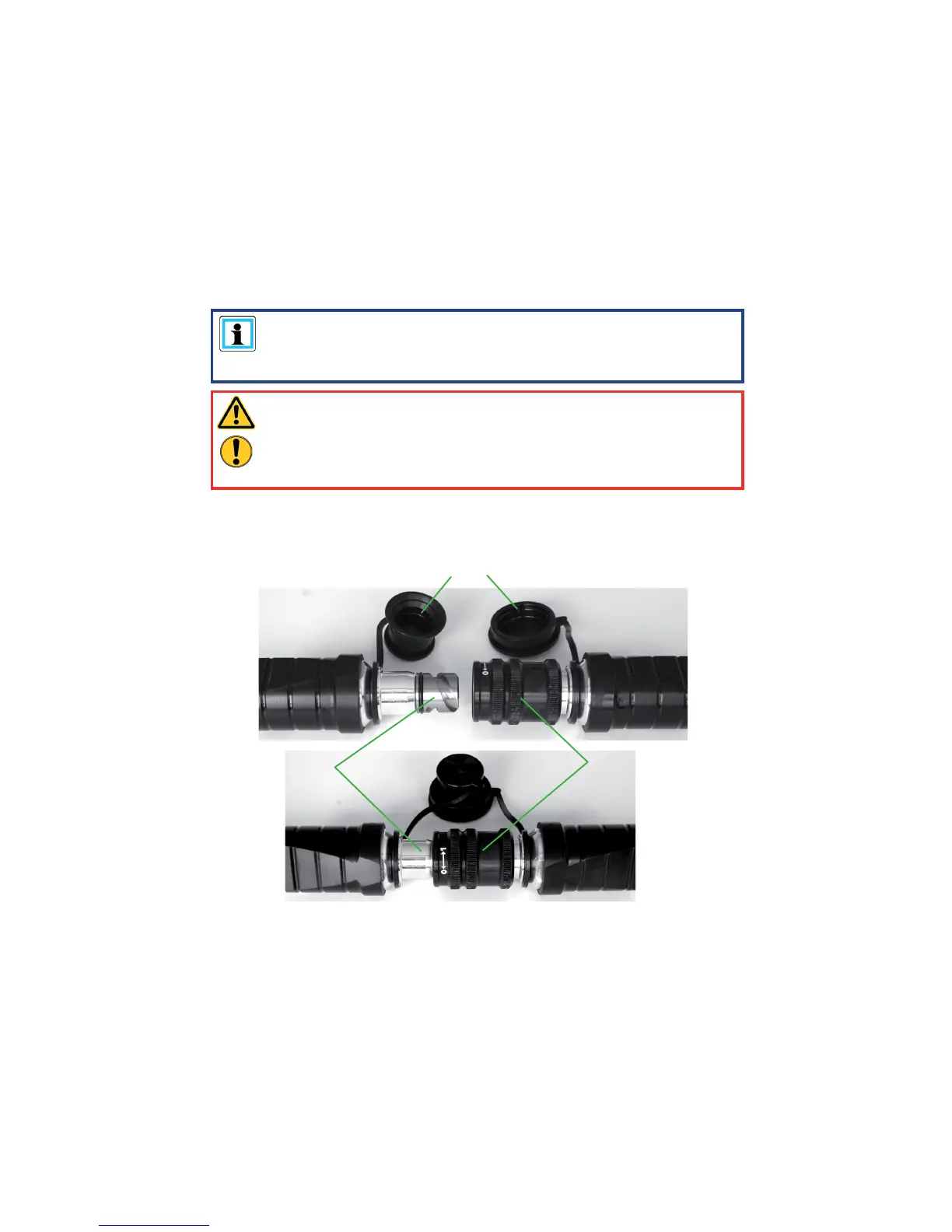

5.2 Coupling the mono-couplings
The equipment is connected to the hydraulic pump via mono-coupling halves (male and
female).
mono-coupling
half (male)
mono-coupling
half (female)
dust protection caps
Before coupling, remove dust protection caps, then connect male and female, and turn
the locking sleeve of the female to direction ‘1’ until the locking sleeve locks into place.
The connection is now in place and secure. Decoupling is by turning the locking sleeve to
direction ‘0’.
The equipment can also be coupled under pressure provided the connected equipment is
not activated.
There are two short hoses on the side of the equipment: they are connected to the pump unit
via two hoses. All hoses have couplings to enable unmistakable connection.
REMARK:
The devices can be equipped with different coupling systems.
They differ only by the article number and not by the designation.
Of course the coupling systems can also be reequipped at a later time.
WARNING / CAUTION!
Before connecting the equipment you have to pay attention that all
used components are suitable to the max operation pressure
of the pump unit! In the case of doubt you have to inquire
HURST directly!
