10.3 Repairs
10.3.1 Changing the tip
Procedure:

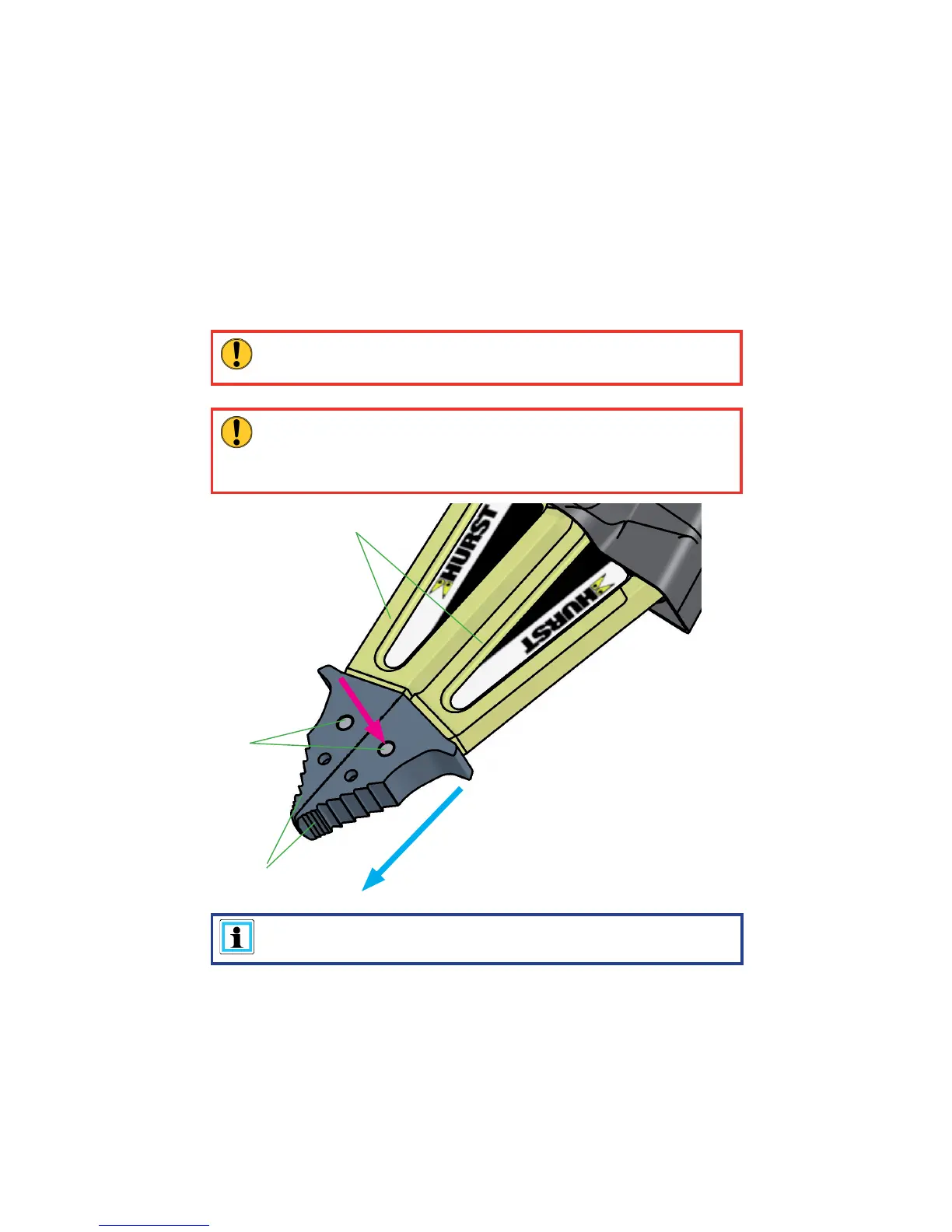

1. Press the interlock bolt ‘A’ out and remove it,
2. Pull the tip ‘B’ from the spreader arm ‘C’ and replace it,
CAUTION!
Before assembly, apply HURST special grease to all sliding surfaces after
having thoroughly cleaned them.
CAUTION!
Before assembly, apply HURST special grease to all sliding surfaces after
having thoroughly cleaned them.
Also observe the installation position of the adapter sleeve to ensure optimum
force distribution!
3. Push the interlock bolt into the designated hole till it locks.
REMARK:
Always replace both tips.
