HURST KL-32 - Page 24

24

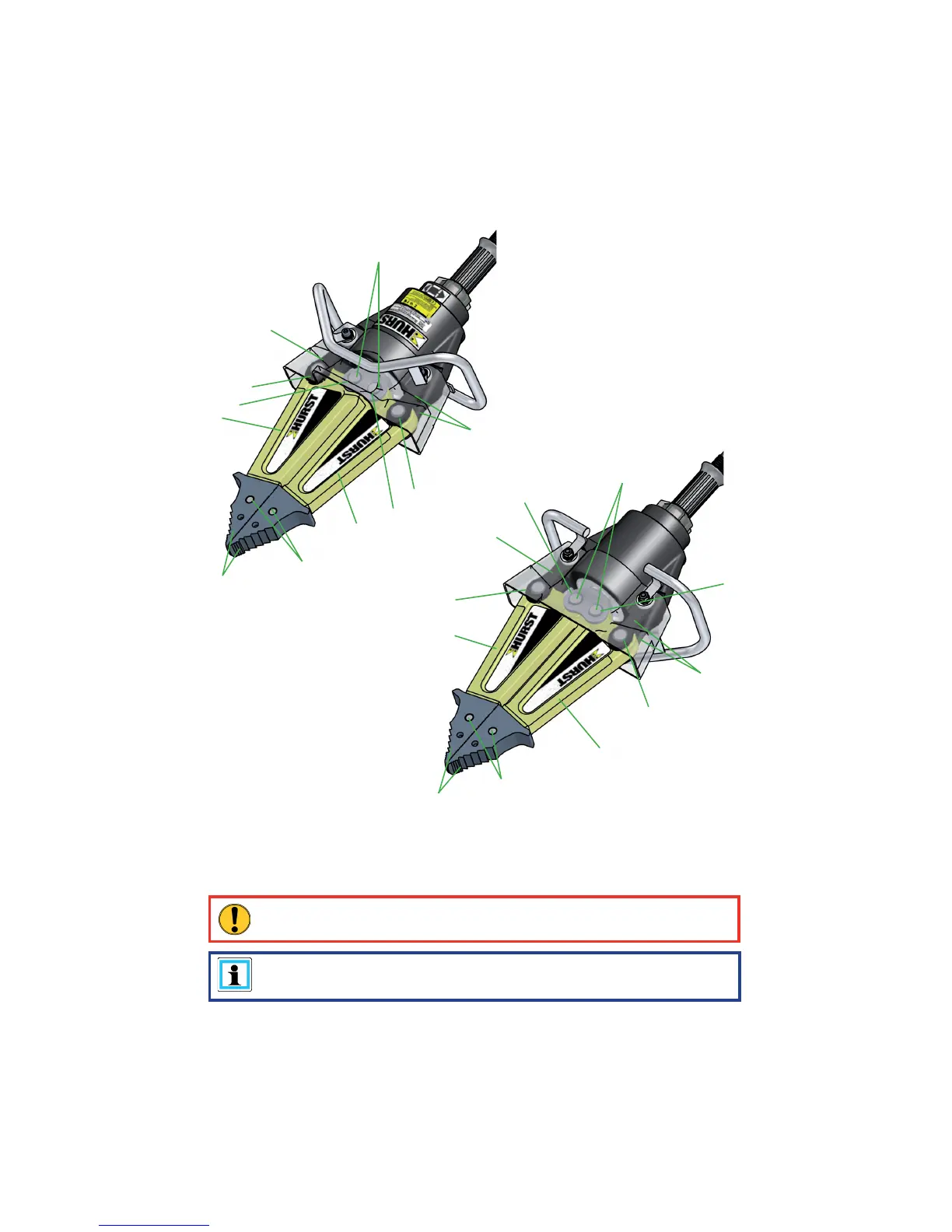

5. Remove the interlock bolts ‘F’.
6. Remove the retaining rings ‘H’ and remove the links ‘J’.
7. The pins “L” can be removed after removing the retaining rings ‘K’.
8. Now, you can remove the spreader arms ‘M’ and replace them.
9. The work steps must be carried out in reverse order to fi t the new parts.
NOTE:
The torque required can be taken from the spare parts list.
CAUTION!
Don’t forget to apply HURST special grease to all sliding surfaces.
H
J
J
F
J
G
L
L
K
M
M
F
G
H
H
H
J
M
M
K
K
K
