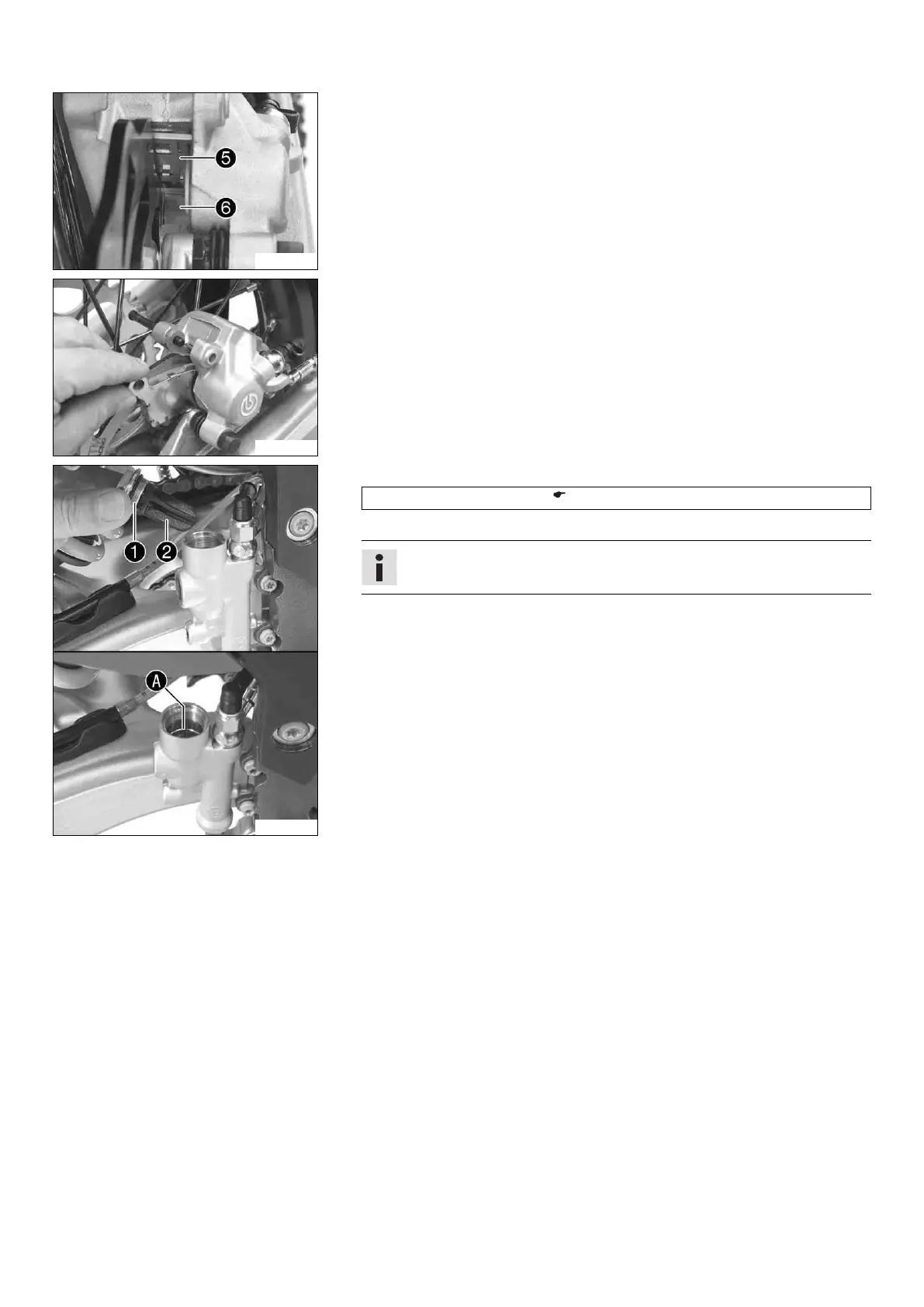

– Check that leaf spring 5 in the brake caliper and sliding plate 6 in the brake
caliper support are seated correctly.
L00196-10
– Insert the brake linings, insert the pin, and mount the cotter pin.
– Operate the foot brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
L00204-10
– Correct the brake fluid level to marking A.
Brake fluid DOT 4 / DOT 5.1 ( p. 106)
– Mount screw cap 1 with membrane 2 and the O-ring.
Info
Clean up overflowed or spilt brake fluid immediately with water.
