DISMOUNTING AND MOUNTING THE ENGINE
B
5

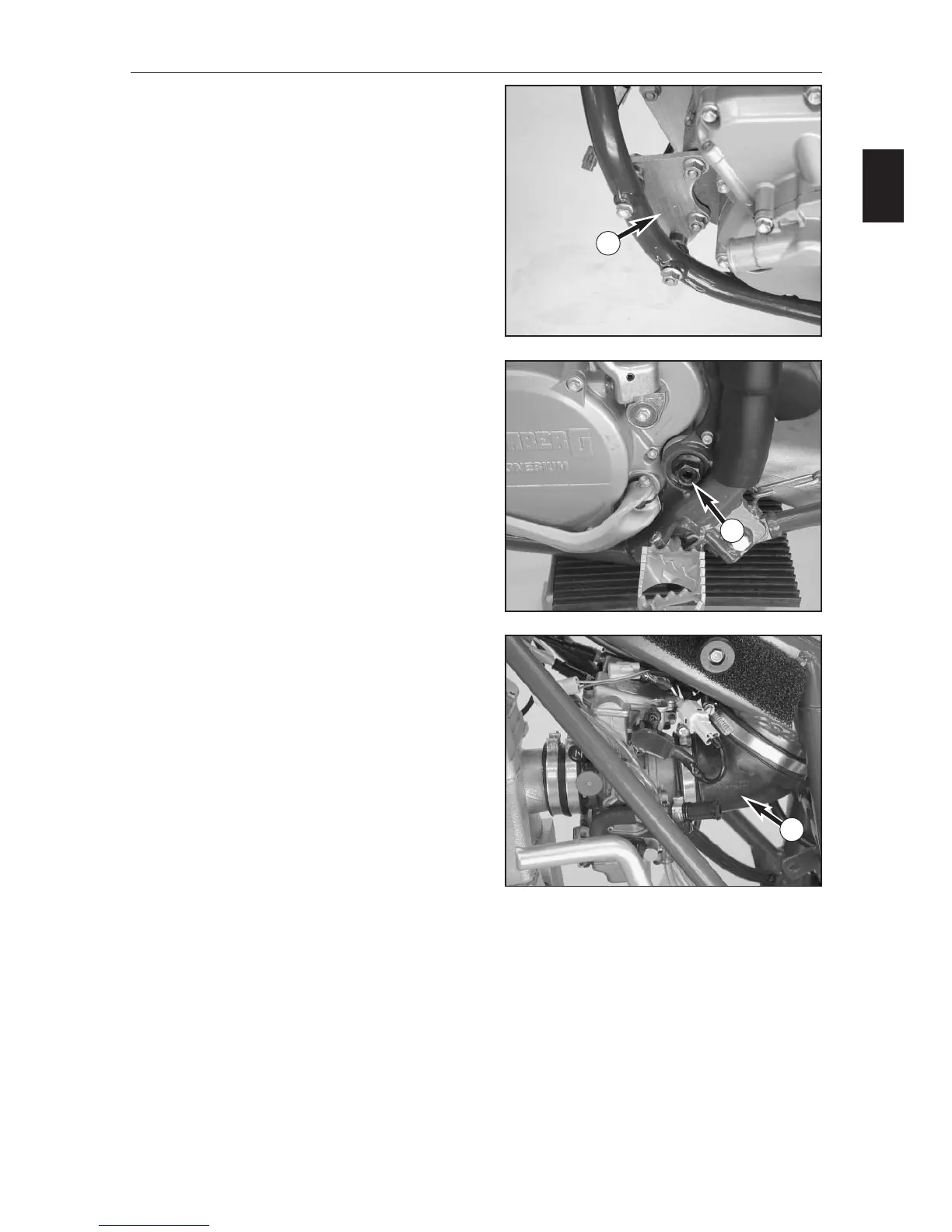

MOUNTING THE ENGINE
–Lift the engine into the frame, position the engine
mounting plates (1), insert the bolts and screw on the
nuts but do not tighten yet.
– Position the swing arm and push in the swing arm
pivot (2) from the right until it touches the engine.
– Lift the engine until the swing arm pivot can be
pushed through the engine case, gently tapping with a
plastic hammer if necessary.
– Screw the nut on the swing arm pivot and tighten to
100 Nm.
–Tighten the nuts on the engine mounting plates to
25 Nm.
– Insert the carburetor in the front carburetor connection
boot and tighten the clamps.
–Mount the rear carburetor connection boot (3) and
tighten the clamps
2
1
3
