Huskee 26750TSC User Manual

22
Operator's Manual
26750TSC Compact Tiller
For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5
13
10
18
3
19
2
15
17
1
15
12
26
5
27
24
4
16
14
6
14
6
21
22
25
23
7
27
8
926
20
22
24
25 23
11
28

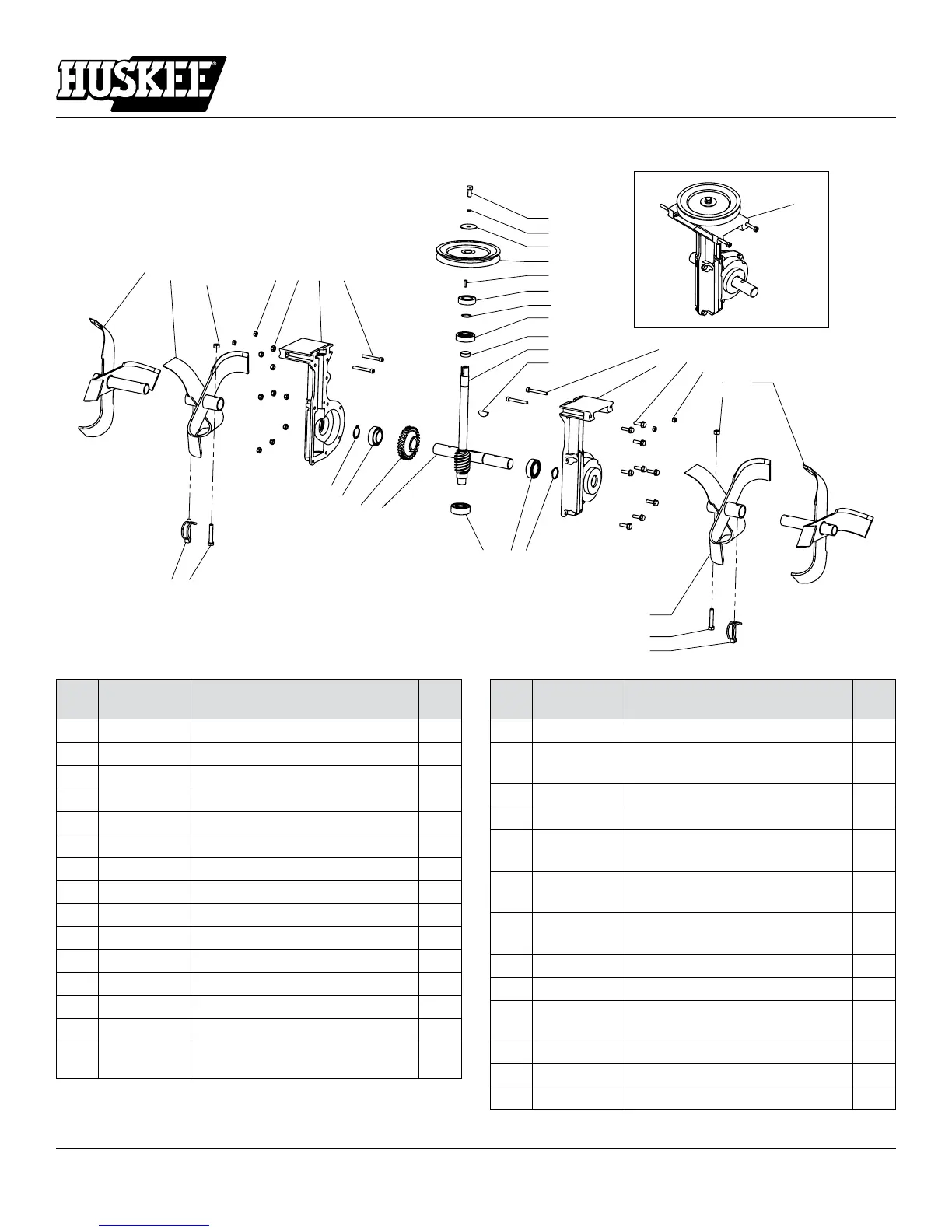

TRANSMISSION ASSEMBLY PARTS EXPLOSION AND PARTS LIST
REF.
NO.
PART # DESCRIPTION QT Y.
1 13610 WORM DRIVESHAFT 20MM OD 1
2 8924 RING RETAINING EXTERNAL 3/4 INCH 1
3 13837 KEY 5MM X 5MM X 16MM 1
4 13612 TINE SHAFT 25MM OD 8MM KEY FT 1
5 13611 KEY 6MM X 24MM HALFMOON 1
6 1810 SNAP RING 1" PHOSPH EXTERNAL 2
7 13613* CASTING ALUMINUM FT RIGHT SIDE 1
8 13614* CASTING ALUMINUM FT LEFT SIDE 1
9 13599 NUT M6 X 1.0 HHFNYLK 9
10 803 WASHER 5/16"ID X 1-1/2"OD FLAT 16 GA. 1
11 1916965 WASHER 1/4" SPRING LOCK ZINC 1
12 13600 BOLT M6 X 1.0 X 25 HHF 9
13 W1265V0904 BOLT M8 X 1.25 X 20 HHCS ZN 1
14 13902 BEARING BALL 25MM ID 2
15 3220 BEARING TAPERED ROLLING 30204
20 X 47 X 15.2
2
REF.
NO.
PART # DESCRIPTION QT Y.
16 13615 GEAR BRASS 25MM ID 6MM KEY FT 1
17 13590 BUSHING 26MM X 20.22MM X
6.6MM
1
18 13619 PULLEY TRANS SINGLE GROVE 1
19 3309 BEARING 6004 2RS 1
20 13905 TINE SET OUTSIDE RIGHT FT 25MM
SHAFT
1
21 13904 TINE SET OUTSIDE LEFT FT 25MM
SHAFT
1
22 13903 TINE SET INSIDE LEFT OR RIGHT
25MM SHAFT
2
23 18098 BOLT M8 x 1.25 x 45 HH GR8.8 ZN 2
24 3252 NUT M8 X 1.25 H GR8.8 ZN 2
25 18039 LOCK PIN 8MM X 40MM (38.1MM
USABLE) BLACK
2
26 W1265V0913 NUT M6 X 1.0 HNYLK GR8.8 ZN 4
27 18137 BOLT M6 x 1.0 x 50 H SHCS GR 8.8 ZN 4
28 13586 ASSEMBLY COMPLETE TRANS -
* Right and left castings sold as complete transmission
13586 Assembly only.

Huskee 26750TSC Specifications

General

Brand	Huskee
Model	26750TSC
Category	Tiller
Language	English
