Huskee MC43TSC - Transmission Parts Diagram

OPERATOR INSTRUCTIONS AND PARTS
MC43ETSC & MC43TSC Cultivator
Page 25
GetEarthquake.com
800-345-6007
KEY PART # DESCRIPTION QTY.
1 300414 CLUTCH DRUM 1
4608 TINE SHAFT (
USE P/N 4651)
4609 GEAR,
TINE SHAFT (USE P/N4651)
4 4610 SHIM, TINE SHAFT 4
5 4613 WORM SPUD 1
6 46135 TRANSMISSION CASTING, RIGHT 1
7 46136 TRANSMISSION CASTING, LEFT 1
8 46137 DRIVE SHAFT 1
9 46138 TRANSMISSION ASSEMBLY 1
10 4614 BUSHING, DRIVE SHAFT 2
11 4615 THRUST BEARING ASSEMBLY 1
12 4616 SPACER, BUSHING 1
13 4617 REDUCER, THRUST BEARING 1
KEY PART # DESCRIPTION QTY.
14 4618 WASHER, THRUST 2
15 4619 THRUST BEARING CAGE WASHER 1
16 4620 NUT, JAM M8 1
17 4623 BALL BEARING, 9MM 1
18 4633 ARM WHEEL/DRAG STAKE MOUNT 1
19 4645 BUSHING, TINE SHAFT 2
20 4646 SEAL, TINE SHAFT 2
21 4647 BOLT, FLG HEX HD M6 X 1.0 X 18MM 4
22 4648 BOLT, FLG HEX HD M6 X 1.0 X 22MM 2
23 4649 BOLT, FLG HEX HD M6 X 1.0 X 24MM 2
24 4650 NUT, FLANGED HEX HD M6 2
25 4651 TINE GEAR & SHAFT ASSEMBLY 1
9
15
7
19
4
16
1
17
8
22
6
19
4
10
14
11
13
5
25
21
20
23
18
20
12
10
24

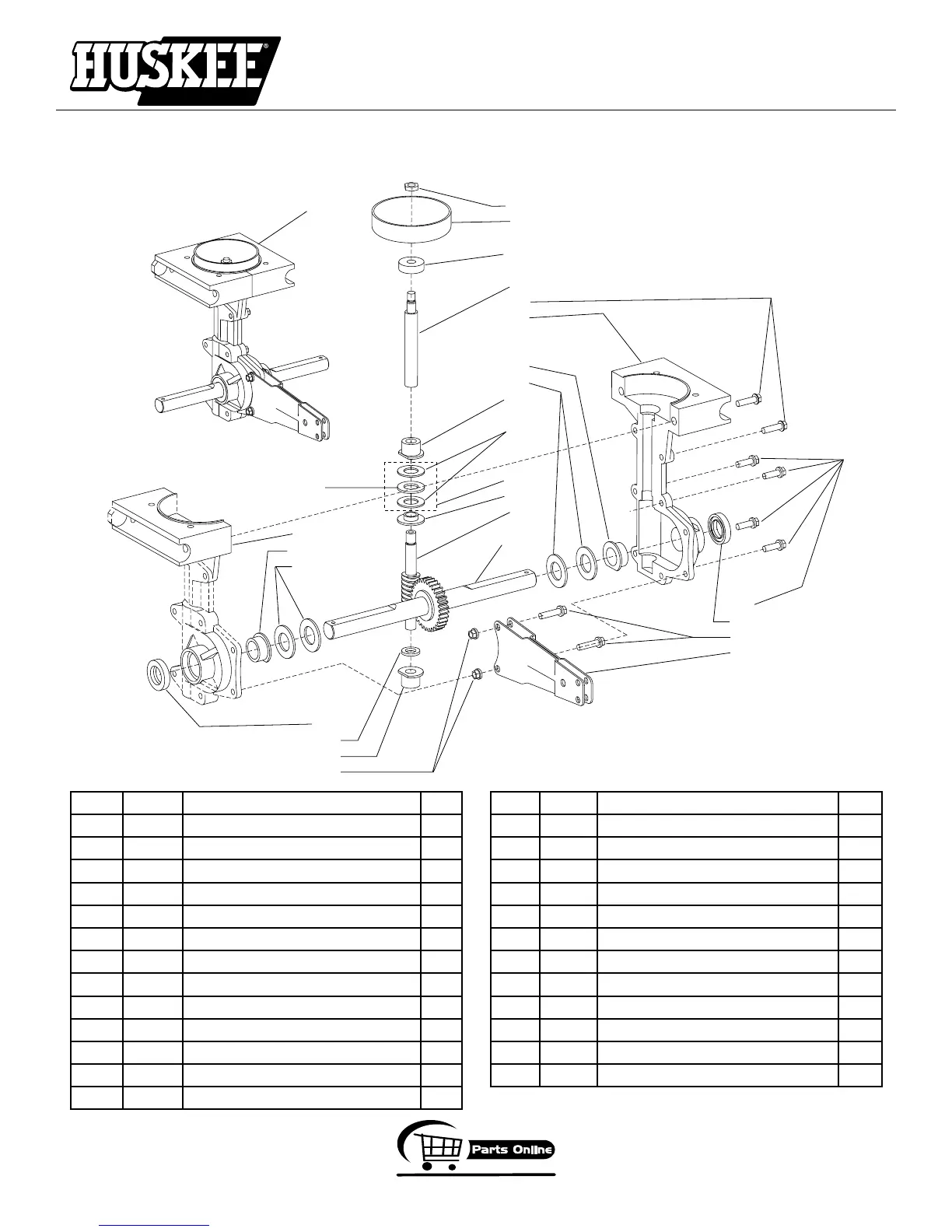

TRANSMISSION PARTS
