OPERATOR INSTRUCTIONS AND PARTS
MC43ETSC & MC43TSC Cultivator
Page 29
800-345-6007
DK43 Dethatcher Kit
(fits both Models MC43TSC & MC43ETSC or stand-alone as MD43)
46145
Detent Pin
Nuts/Bolts (4 each)
4650/46142
4676
Plate Wheel Extension
The Dethatcher Kit is very effective for lifting away the excessive matted layers of thatch that can prevent moisture,
oxygen and nutrients from penetrating the soil and can harbor disease and insects. Use in Spring, Summer, and Fall to
bring life and color back to your lawn.
1. Disconnect spark plug wire from spark plug. Remove the cultivating tines (if so equipped). Refer to exploded view
below for detailed assembly.
2. Slide the Left and Right Dethatcher Assemblies onto the tine shaft making sure the Right Assembly is installed on the
right side and Left Assembly is installed on the left side as defined from the user’s position.
3. Secure dethatcher assemblies using the hairpins 46134.
4. Slide dethatcher shield over the unit’s tine shield from the rear of the unit and secure using bolts 4694, washers 4692,
and nuts 4694.
5. Secure the lower part of the dethatcher shield to the drag stake mount using the detent pin 46145. Re-connect
spark plug wire.
6. Install wheel extension plate 4676 using additional bolts 46142 and nuts 4650
NOTE: The drag stake should not be used when using the dethatcher kit.
4708
Right Side
Dethatcher
Assembly
4707
Left Side
Dethatcher
Assembly
46134
Hairpin
4691
Bolt
4694
Nut
4692
Washer
46134
4651
Tine Shaft

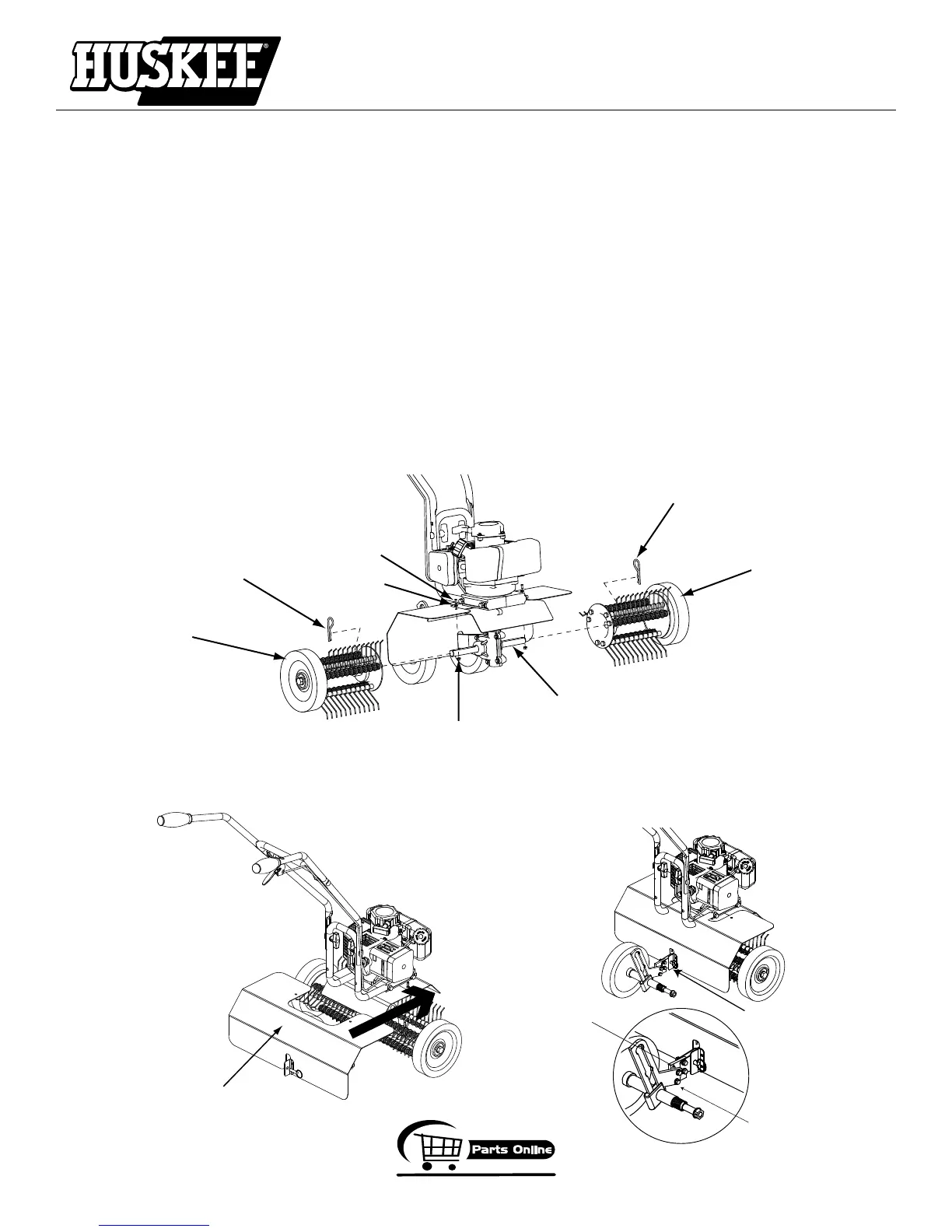

DK43 DETHATCHER KIT INSTALLATION (OPTIONAL ACCESSORY)
To Next Page
