OPERATOR INSTRUCTIONS AND PARTS
MC43ETSC & MC43TSC Cultivator
Page 9
800-345-6007
UNPACKING & ASSEMBLY
UNPACK CULTIVATOR
1. Carefully lift the cultivator out of the box, remove any
packing material and cut any ties holding the handlebar
pieces to the cultivator assembly.
ASSEMBLY
1. Stand the cultivator assembly upright with tines and
wheels on a level surface. Wheels should be set in the
lowest position. DO NOT place the cultivator on a high
surface where it can fall and cause property damage
or personal injury.
2. Using two tee handle nuts (4640), two bolts (4642),
and two curved washers (4641), assemble the middle
handlebar (4693) to the lower handlebar (4695) that
is already attached to the cultivator assembly. SEE
FIGURE 1. The middle handlebar can be installed in two
positions one high and one low. DO NOT overtighten
the tee handle nuts.
3. Attach the upper right and left handlebars (4689 & 4690)
to the middle handlebar using the two remaining tee
handle nuts, bolts, and curved washers. SEE FIGURE
1. DO NOT overtighten the tee handle nuts.
4. The drag stake is shipped with point facing upwards.
Before using, remove detent pin and turn the drag
stake around so the point is directed in the downward
position facing towards the tines. Re-insert detent pin.
SEE FIGURE 2A.
For the Electric Start Cultivator Model MC43ETSC,
remove the battery box cover and plug the white plastic
connector from the battery into the mating white plastic
connector in the battery box. SEE FIGURE 2B. Make
sure the ignition key is removed from the ignition before
connecting the wiring for the battery.

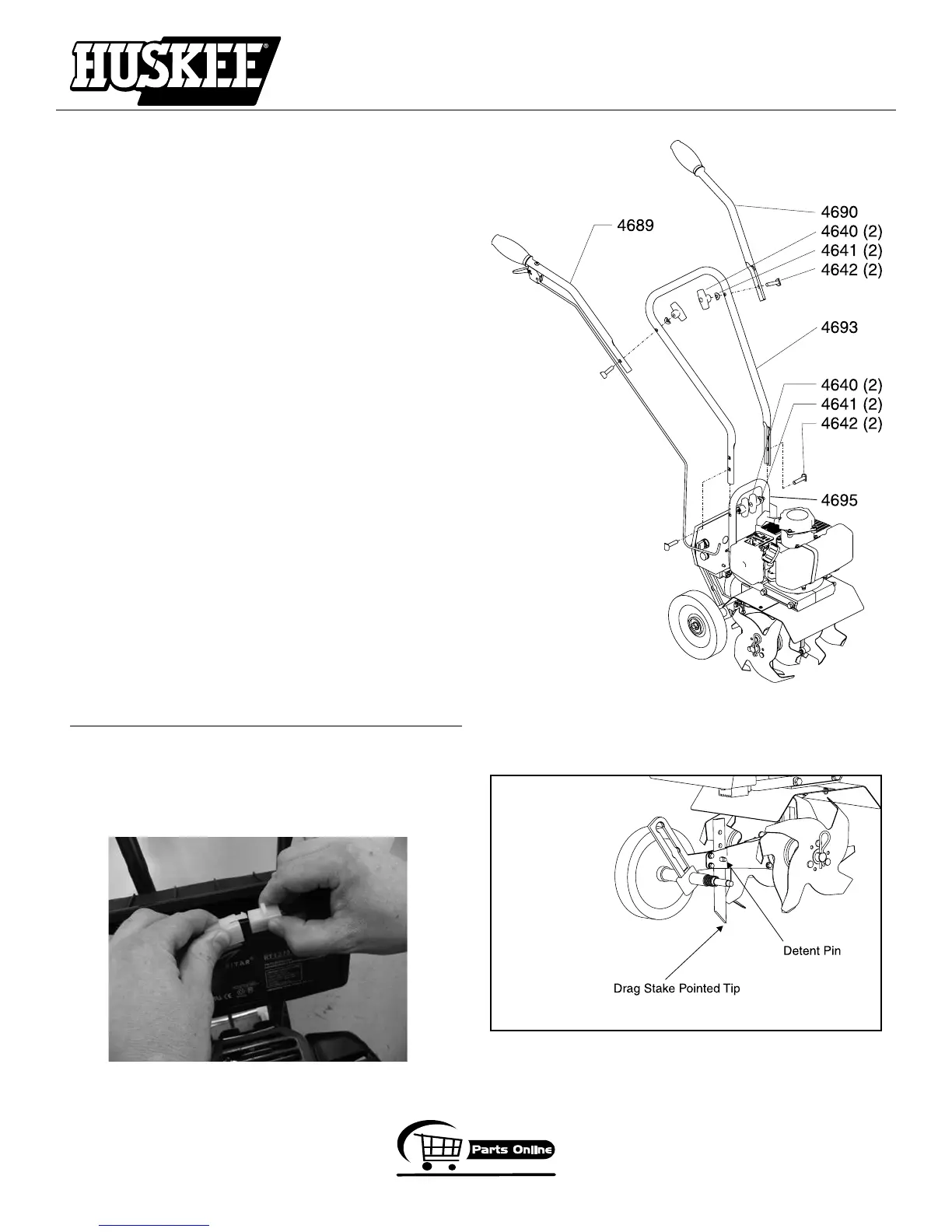

FIGURE 1
(Model MC43ETSC shown. Figure 1 applies to
both models MC43TSC & MC43ETSC.)
FIGURE 2B
FIGURE 2A
