Assembly & Installation Procedures
1. Upright and Cross Beam Assembly

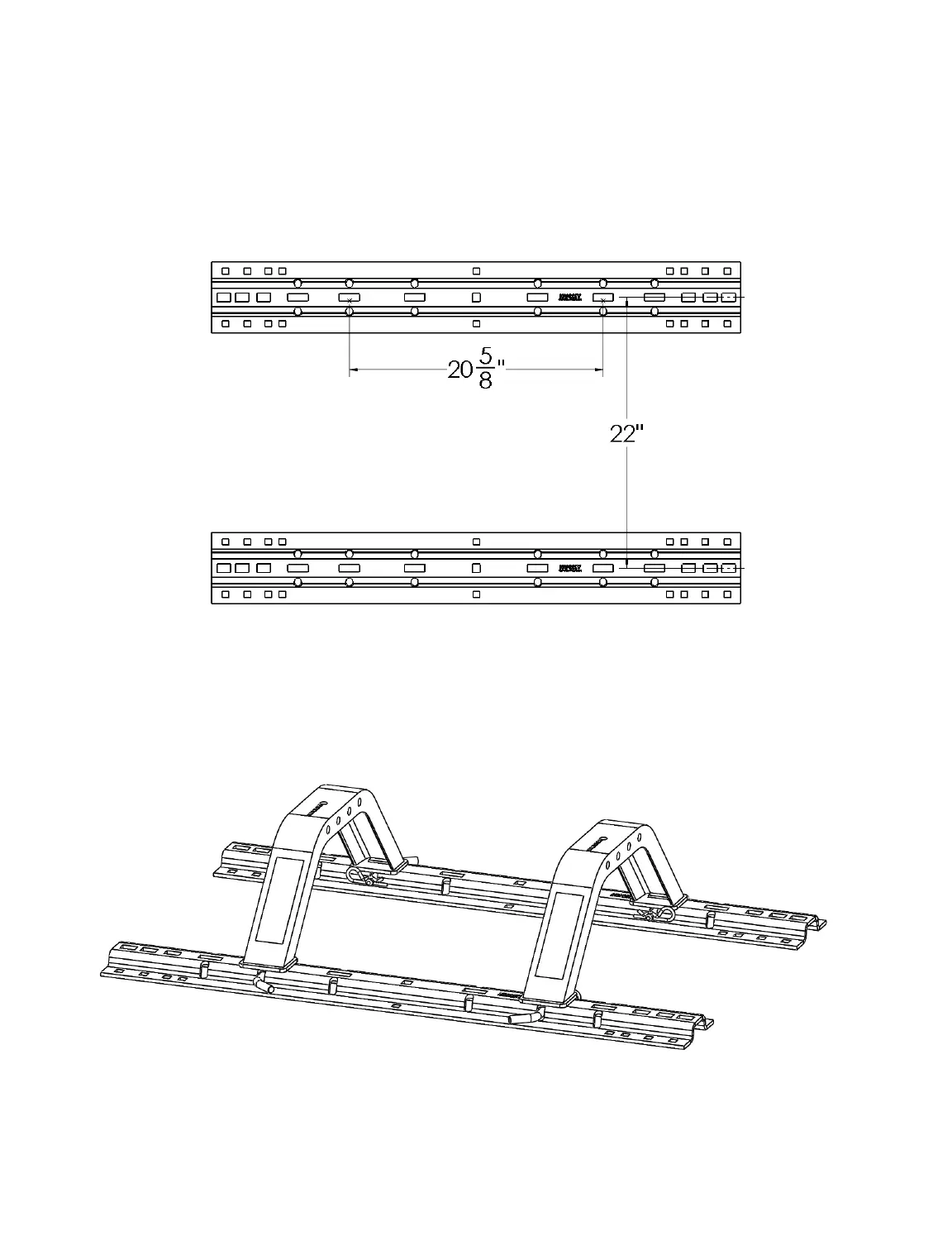

A) If using pre-existing base rails ensure that the center to center (fore and aft) distance is
22” and that there are two pairs of slots in the base rails that are 20-5/8"” apart (side to
side) Otherwise contact your local dealer for proper base rail selection and installation.
B) Place the uprights into the base rails with the decals facing the rear of the truck.
Secure the uprights to the base rails using the 1 /2 inch diameter clevis pins and secure
using the large hairclips in the hardware bag.
