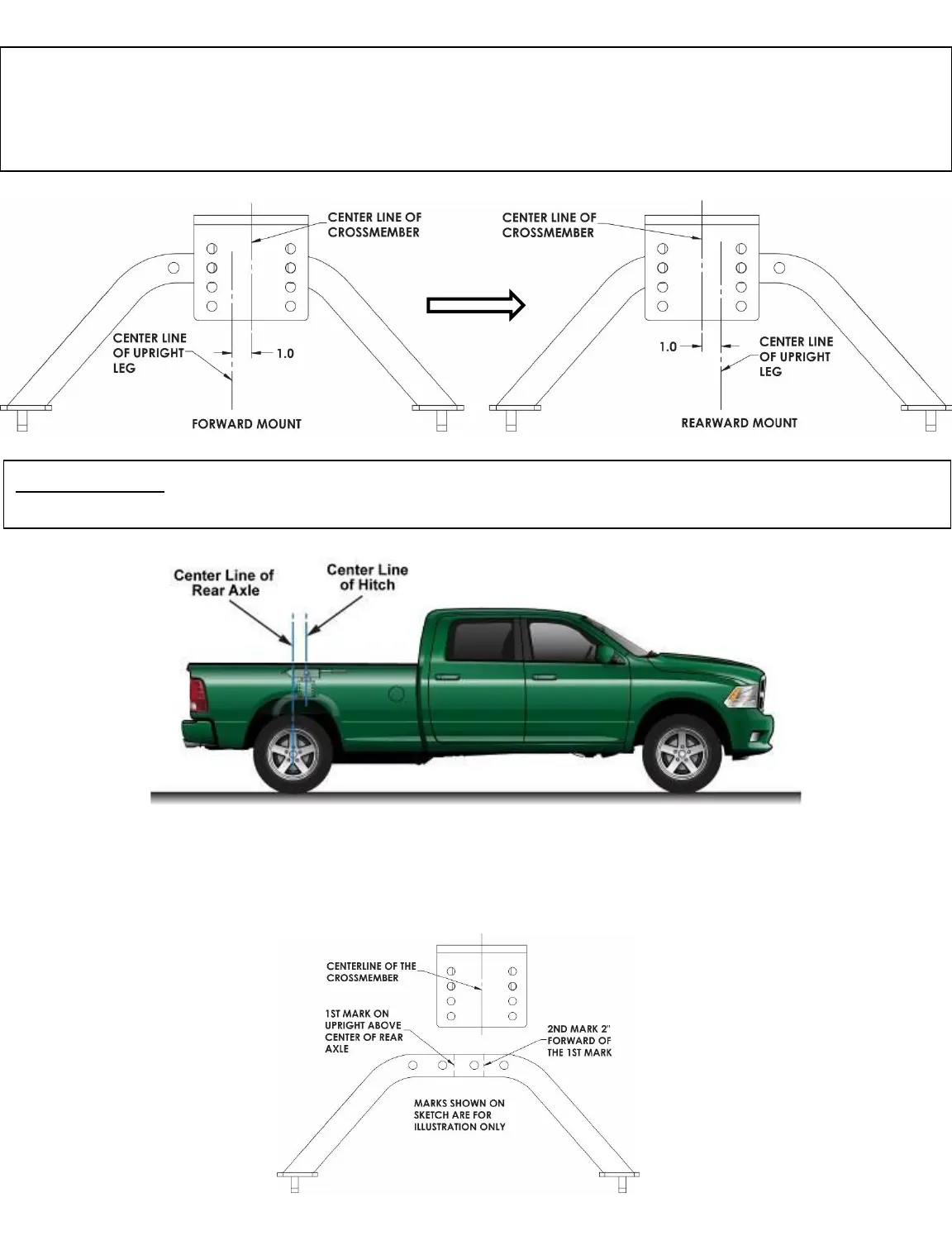

C) Install the Cross Beam.
NOTE: - The Cross Beam is adjustable in both the Vertical and the Fore & Aft
directions. There are 4 vertical mounting positions in 1” increments. 2 Sets of holes
in the Upright (item 17) provides 1” fore and aft movement from the center line of the
Uprights.
IMPORTANT:- The Center of the 5thWheel Hitch should be positioned between 1”
and 3” forward of the Center of the Rear Axle.
D) Find the center line of the rear axle and mark on the upright. Measure 1” forward of
the mark and put a 2nd mark on the upright. Find a set of bolt holes in the upright and
cross beam which positions the center of the cross beam as close as possible to this 2nd
mark, while always keeping the center of the cross beam forward of the rear axle.
FRONT OF TRUCK
