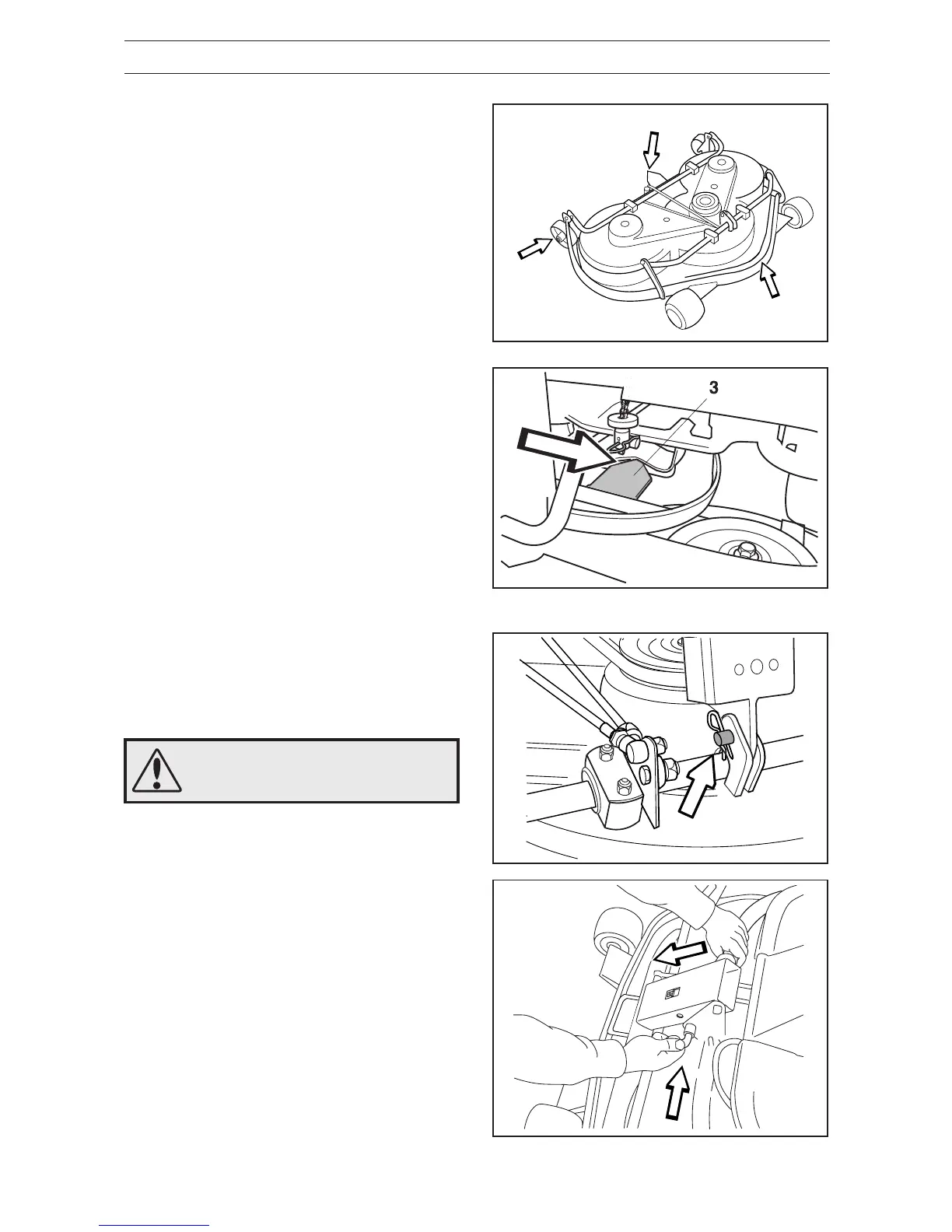

Fitting the cutting unit
1. Place the Rider on a flat surface and apply the
parking brake. Check that the lever for setting the
cutting height is in the lowest position.
Make sure the support wheels are fitted to the
cutting unit (1).
2. Grasp the handle at the front (BioClip 90) or hold
the frame of the cutting unit (2) and slide the unit
underneath the rider mower, making sure that
the tongue on the cutting unit (3) engages
correctly.
3. Insert the bolt and secure it with a locking pin.
4. Press down the frame and insert the pin. Fit the
drive belt around the drive wheels of the cutting
unit.
5. Hook up the height adjustment strut.
6. Fit the front cover.
7. Secure the collet’s spring, see ring in the
diagram below.
6017-159
6017-120
6017-160
WARNING!
Observe caution to avoid trapping
your hand.
8009-438
