6
–
English
WHA
T IS
WHA
T?
What is what on the c
hain saw?
2
3
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 29
30
31
1

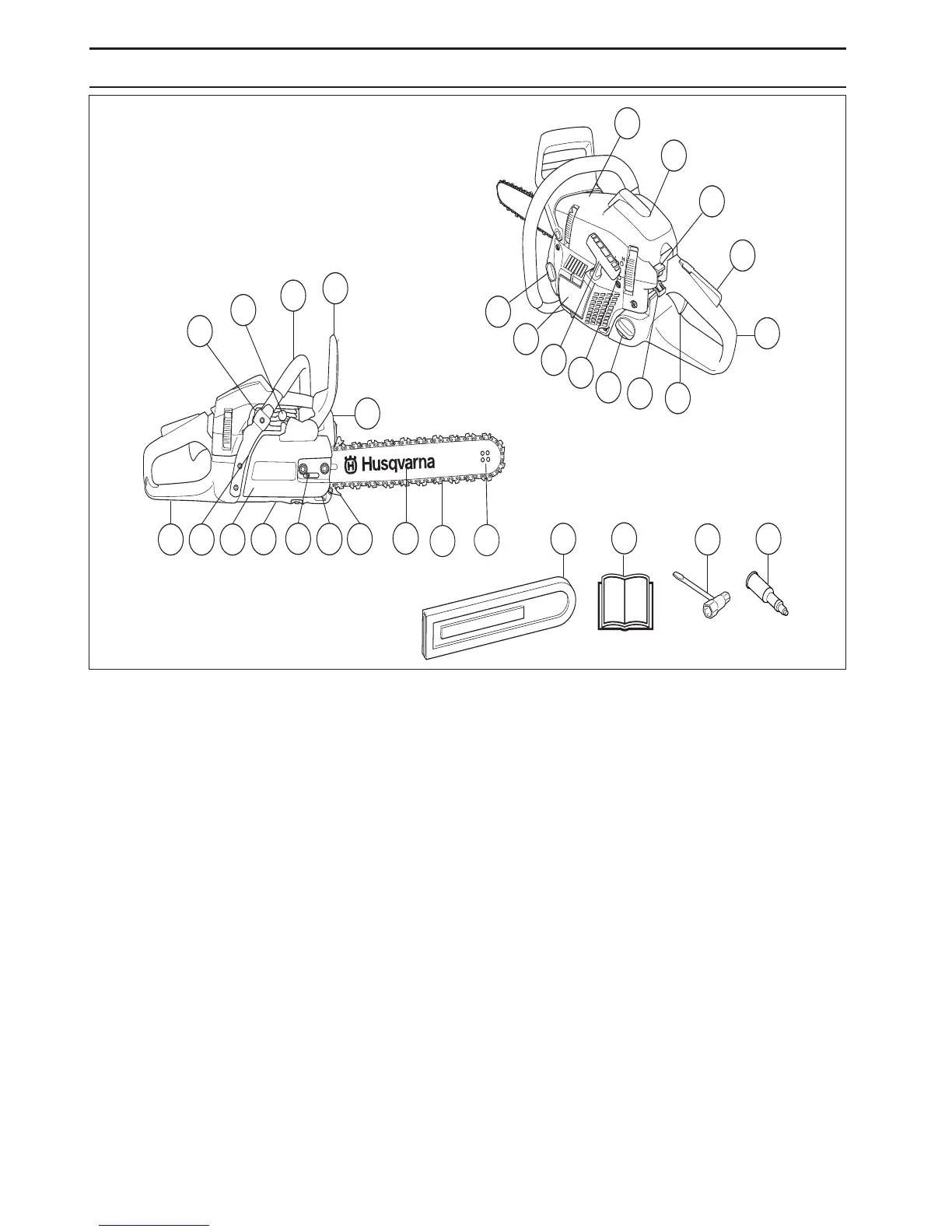

Information and warning decal
2 Cylinder cover
3 Stop switch (Ignition on/off switch.)
4 Throttle trigger lockout
5 Rear handle
6 Throttle trigger
7 Choke control/Start throttle lock
8 Fuel tank
9 Adjuster screws carburetor
10 Starter handle
11 Starter housing
12 Chain oil tank
13 Muffler
14 Chain brake and front hand guard
15 Front handle
16 Decompression valve (Model 359) Automatic
decompression valve (Model 357XP)
17 Switch for heated handle (Models 357XPG, 359G)
18 Right hand guard
19 Product and serial number plate
20 Clutch cover
21 Oil pump adjustment screw
22 Chain tensioning screw
23 Chain catcher
24 Bumper spike
25 Saw chain
26 Guide bar
27 Bar tip sprocket
28 Guide bar cover
29 Operator’s manual
30 Combination spanner
31 Grease gun
