2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

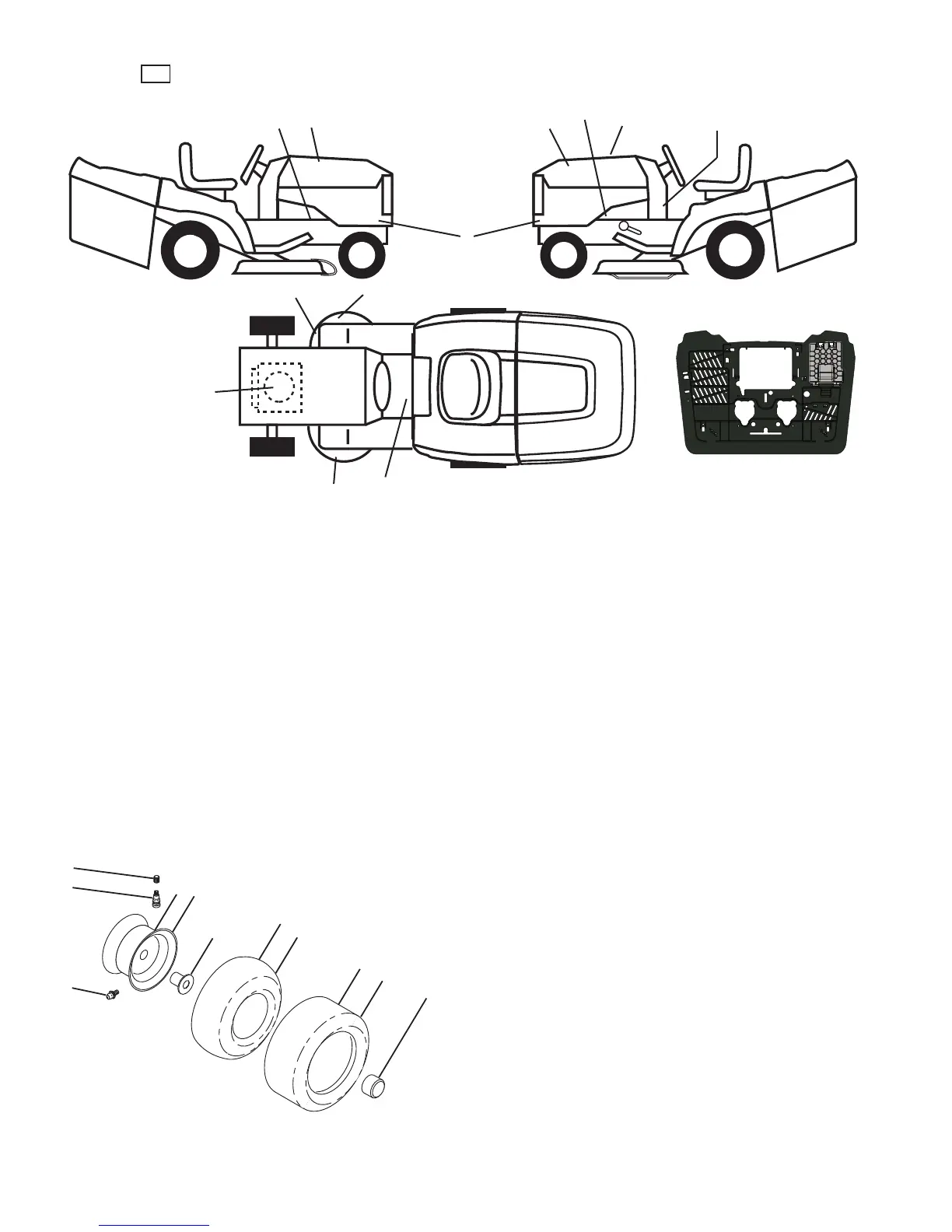

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire R 18 x 9.5-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
TRACTOR - MODEL NO. CTH 164T (96051010700), PRODUCT NO. 960 51 01-07
DECALS
27
KEY PART
NO. NO. DESCRIPTION
1 581 57 83-01 Decal, Warning Sym.
2 581 57 97-01 Decal, Warning Eng. Sym.
3 581 62 73-01 Decal, Hood
4 581 56 38-01 Decal, Replacement
7 581 57 84-01 Decal, Lower Dash
8 532 44 61-59 Decal, Side Panel
11 581 57 91-01 Decal, Mower Cut Finger Symbol
14 581 57 96-01 Decal, Chassis Hot Muffler
21 532 44 11-89 Decal, Belt
- - 532 44 46-19 Decal, Bypass
- - 532 44 14-09 Pad Footrest LH
- - 532 44 14-10 Pad Footrest RH
- - 115 61 18-20 Manual Operator's (Euro)
- - 115 61 18-10 Manual Operator's (Scan)
- - 115 61 18-50 Manual Operator's (E-Bloc)
- - 115 61 18-40 Manual Operator's (Baltic)
KEY PART
NO. NO. DESCRIPTION
3
14
21
1
3
14
4
7
11
2
11
8
