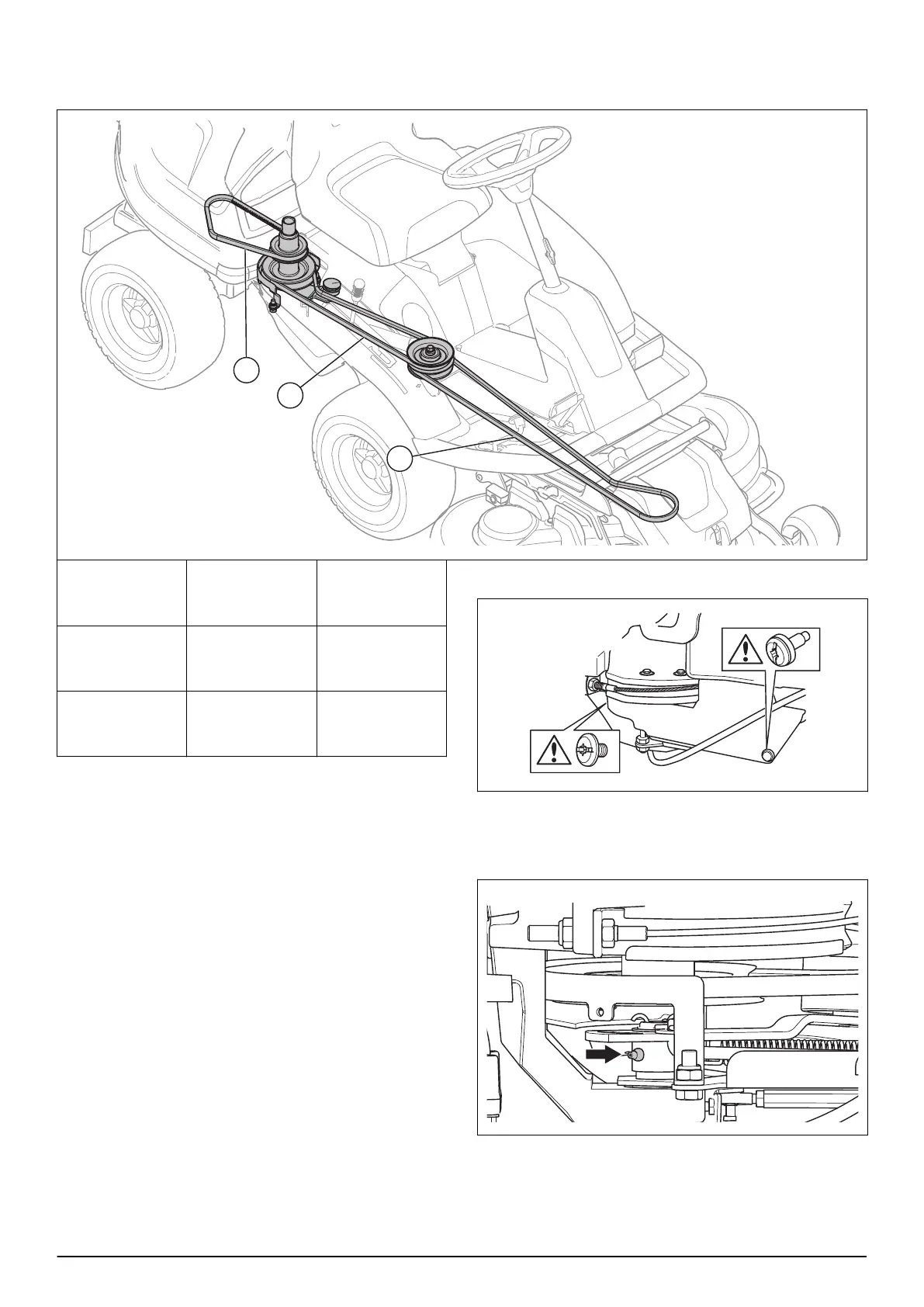

9.9 Belts
9.9.1 Belts overview
Belt 1
Transmission
belt
Engine pulley to
transmission pul-
ley
Belt 2 Main belt
Engine pulley to
intermediate pul-
ley
Belt 3 Equipment belt
Intermediate pul-
ley to cutting
deck
9.9.2 To lubricate the belt adjuster
The belt adjuster must be lubricated regularly with a
good quality molybdenum disulphide grease.
1. Remove the 2 screws that hold the belt cover and
remove the cover.
2. Lubricate with a grease gun through the grease
nipple at the right side, below the lower belt pulley.
Lubricate until grease comes out of the rear side of
the grease nipple.
3. Attach the belt cover and tighten the 2 screws.
1592 - 002 - 11.02.2021 Repair instructions - 43
