Husqvarna SMR-510 User Manual

M.23Part. N. 8000 H1344 (10-2009)

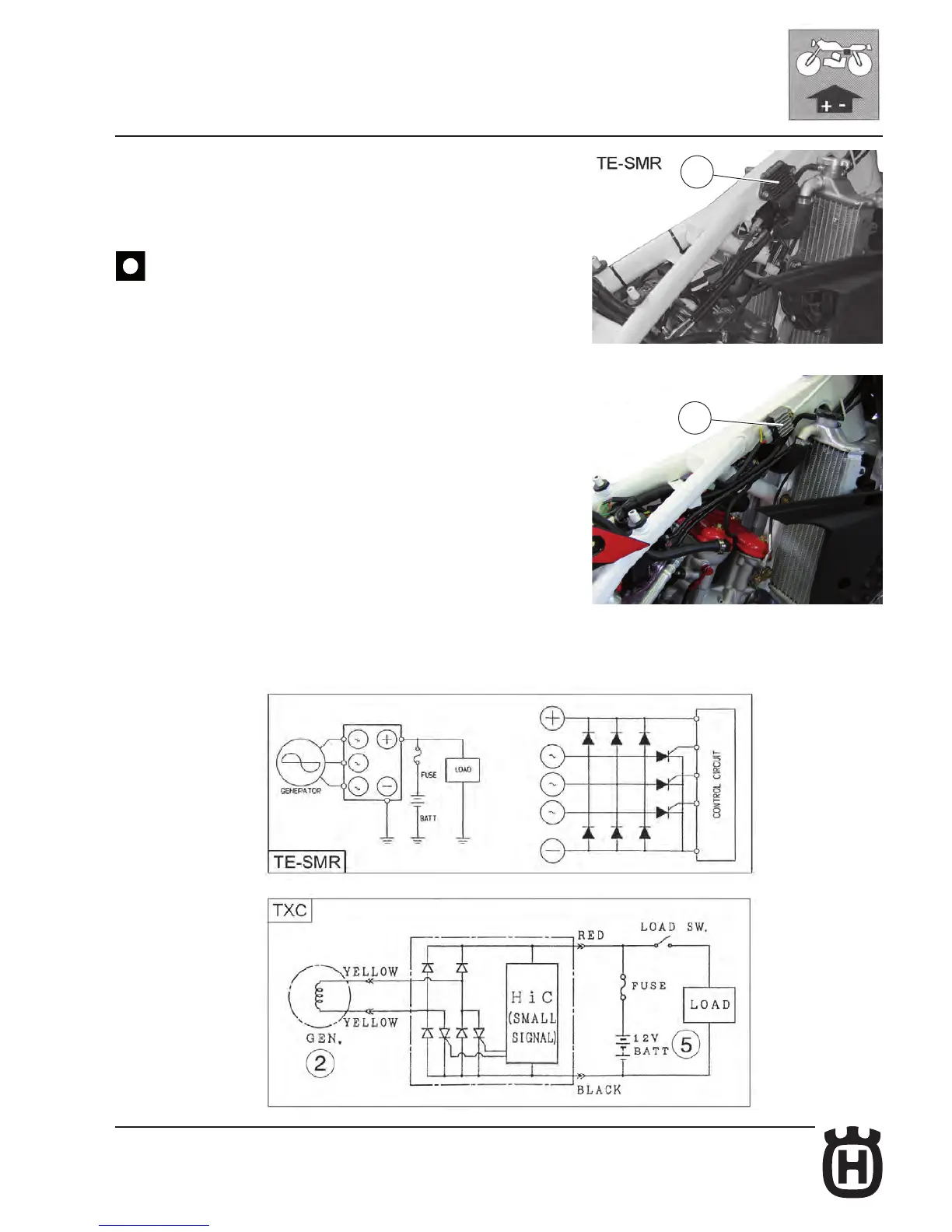

ELECTRIC SYSTEM, DIGITAL INSTRUMENT
VOLTAGE REGULATOR-RECTIFIER WIRING DIAGRAM
1
Voltage regulator (TE-SMR-TXC)
The voltage regulator (1) contains the diodes to rectify the current produced by
the generator.
It contains also an electronic device operating in relation to the battery tension: if
battery has a “low” charge, recharge current will be high; on the contary if battery
will be charged the current will be lower.
: Do not disconnect the battery cables when engine is on, since the
regulator should be irreparably damaged.
1
TXC

Husqvarna SMR-510 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	510cc
Transmission	6-speed
Cooling System	Liquid-cooled
Ignition	Electronic
