Workshop Manual Ed. 03-2012

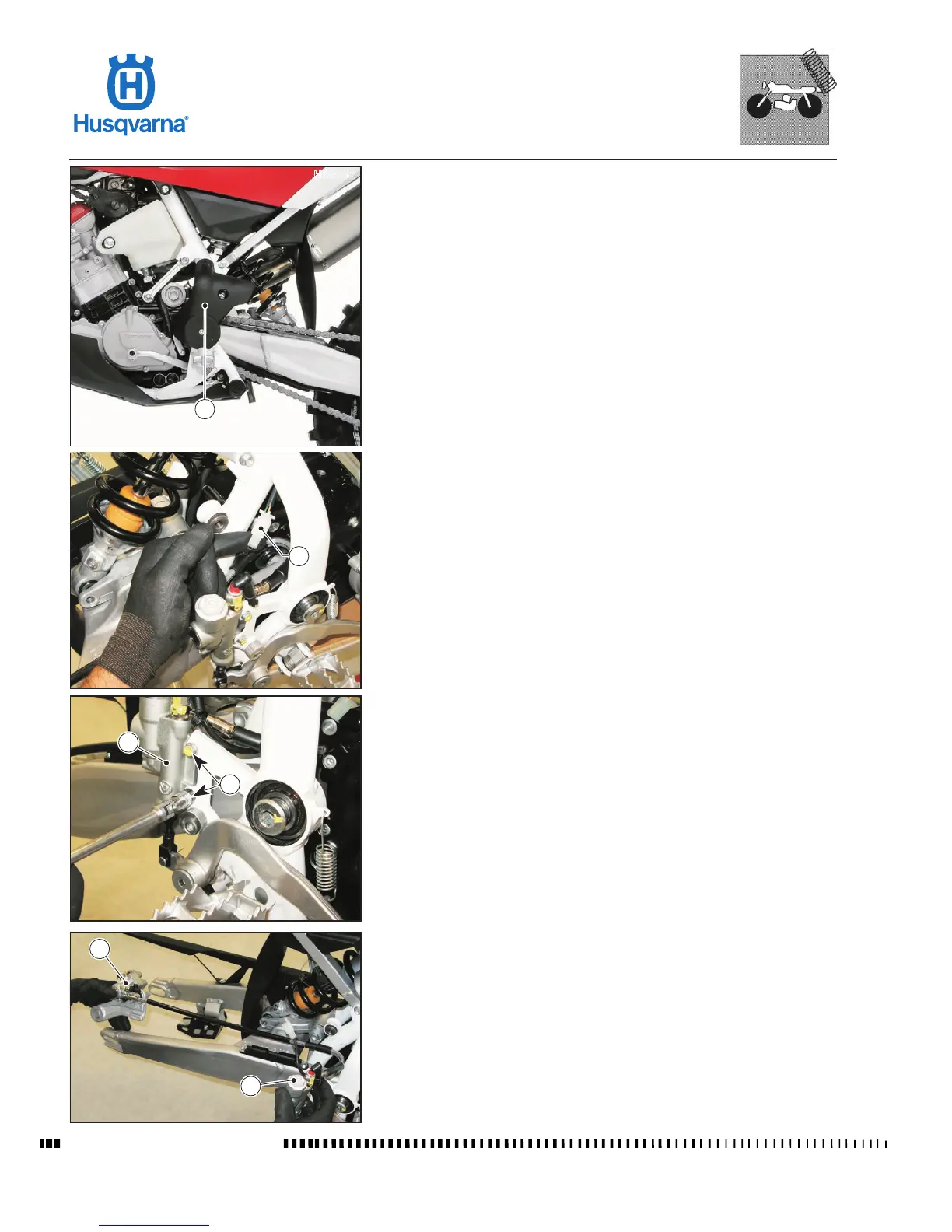

REAR SUSPENSION
Disassembling and servicing the swinging arm
- Remove the chain and rear wheel, as described in the relevant chapters.
- Remove the two side protections (A) from the chassis.
- Disconnect the rear stop connector (1).
- Loosen the two screws (2) and remove the brake master cylinder (3) complete
with tube and calliper (4).
