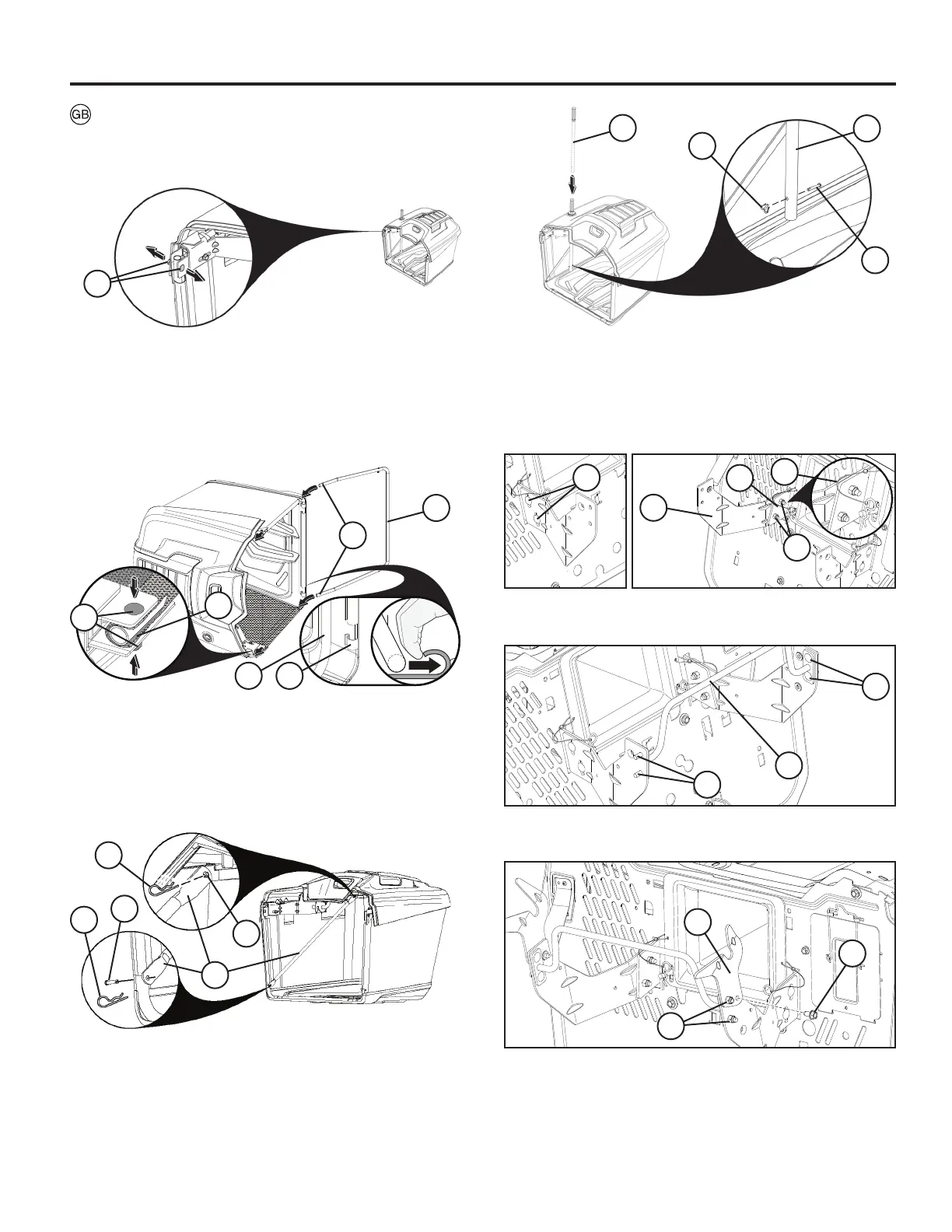

TO ASSEMBLE BAGGER
• Unfold bag and stand right side up.
• Uninstall carriage bolts (5/16-18 x 1.5) and nuts (1) from the
front of the top frame.
• Remove cross braces (6) from inside of bagger assembly.
• Slide cross brace (6) onto pin (7) at the rear of the upper
bagger frame and secure with retainer spring clip (8).
• Slide cross brace (6) onto pin (9) at the front of the bagger
frame and secure with retainer spring clip (10).
• Repeat on opposite side.
• Remove clevis pin (11) and retainer spring (12) from bagger
handle (13).
• Slide bagger handle (13) down through bagger cover and
frame holes.
• Reinstall clevis pin (11) through hole at bottom of bagger
handle (13) and slide retainer spring (12) into hole at the end
of the clevis pin (11) until it locks into place.
13
13
11
12
6
7
9
10
8
1
TO INSTALL BAGGER SUPPORT ASSEMBLY
• Using two carriage bolts (1) and two nuts (2), secure the
left hand mid bracket (3) to the left hand front bracket (4) as
shown. Mid brackets should be on the outside of the front
brackets. Repeat on opposite side.
NOTE: Nominal position (5) is when edges of brackets are
aligned as shown.
• Connect the strut (6) to the left and right mid brackets using
two carriage bolts (7) on each side. Do not install nuts in this
step.
• Install the right bagger pivot (8) using one screw (9) and nuts
(10) as shown. Repeat on opposite side.
1
2
4
53
3
• With bagger assembly on its side, feed front bagger frame
ends (2) through fabric loops at each side of bagger.
• Reinstall carriage bolts and nuts (1) to connect front frame
to top frame, passing through bagger fabric (4). Tighten
securely.
CAUTION: Do not exceed 100 In-Lbs/11,2 Nm.
• Snap front bagger frame bottom (3) into snap feature (5) at
front of bagger bottom.
8
9
10
6
7
7
2
3
4
5
1
To Next Page
