• Once bagger assembly is in proper position, tighten adjust-
ment bolts (2) on both sides to 100 In-Lbs/11,2 Nm. Do NOT
overtighten.
• Readjust if necessary.
VERTICAL ADJUSTMENT
If necessary, the vertical position of the bagger assembly can be
adjusted to maintain proper alignment (B) between the fender
and the bagger assembly top.
• Replace bagger assembly onto bagger supports (4).
• Readjust if necessary.
• Remove bagger assembly.
• Do NOT remove; ONLY loosen nuts (3).
• Raise or lower the bagger support brackets (4) to proper
position and retighten nuts (3).

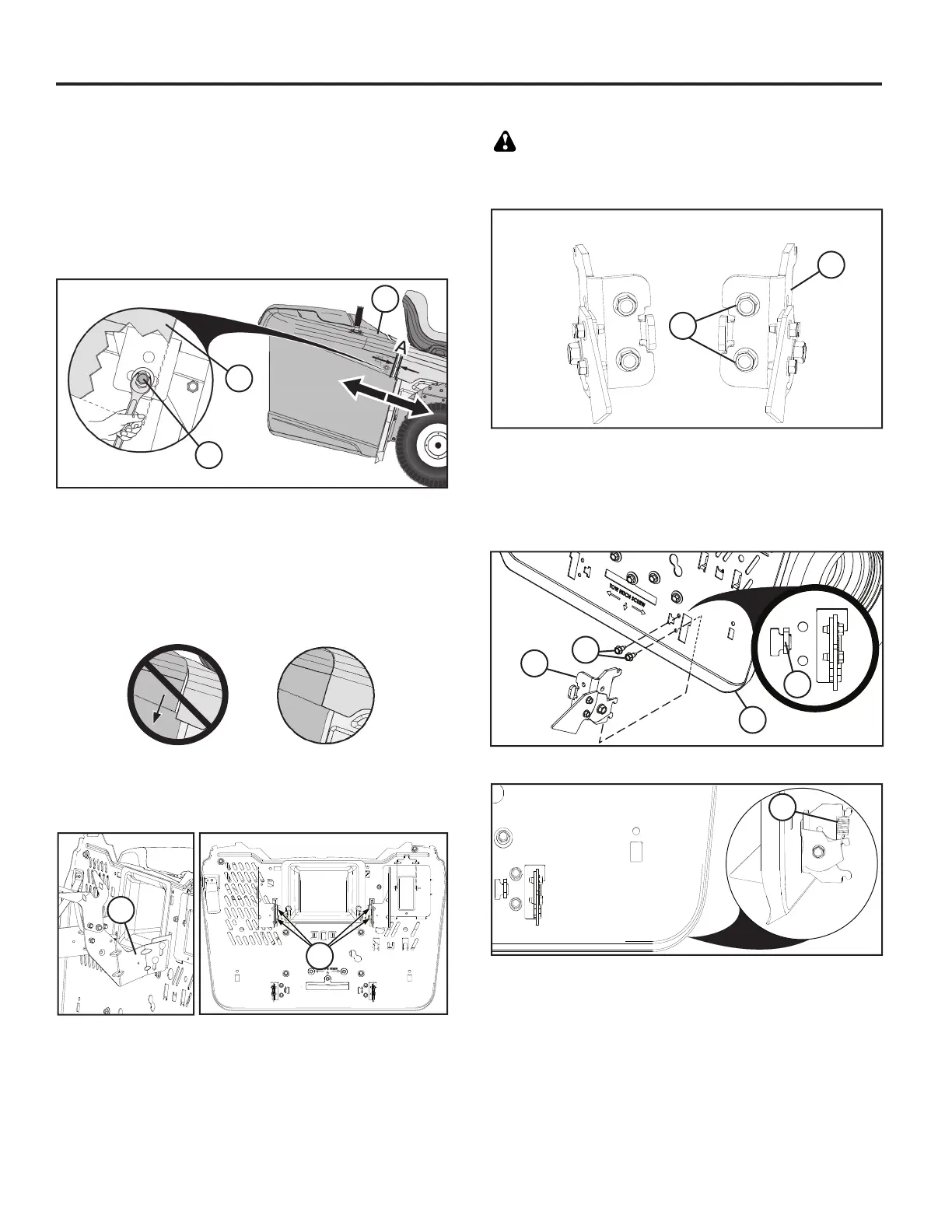

TO ADJUST BAGGER (if needed)
HORIZONTAL ADJUSTMENT
The tractor comes from the factory with the bagger assembly preset
in a fixed position. If necessary, this position can be adjusted to
maintain a consistent gap (A) between the fender and the bag-
ger assembly top. An ideal gap is approximately 0.25” (6 mm).
• Insert 1/2" (13mm) wrench under bagger assembly top (1).
Do NOT remove; ONLY loosen adjustment bolt (2). Repeat
on opposite side.
• Slide bagger assembly into proper position.
1
1
2
B
4
3
TO INSTALL BAGGER LATCH ASSEMBLY
WARNING: Shut off tractor engine and engage parking
brake before installing the bagger latch assemblies.
• Remove two screws (1) on right-hand bagger latch assembly
(2).
• Install right-hand bagger latch assembly (3) through opening
in backplate (4).
• Position right-hand bagger latch assembly on backplate with
tab (5) in the slot on backplate and align with mounting hole.
• Using the two perviously removed screws (6), attach right-
hand bagger latch assembly to the backplate and tighten
firmly.
• Install bagger latch extension spring (7) as shown.
• Repeat steps for left-hand bagger latch assembly.
1
2
Right-Hand Bagger
Latch Assembly
Left-Hand Bagger
Latch Assembly
7
4
6
5
3
