72
6

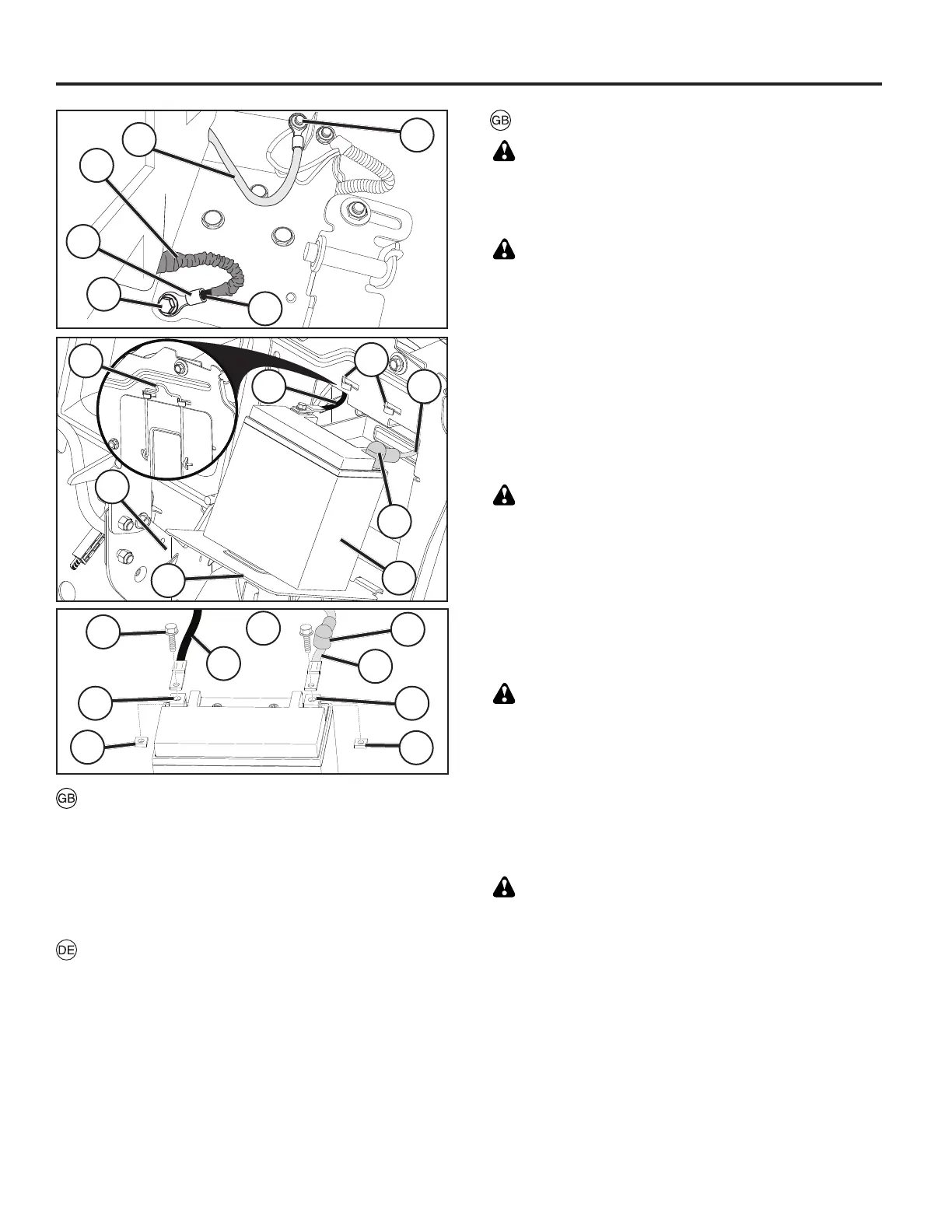

8. Battery door
9. Battery door holders
10. Square nut
11. Bolt
12. BLACK Battery Cable (-)
13. Battery terminal
14. Red terminal boot
15. Bagger Support Bracket
1. Battery
2. Ground screw (Silver)
3. Protective sleeve
4. Terminal end
5. RED Battery Cable (+)
6. Solenoid stud
7. Battery door latch
(Shown in closed position)
BATTERY MAINTENANCE
WARNING: Not following instructions can result in sparks,
arcing, or open flames which could lead to serious
personal injury, or property damage. Before handling
battery (1), re move metal brace lets, wrist watch bands,
rings, etc. from your person. Touch ing these items to
battery could result in burns.
WARNING: Ensure tractor ignition switch is in the OFF
position and ignition key is REMOVED.
REMOVAL
• Locate silver ground screw (2) on right side plate of tractor,
above right rear tire.
• Using a ½ inch (13mm) wrench or socket, completely
remove the silver ground screw (2) and set aside.
• Pull protective sleeve (3) over exposed terminal end (4)
COMPLETELY covering terminal end.
• Using a 7/16 inch (11mm) wrench or socket, remove
larger RED (+) battery cable (5) from solenoid stud (6).
DO NOT REMOVE smaller red wire from wiring harness
on solenoid stud.
• From the rear of the tractor, open battery door (8) and let
it rest on the right hand bagger support bracket (15).
WARNING: Before pulling battery out of the battery
compartment, ensure the red terminal boot (14) is
covering the positive terminal (+).
• Pull battery (1) with both cables attached out of battery
compartment and rest on battery door (8).
MAINTENANCE
• Slide red teminal boot (14) up positive cable (+) to expose
the positive terminal (+).
• Remove square nuts (10), bolts (11) and battery cables.
• Clean / remove / replace battery (1) as needed.
INSTALLATION
WARNING: Positive terminal (+) with red terminal boot
(14) must be con nect ed FIRST to prevent sparks from
accidental ground ing.
NOTE: BLACK cable (12) should have protective sleeve (3)
completely covering terminal end (4).
• Connect the RED battery cable (5) to positive battery
terminal (+) and then the BLACK cable (12) to negative
battery terminal (-) using square nuts (10) and bolts (11)
previously removed. Tighten securely.
• Grease battery terminals (13) to prevent cor ro sion.
• Slide red terminal boot completey over the positive ter-
minal (+).
WARNING: Before putting battery into the battery com-
partment, ensure the red terminal boot (14) is covering
the positive battery terminal (+).
• Place battery into battery compartment.
• Using a 7/16 inch (11mm) wrench or socket, install larger
RED (+) battery cable (5) to solenoid stud (6). Tighten
securely.
• Pull protective sleeve (3) up to expose terminal end (4).
• Hand-tighten BLACK (-) battery cable (12) to the tractor
frame above the right rear tire using silver ground screw
(2) previoulsy removed.
• Using a ½ inch (13mm) wrench or socket, tighten the
silver ground screw (2) to the tractor frame.
• Close battery door (8) and secure using battery door latch
(7) and battery door holders (9).
CAUTION: Battery door stand (7) must be secured in battery
door holders (9) above battery door (8) when in the closed
position.
1. Batterie
2. Masseschraube (Silber)
3. Schutzmanschette
4. Polende
5. ROTES Batteriekabel (+)
6. Stehbolzen des
Anlassmagnetschalters
7. Batterieabdeckungs-
verriegelung (in der
geschlossenen Position
abgebildet)
8. Batterieabdeckung
9. Batterieabdeckungshalter
10. Vierkantmutter
11. Schraube
12. SCHWARZES Kabel (-)
13. Batteriepol
14. Roter Batteriepolschutz
15. Stützhalterung für
Grasfänger
11
14
5
11
12
13 13
10
10
3
4
2
12
5
6
15
7
1
512
9
8
14
