SETTINGS AND ADJUSTMENTS
Part. N. 8000 B0148 (02-2008) D.21
A
4
2
3

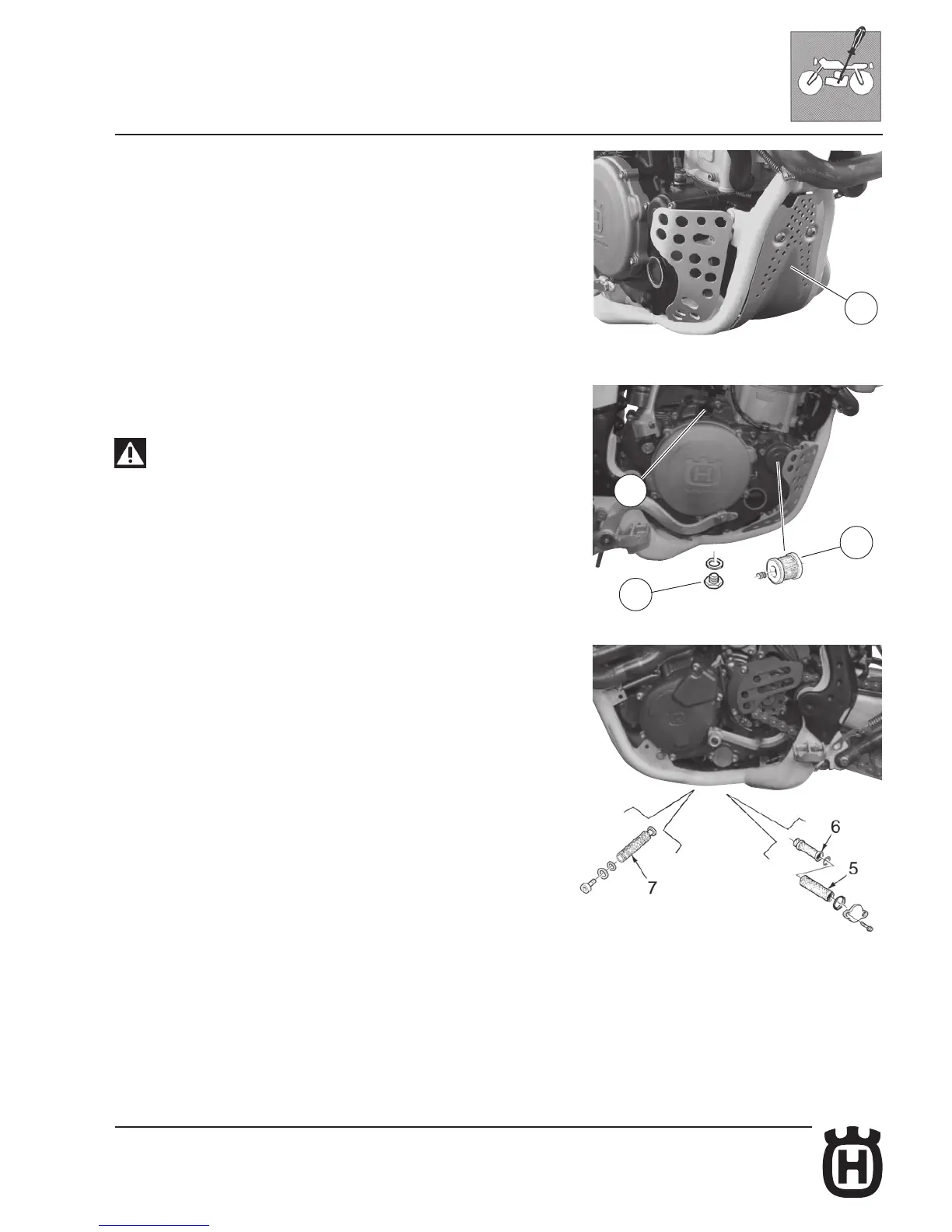

Engine oil replacement and bag filters-cartridge filter cleaning or replace-
ment
Drain the oil with WARM ENGINE; proceed as follows:
- remove oil filler cap (2);
- even if not necessary, remove the engine guard (A);
- place an oil drain pan under the engine block;
- remove the oil drain cap (3), drain the used oil completely then clean the mag-
net on the cap;
- remove the three filters (5), (6) and (7) on the L.H. side of the engine, check O-
Rings for wear then clean filters with fuel.
Reassemble using the reverse procedure.
In order to replace the filter cartridge (4), unscrew the three fastening screws
then the filter cartridge cover;
- after filters replacement, reassemble the drain cap (3), the engine guard (A)
then pour the recommended oil quantity.
Reassemble, on engine L.H. side, filter (5-4) (8 Nm-0,8 Kgm-5.8 ft/lb) e (6) (25
Nm-2,55 Kgm-18.4 ft/lb) ed inferiormente il tappo (2) scarico olio (25 Nm-2,55
Kgm-18.4 ft/lb).
Be careful not to touch hot engine oil.
