F.24 Part. no. 8000 H1489 (10-2009)

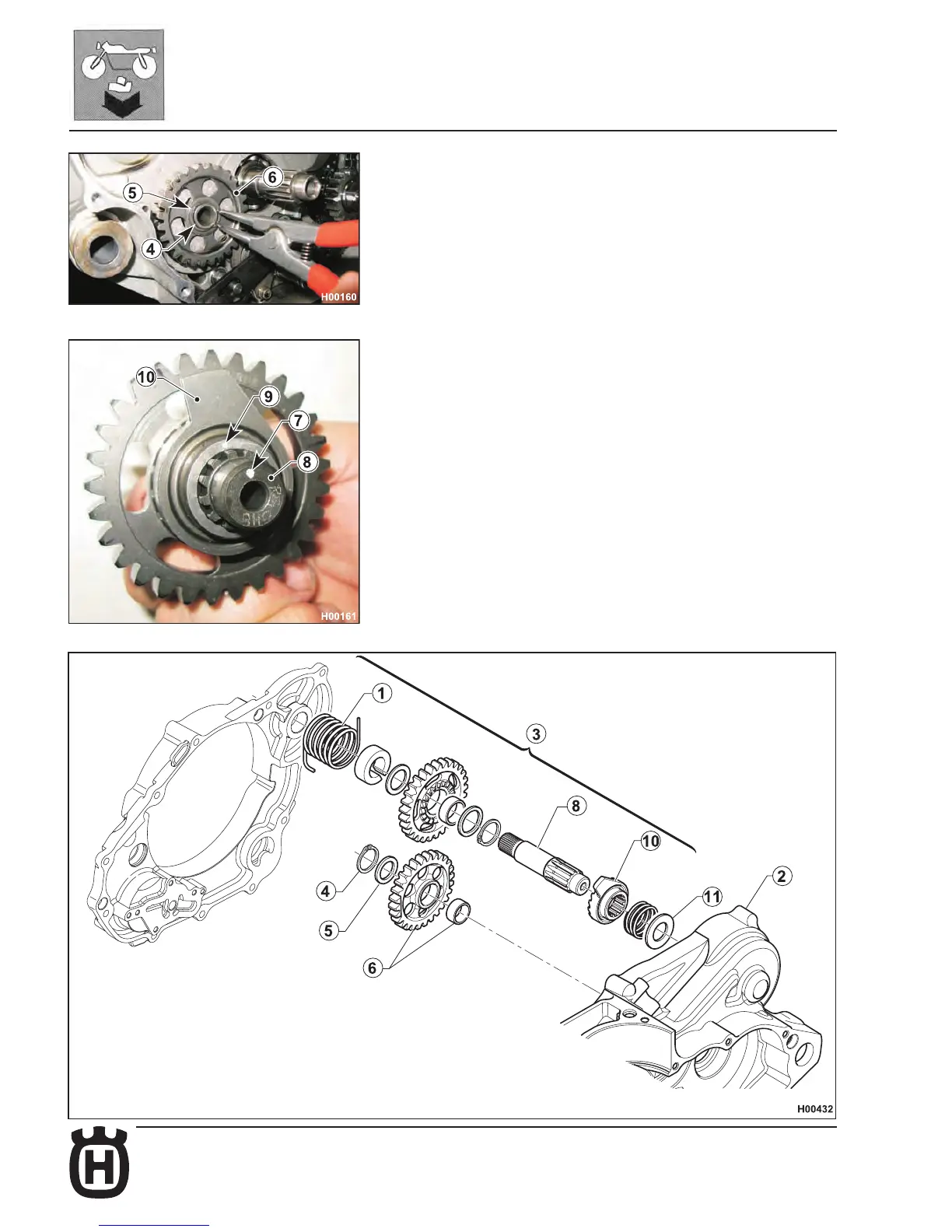

ENGINE DISASSEMBLY

- Remove the snap ring (4), the washer (5) and the timing drive gear (6).

- Disassemble the shaft as shown in the diagram. On assembly, make sure that

the dot (7) on shaft end (8) and the dot (9) on the ratchet (10) are aligned.
