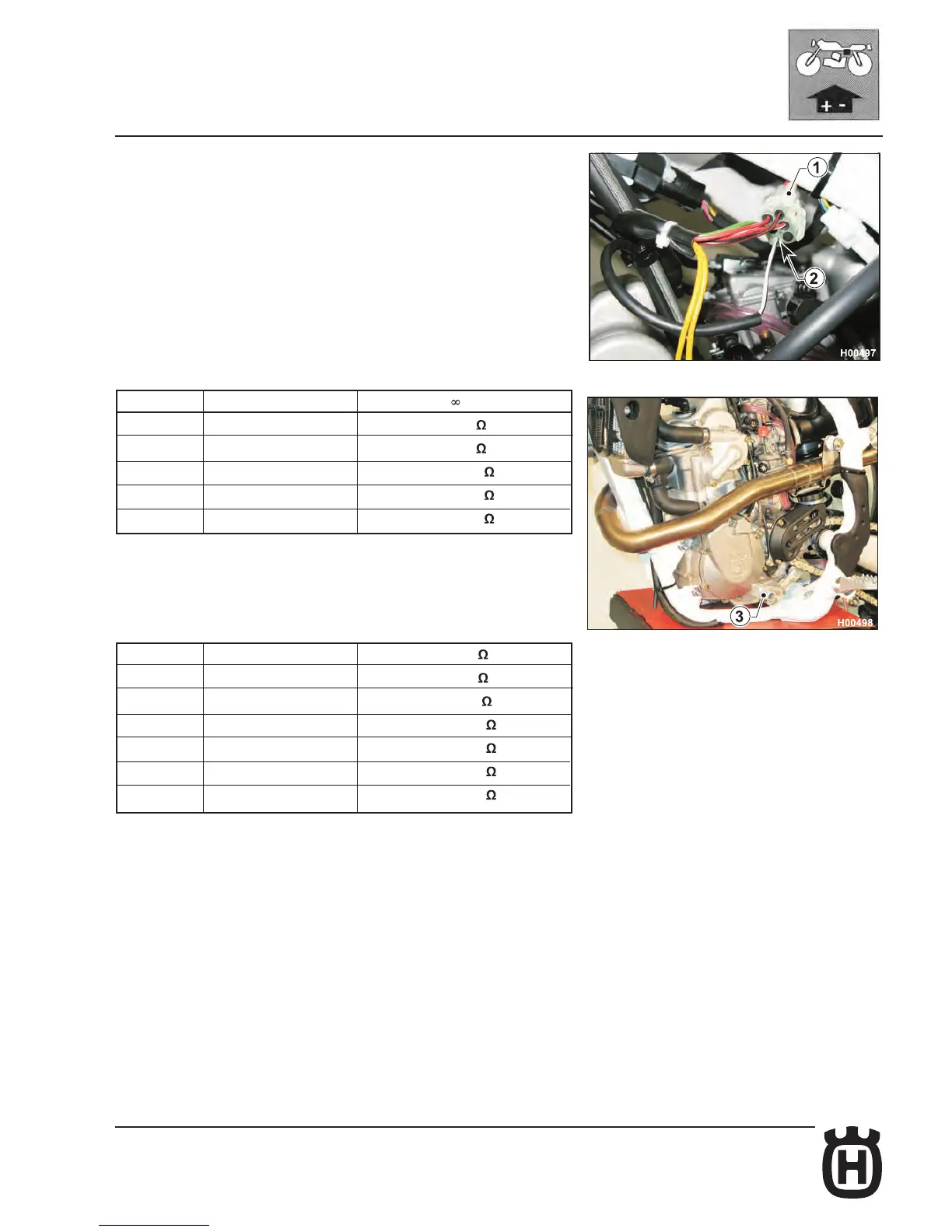

Gear position sensor inspection (GPS: Gear Position Sensor)
Set the meter to the “Ohm” scale and disconnect the six-way connector (1) of the
alternator from the main wiring harness (the gear sensor wiring is secured to the
alternator wiring with a clip). Touch one meter probe to engine ground and insert
the other probe into the connector hole for the WHITE/BLACK gear sensor wire
(2). The lever (3) is placed on the left-hand side of the engine. After each gear
shift, it automatically returns to the horizontal position. First gear is engaged by
pushing the lever downwards; for other gears push it upwards. Check the read-
ings provided in the relevant table.
TC
A NEUTRAL (open circuit)
B 1st 556-568
C 2nd 817-833
D 3rd 1.48-1.51 K
E 4th 2.71-2.77 K
F 5th 6.75-6.88 K
TE - TXC
A NEUTRAL 312-319
B 1st 725-739
C 2nd 1,31-1,34
D 3rd 2.18-2.23 K
E 4th 3.61-3.68 K
F 5th 6.58-6.71 K
G 6th 15.2-15.5 K
