Husqvarna TE 250 2010 Repair Manual

M.15Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

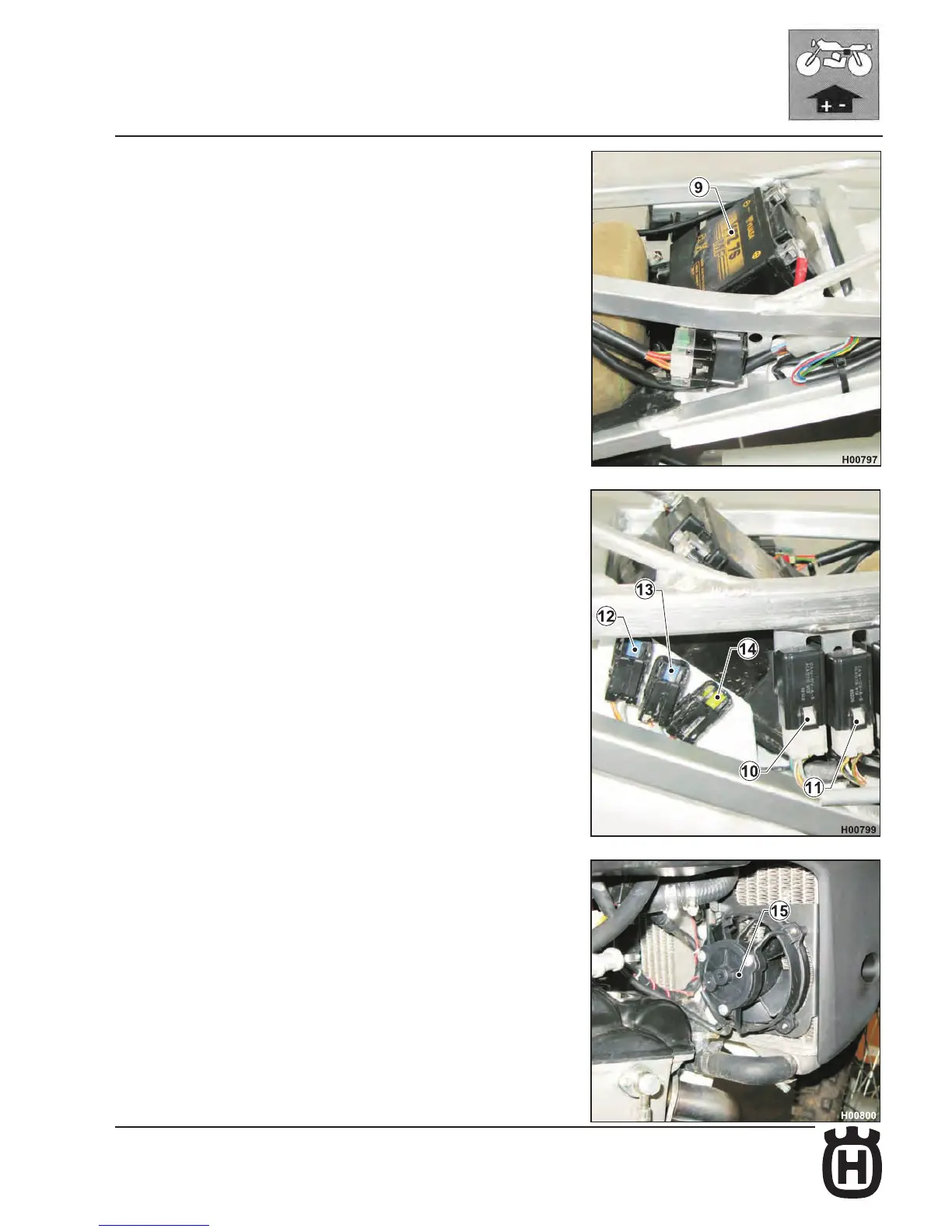

The electrical system includes the following elements:
- 12V-7Ah battery (9) under the saddle;
- Relay (10): coil, injection system, fuel pump, on right side of rear chassis;
- Relay (11): solenoid valve, on right side of rear chassis;
- Fuses (12), (13), (14): on rear mudguard, right side:
Fuse 12 (15A): coil, injection system, fuel pump;
Fuse 13 (15A): control unit;
Fuse 14 (20A): electric fan.
- Electric fan (15);
