FUSES
Please note that a fuse malfunction can adversely affect
motorcycle operation. To gain access to fuses, proceed
as follows:

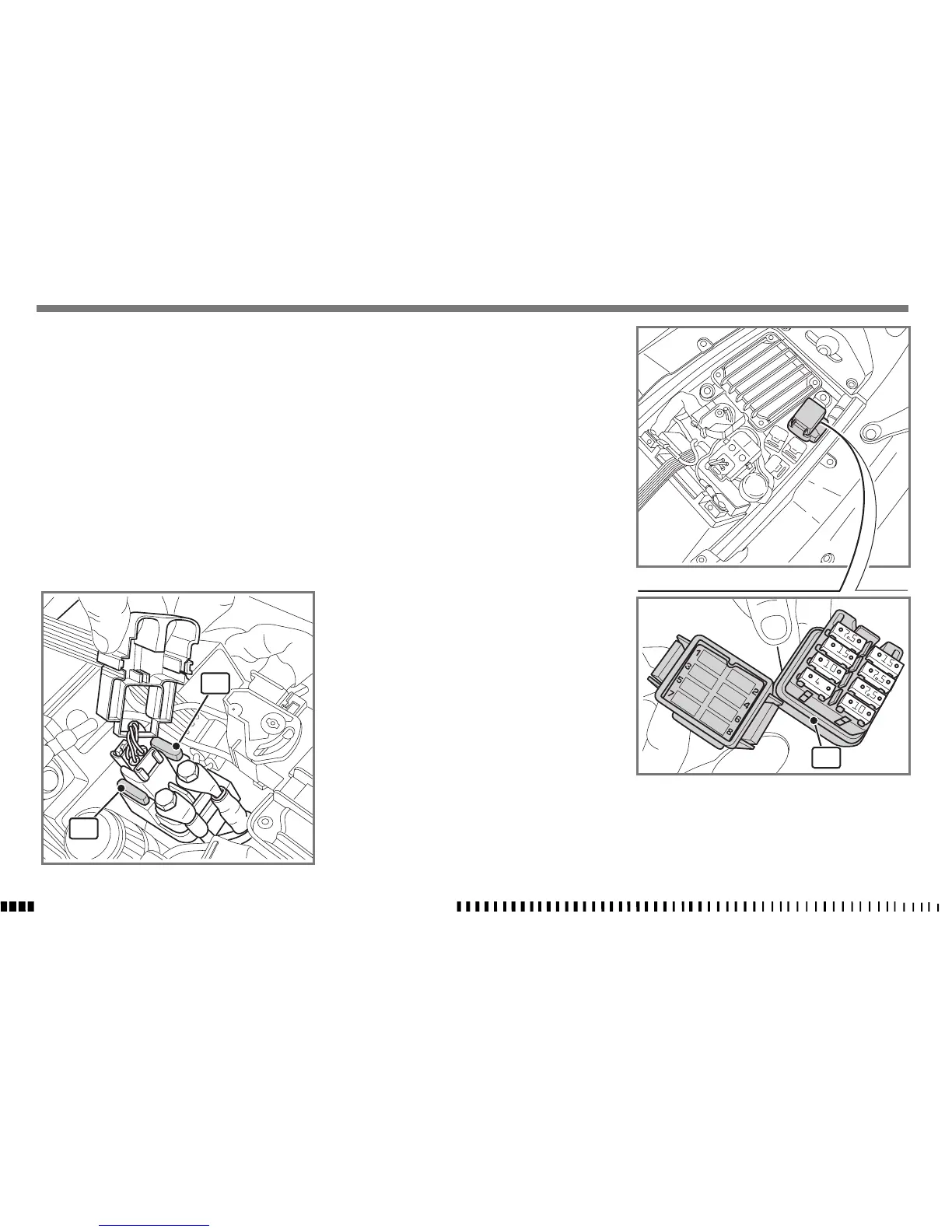

General fuse (1) - 30A
Two fuses positioned in the rear part of the motorcycle
on the solenoid starter, one of which is spare.
1= General fuse.
2= Spare fuse.
Auxiliary fuses (3)
Located at the rear of the motorcycle under the saddle.
Fuse 1 = 7.5 A
Instrument panel
Turning indicators
Engine control
Solenoid starter
Diagnosis socket
Fuse 2 = 15 A
Horn
Number plate light
Headlight (high beam and low beam)
Stop light
Accessories socket
Fuse 3 = 15 A
Ignition
Injectors
Fuel pump
Fuse 4 = 7.5 A
Lambda sensor
Canister washing valve
Fuse 5 = 10 A
Radiator fan
Fuse 6 = 7.5 A
Instrument panel
Antitheft
Diagnosis socket
Fuse 7 = 4 A
Parking lights
ABS (where fitted)
Fuse 8 = 10 A
Engine control
To avoid possible short circuits, set the ignition switch to
OFF before servicing the fuses.
• Never replace a fuse with another
fuse with a different rating.

Husqvarna TR650 STRADA Specifications

General

Displacement	652 cc
Bore x Stroke	100 mm x 83 mm
Fuel System	Electronic fuel injection
Transmission	6-speed
Seat Height	860 mm
Dry Weight	168 kg
Starter	Electric
Final Drive	Chain
Cooling System	Liquid cooled
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	110/80 R19
Power	58 hp
Torque	60 Nm
Engine Type	Single cylinder, 4-stroke
