37

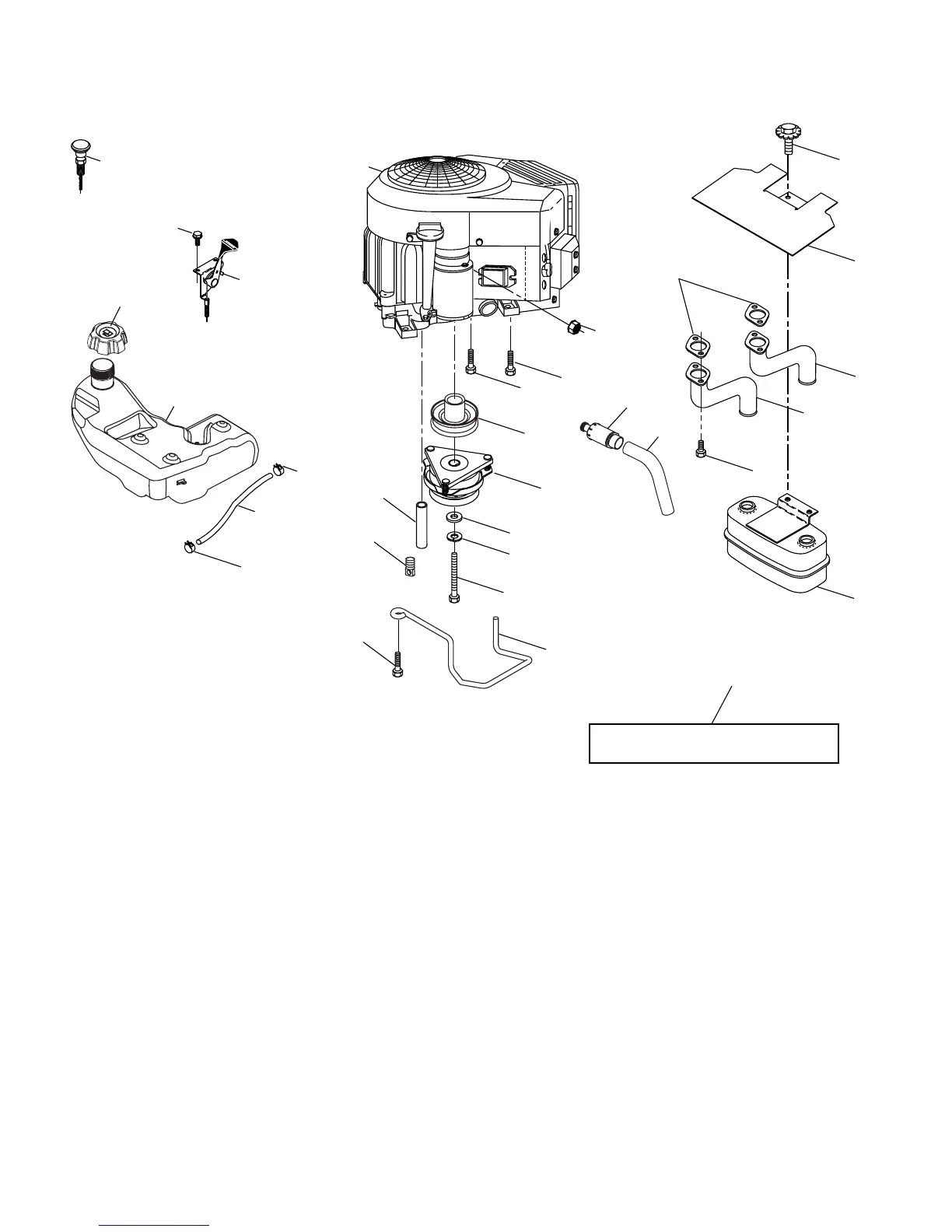

TRACTOR - MODEL NO. 917.279200 (YTH2448T)
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Engine Briggs Model No. 445677
0413-E1 (See Breakdown)
2 532 14 97-23 Muffl er
9 532 19 43-19 Keeper Belt Engine
11 532 17 93-34 Clutch Electric
12 532 40 29-80 Pulley Engine
15 532 19 34-99 Tank Fuel 4.0
18 532 19 42-67 Cap Asm
20 532 17 83-85 Control Throttle
21 532 19 16-11 Screw 10 x 3/4 Single Lead Hex
22 532 19 15-96 Control Choke
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-In
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
KEY PART
NO. NO. DESCRIPTION
43 532 15 02-80 Bolt Hex 7/16-20 x 4-1/4 Gr. 5
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 14 66-29 Shield Heat Muffl er
69 532 16 53-91 Gasket
70 532 15 99-55 Tube Exhaust LH
71 532 16 05-89 Tube Exhaust RH
79 532 18 39-06 Screw Socket Head 5/16-18 x 1
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 06 06-24 Screw 3/8-16 x 1/2
87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
91 532 18 74-95 Bushing
1
84
12
11
41
42
43
29
SPARK ARRESTER KIT
84
45
18
15
37
28
37
22
21
20
62
71
70
79
69
87
2
engine-tex_10-vgt
81
82
9
90
31
91
To Next Page
