SERVICE AND ADJUSTMENTS
CAUTION: After rear lift links are dis-
connected, the attachment lift lever will
be spring loaded. Have a tight grip on
lift lever when changing position of
the lever.
• From right side of mower, disconnect anti-sway bar (S)
from right rear mower bracket (D) - remove retainer
spring and washer and pull mower toward you until
the bar falls from the hole in bracket.
• Turn tractor steering wheel to the left as far as it will
go.
• Slide mower out from under right side of tractor.

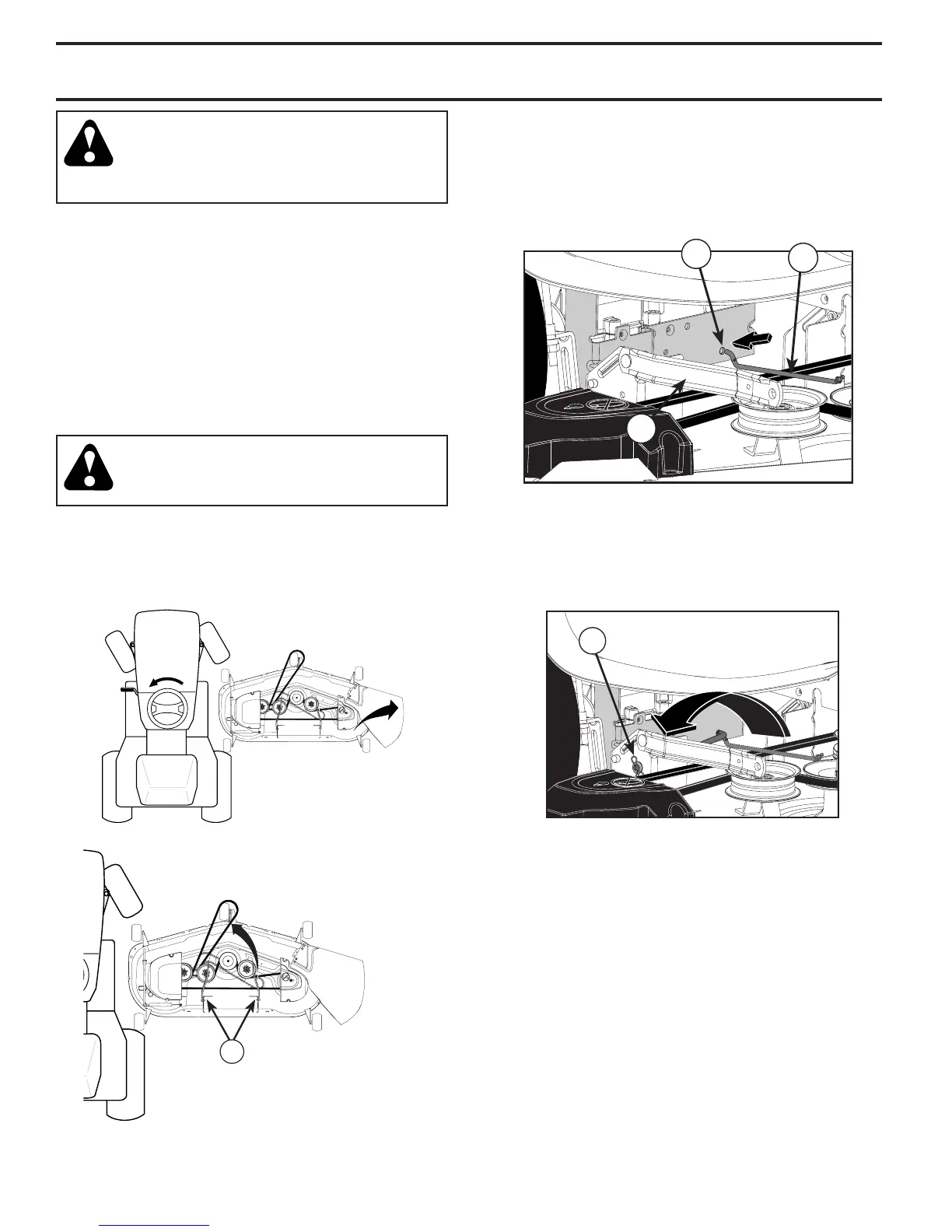

TO INSTALL MOWER (See Figs. 18-24)
Be sure tractor is on level surface and engage park ing
brake.
• Lower attachment lift lever to it's lowest position.
CAUTION: Lift lever is spring loaded.
Have a tight grip on lift lever, lower it
slowly and engage in lowest position.
• Turn steering wheel to the left as far as it will go and
position mower on right side of tractor with defl ector
shield to the right.
NOTE: Be sure mower side suspension arms (A) are pointing
forward before sliding mower under tractor.
• Slide mower under tractor until it is centered under
tractor.
• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO
CHASSIS - Position hole in arm over pin (B) on outside
of tractor chassis and secure with washer and retainer
spring.
• Repeat on opposite side of tractor.
02965
0
20
51
A
02965
- Pivot bar towards you and insert other end of bar
into hole in rear mower bracket (D). Move mower as
needed to insert bar.
- Secure with washer and retainer spring as shown
using small 5/16 retainer spring.
NOTE: Be sure mower side suspension arms (A) are point-
ing forward before sliding mower under tractor.
• Slide mower under tractor until it is centered under
tractor.
• FIRST INSTALL ANTI-SWAY BAR (S).
- From right side of mower, insert anti-sway bar into
hole in transmission bracket (T).
02995
S
T
A
02996
D
FIG. 18
FIG. 19
