39
TRACTOR - MODEL NO. 917.279200 (YTH2448T)

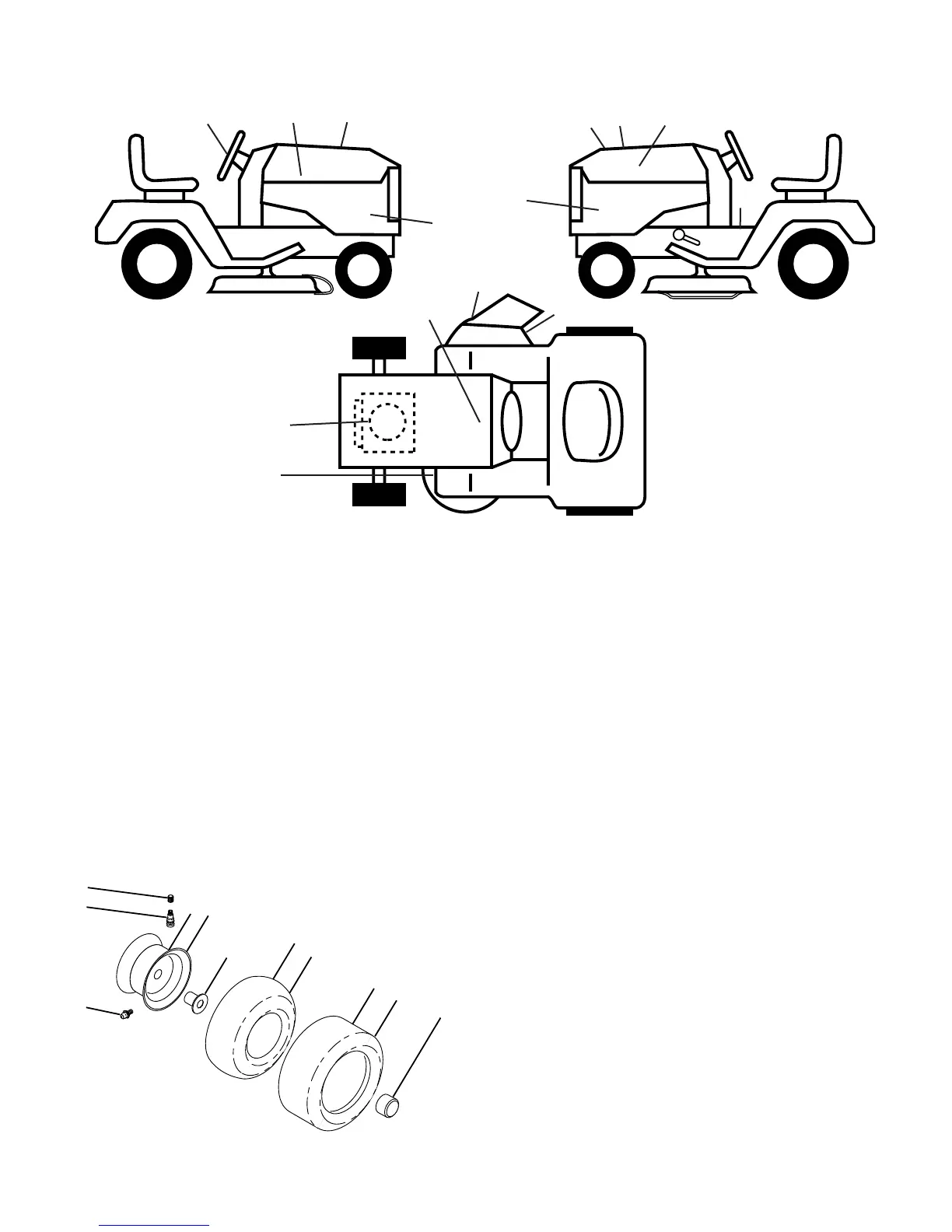

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17
16
16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 13 83-36 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Ser vice Item Only)
5 532 10 62-22 Tire, Front
6 532 00 02-78 Fitting, Grease (Front Wheel Only)
7 532 00 90-40 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 13 84-68 Tire, Rear
10 532 00 71-54 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
14
5
2
1 532 40 21-04 Decal, Operator's
2 532 40 21-28 Decal, Hood Insert
3 532 17 05-63 Decal, Warning
5 532 17 85-02 Decal, Caution
6 532 19 16-52 Decal, Eng. HP
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dnge/Poi
13 532 40 44-84 Decal, Steering Whl
1
14 532 40 14-07 Decal, Panel Side
15 532 18 09-41 Decal, Cust. Resp.
16 532 40 28-32 Decal, Hood Logo
17 532 40 16-95 Decal, Replacement
- - 532 16 69-60 Decal, Bypass
- - 532 40 17-71 Pad, Footrest, LH
- - 532 40 37-73 Pad, Footrest, RH
- - 532 40 34-51 Manual, Owner's (Eng)
- - 532 40 34-52 Manual, Owner's (Fr)
14
13
9
6
3
8
15
