10 InstallatIon
PN_3155541_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com

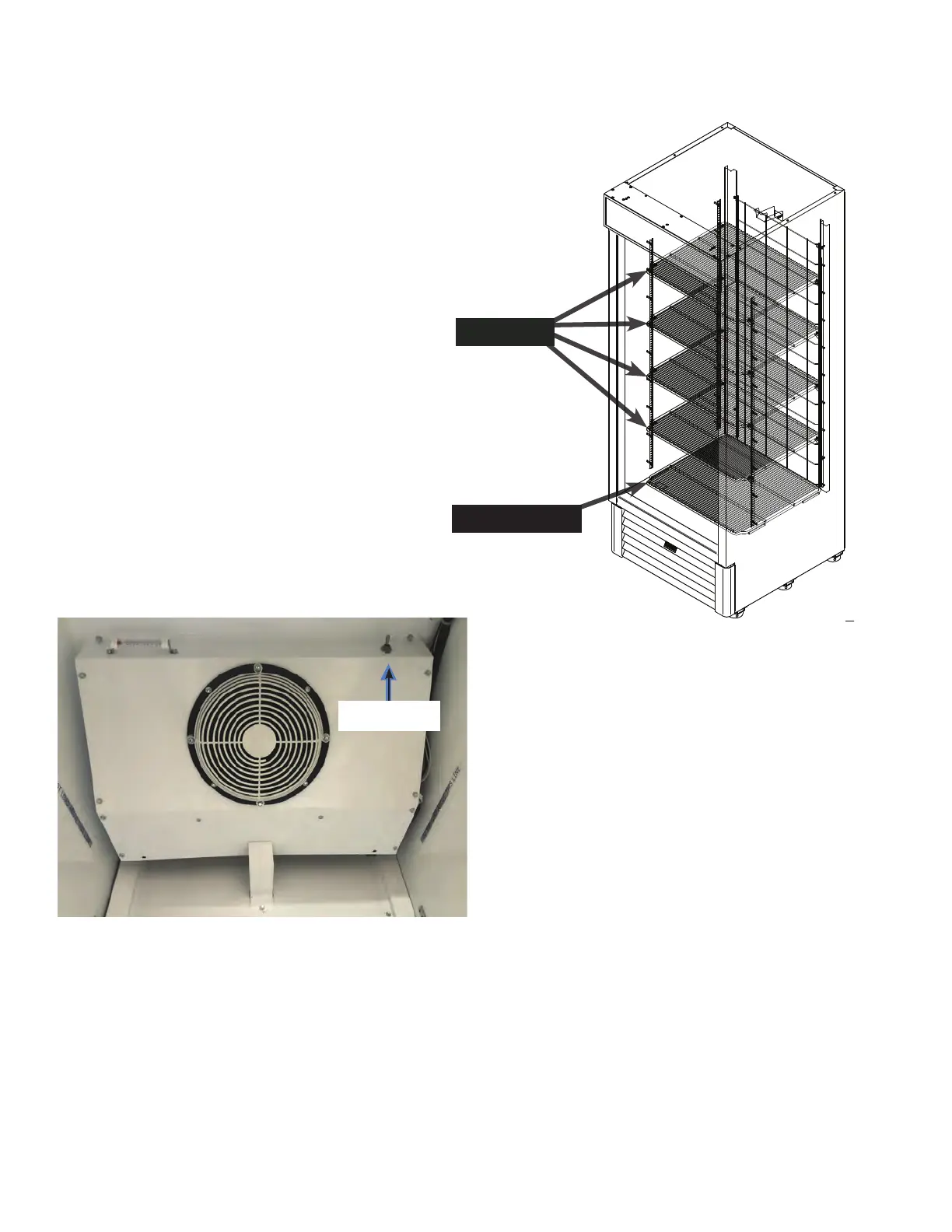

SHELF AND WIRE PRODUCT STOP
INSTALLATION
After the cabinet is leveled, the shelves may
be installed. Wire shelves are adjustable.
Shelf spacing can be adjusted by positioning
the shelf clips according to individual loading
requirements.
VRL merchandisers have four movable wire
shelves and one bottom wire shelf per door
as a standard option. Extra shelves can be
ordered as optional kits.
LAMPS
The light switch for the lamps is located at the
top of the fan plenum on the righthand side as
shown below. The switch controls the display
lighting and interior lighting.
Shelves
Bottom Shelf
11/29/2021
Light Switch
Light Switch
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF -
K
SHEET 15 OF 15
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
(1-door model shown) light switch location is
in similar location for all models - righthand
side of the fan plenum
